Signal Strength This bar shows the signal strength level. The higher percentage
shown in the bar, the more radio signal been received by the card.
This indicator helps to find the proper position of the wireless
device for quality network operation.
Reading the Link Status Page and Obtaining the Strongest
Connection

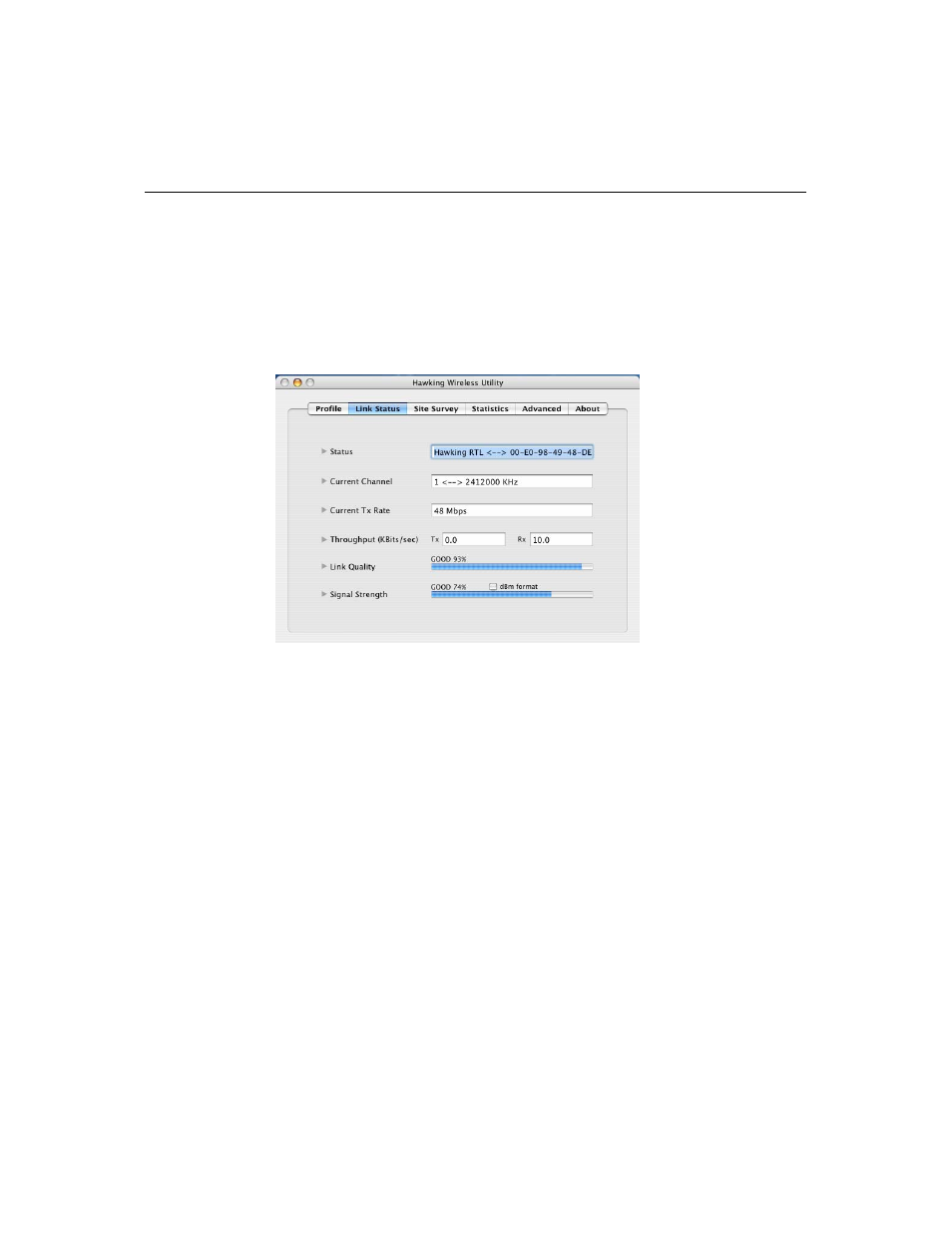

The Link Status page gives you information regarding your current wireless channel,
transmit rate (speed) and link/signal quality. You will use this utility to figure out which
antenna position results in the best performance and connection.
1) First you must determine where the location of your Wireless Access Point is within
your network.
2) Position the directional antenna towards the location of the Access Point.
3) While viewing your Link Status utility, rotate the antenna clockwise and
counter-clockwise slowly to figure out which position gives you the highest Link
Quality and Signal Strength. Once you have determined which position gives you
the best signal, leave the antenna in that orientation
