ASSEMBL Y
Fitting the combination guar d, grass
blade and grass cutter

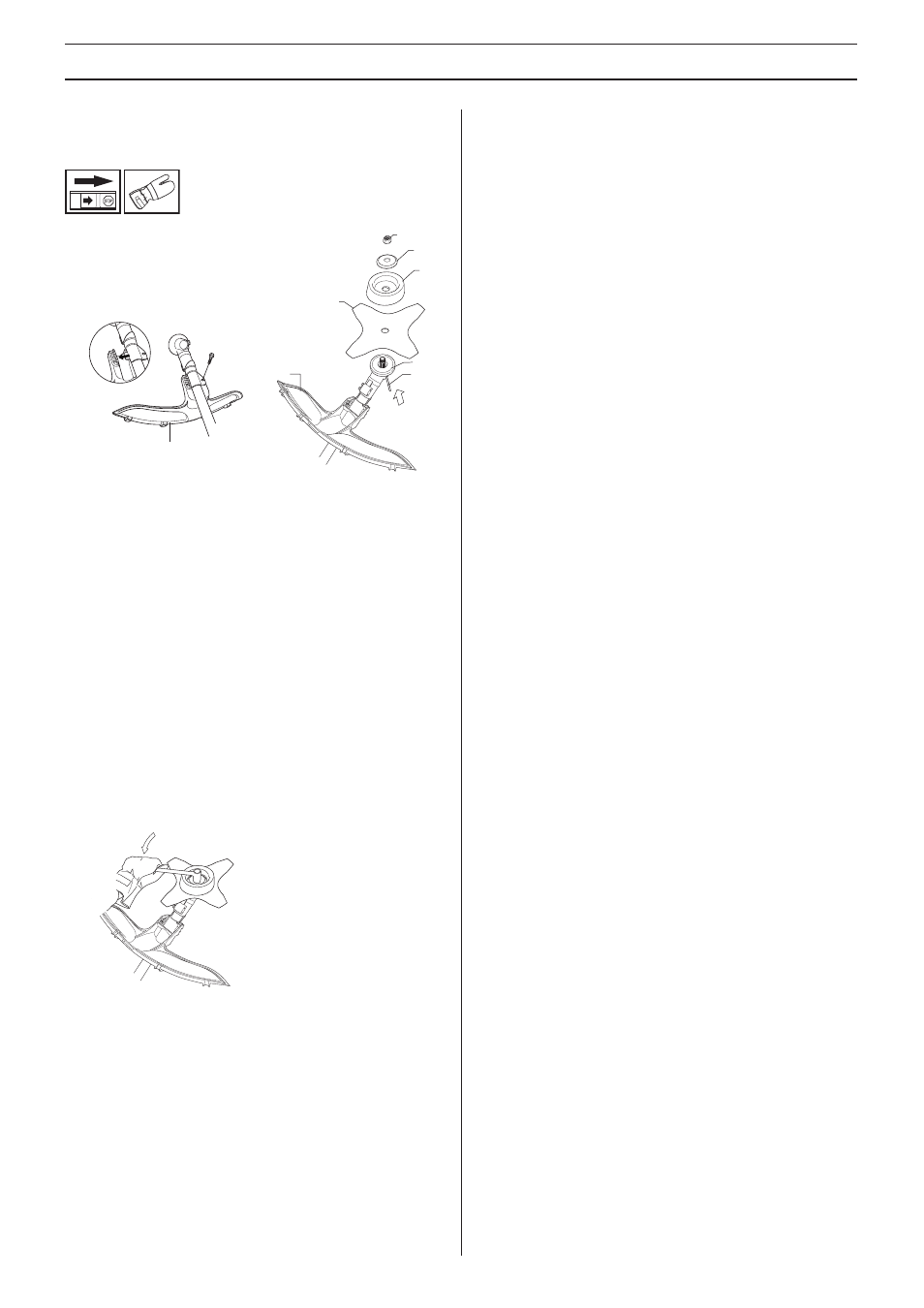

• Hook the guard onto the fitting on the shaft and secure it
with the bolt.
CAUTION! Ensure that the guard extension
is removed.
Use the recommended blade guard. See the Technical
data section.
• Fit the drive disc (B) on the output shaft.
• Turn the blade shaft until one of the holes in the drive disc
aligns with the corresponding hole in the gear housing.
• Insert the locking pin (C) in the hole to lock the shaft.
• Place the blade (D), support cup (E) and support flange
(F) on the output shaft.
• Fit the nut (G). The nut must be tightened to a torque of
35-50 Nm (3.5-5 kpm). Use the socket spanner in the tool
kit. Hold the shaft of the spanner as close to the blade
guard as possible. To tighten the nut, turn the spanner in
the opposite direction to the direction of rotation (Caution!
left-hand thread).
G
F
D
B
C A
E
A
