Parts and Functions
Front Panel
Terminal Wells
The base contains 4 terminals wells. Each well
• Holds and charges the main battery pack of one Dolphin terminal.
• Contains the companion to the I/O connector on the bottom panel of Dolphin terminals.
• Has two LEDs on the front: the Dock LED and the Charge LED.
Dock LED
Each terminal well displays a Dock LED on the front that lights solid green when a terminal is
properly seated, which means that the terminal and the base are connected.
Charge LEDs
Each terminal well displays a Charge LED on the front that lights green to indicate charging.
For details, see
Charging Terminals on page 13-4.
Back Panel
Power Supply Connector
This connector receives input from the power adapter. Plug the power connector cable from
the power adapter into this connector. There is no ON/OFF switch on the back panel of the
base. The power switch is on the power adapter.

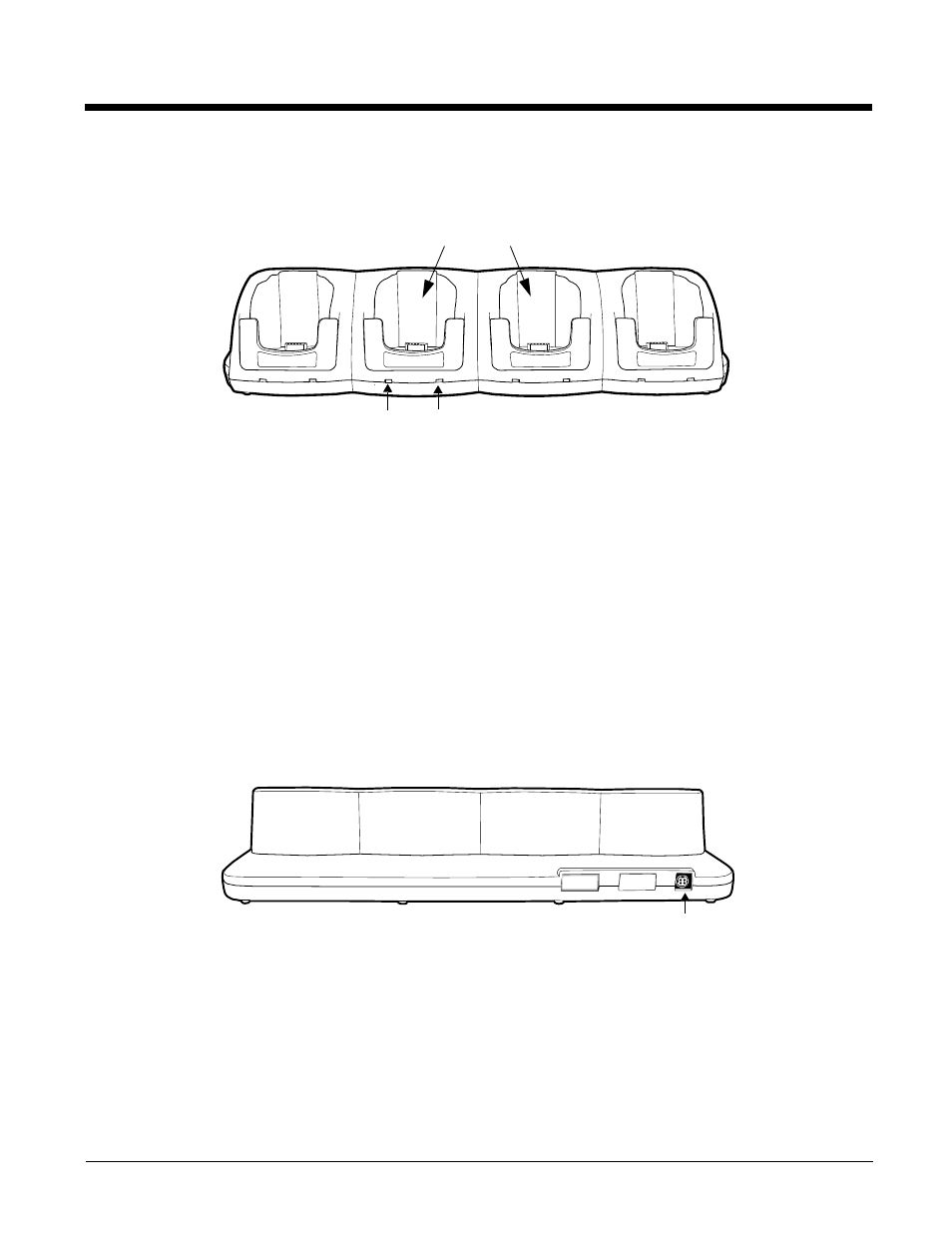

Charge
LED Dock
LED
Terminal Wells
Power Supply Connector
