12 - 8

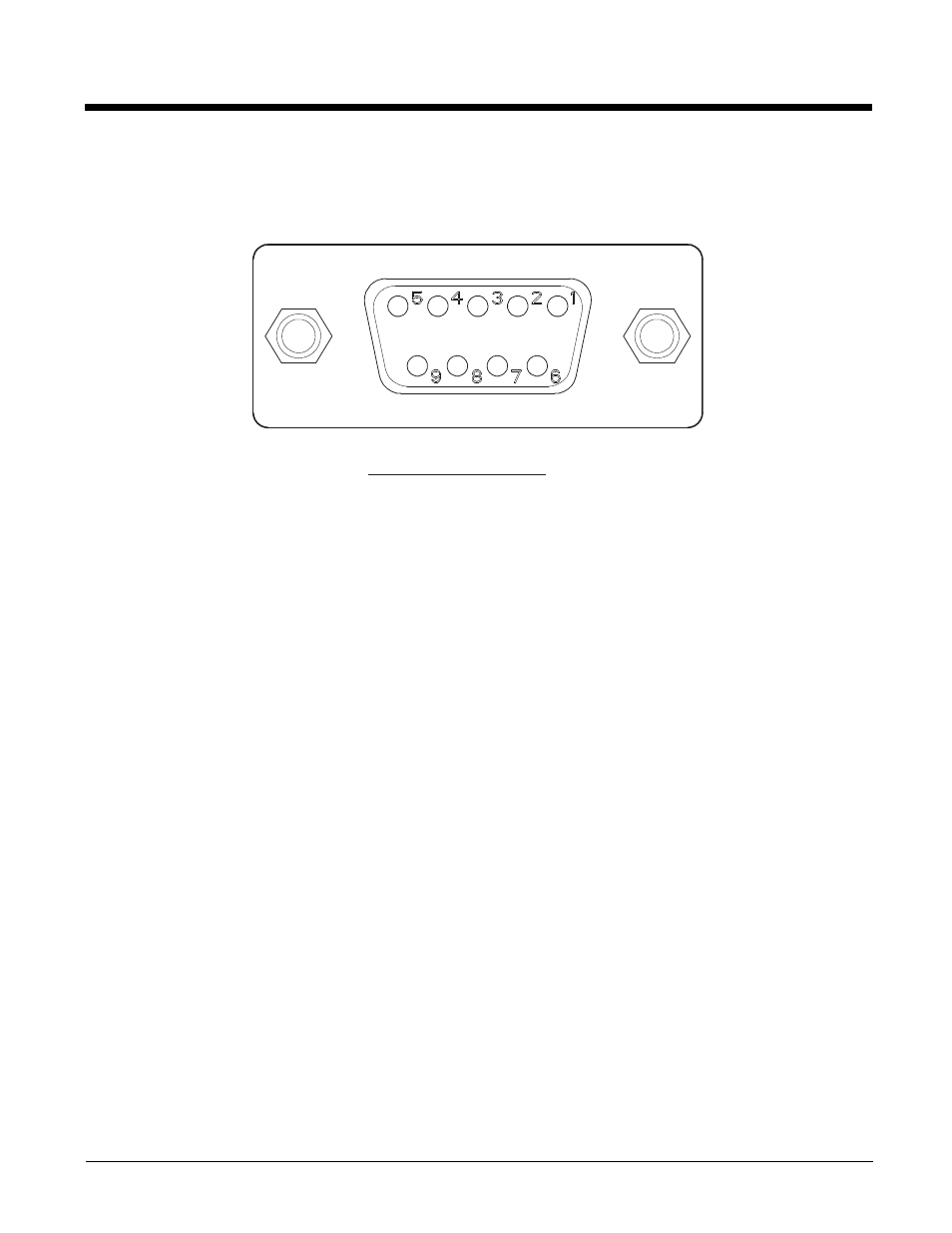

Serial Connector
The base connector is straight to the printed circuit board (PCB). The ninth pin sends 500mA at 5V power
out. This can power a peripheral device, such as a mobile printer, as long as that peripheral device can
accept 500mA at 5V.
Note:
Signals referenced are for a DTE device.
Pin #
Description
1
Internal Jumper to Pin 6
2
TXD
3
RXD
4
DSR
5
GND
6
DTR
7
CTS
8
RTS
9
5 VOLT OUT
