Appliance Setup
A. Remove Packaging Materials
Face parts are shipped in tube on glass protector. To
remove glass protector unlatch top glass latches and
remove glass protector.
B. Remove Glass Assembly
WARNING! Risk of Asphyxiation! Handle fi xed glass
assembly with care. Inspect the gasket to ensure it is
undamaged and inspect the glass for cracks, chips or
scratches.
• DO NOT strike, slam or scratch glass.
• DO NOT operate fi replace with glass removed, cracked,
broken or scratched.
• Replace as a complete assembly.
C. Logs
Logs are factory installed.
• Pull the four glass assembly latches out of the groove
on the glass frame. See Figure 14.3
Face Parts Inside
Glass Latches

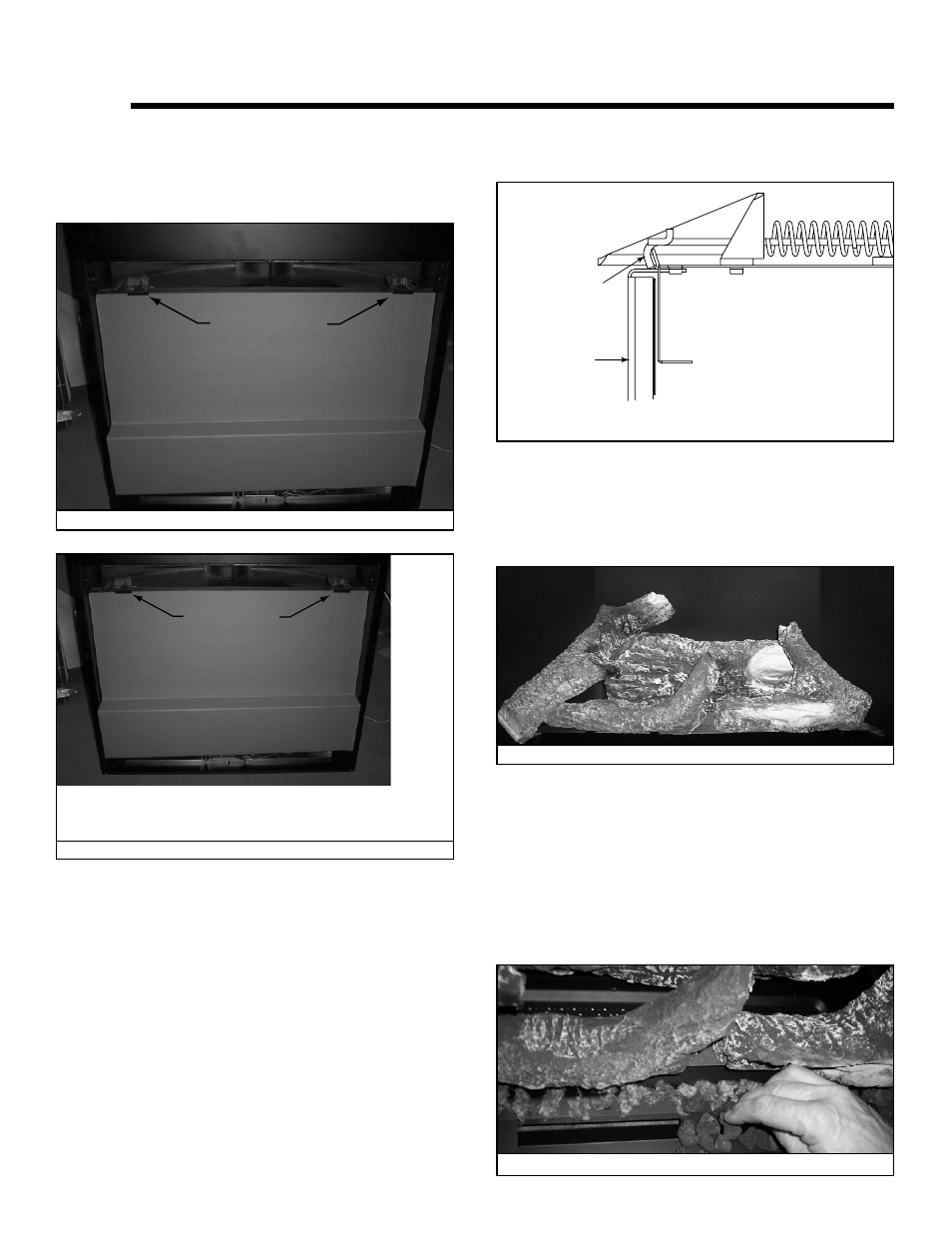

Figure 14.1 Face Parts Location
Latches
(both bottom
and top)
Glass
Assembly
Figure 14.3 Glass Assembly
• Remove the glass panel from the appliance.
• Lay aside on a nonabrasive surface.
Figure 14.4 Log Set
Face Parts Inside
Glass Latches
Figure 14.2 Parts Identifi cation
D. Place Lava Rock, Rockwool
Figure 14.5 Placement of Lava Rock
• Place the lava rock in front of air slots and to the areas
left and right of burner pan. See Figure 14.5.
WARNING! Risk of Explosion! Follow rockwool place-
ment instructions. DO NOT place rockwool directly over
burner ports. Replace rockwool material annually. Improp-
erly placed rockwool interferes with proper burner opera-
tion.
