nomenclature .........................................................................................................................................................................................................2
Features & Benefits ...............................................................................................................................................................................................3
Performance Data & Specifications
Air Defrost ............................................................................................................................................................................................................4-5
Electric Defrost ...................................................................................................................................................................................................6-7
Hot Gas Defrost ..................................................................................................................................................................................................8-9
Physical Data ..................................................................................................................................................................................................10-11
Dimensional Data ................................................................................................................................................................................................12
Replacement Parts by InterLink™ ..................................................................................................................................................................13
Standard nozzle Selection ...............................................................................................................................................................................14
Table of Contents
Nomenclature
BM A 130 B A
Model Series Model Type Capacity Electrical Code Design Revision
Bohn Medium
Profile Unit Coolers
A = Air defrost
E = Electric defrost, 6 FPI
L = Electric defrost, 4 FPI
G = Hot gas defrost, 6 FPI
F = Hot gas defrost, 4 FPI
# BTUH x 100 A = 115/1/60
B = 208-230/1/60
C = 208-230/3/60
D = 460/3/60
M = 460/1/60
E = 575/3/60
L = 575/1/60
n = 110/1/50
Q = 220/1/50
R = 380/1/50
V = 380/3/50
AE = 115/1/60 (EC)
BE = 208-230/1/60 (EC)
CE = 208-230/3/60 (EC)
We have made a commitment to customer needs, innovation and environmental stewardship and have dedicated
ourselves to delivering energy-efficient choices. PSC and EC motors will reduce costs, improve the bottom line and
enhance equipment performance and service life.
Choose the most energy-efficient motor available for evaporators.

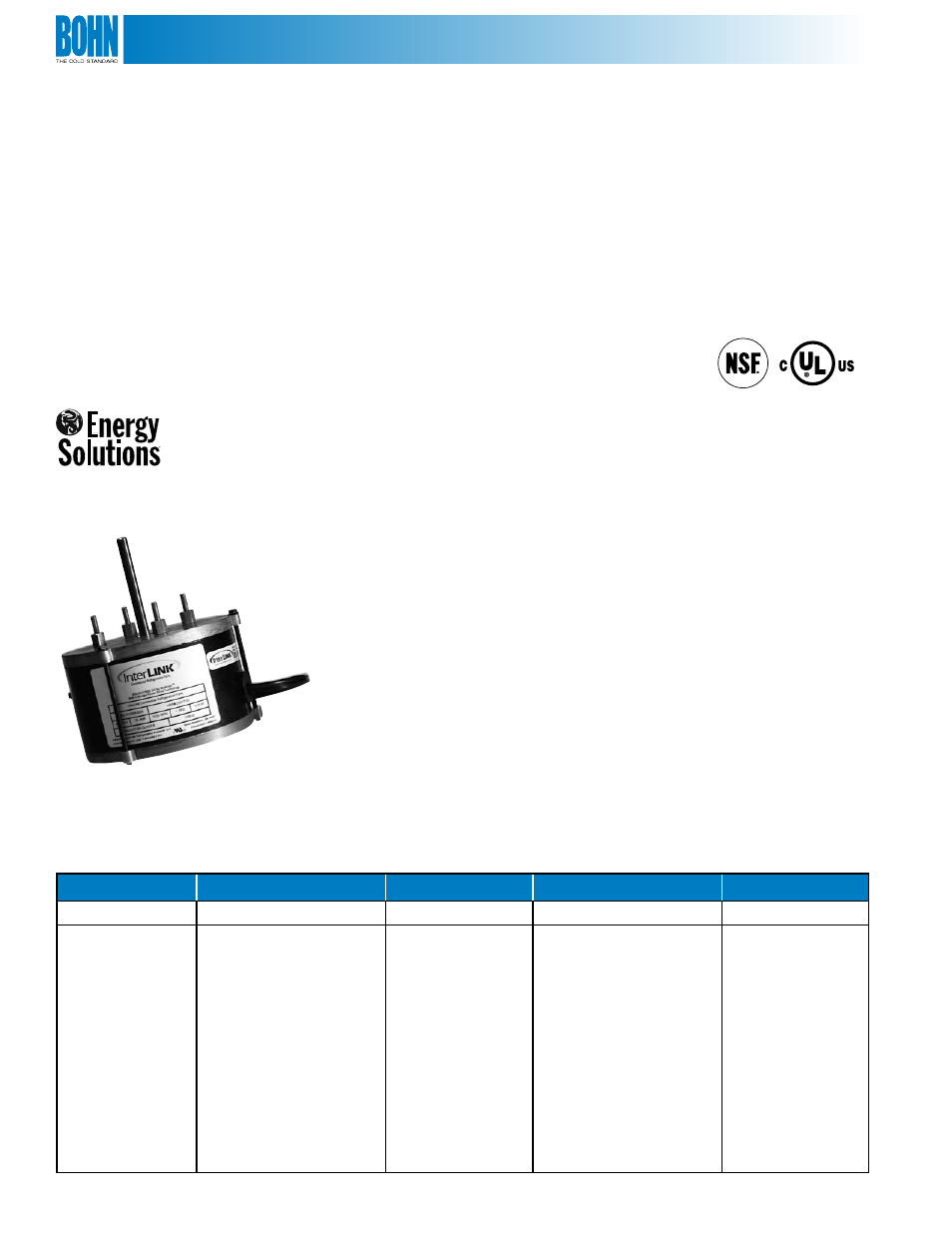

The EC motor is an Energy Solutions® option on new Bohn Medium Profile
evaporators. Available on all new equipment or as an easy-to-install,
drop-in replacement aftermarket part from InterLink™ Commercial
Refrigeration Parts. Because they’re a drop-in replacement for existing
PSC motors, installation is quick and easy. It’s a high impact, quick
payback solution for reducing costs and achieving green initiatives
without replacing the entire system.
EC motors by InterLink are up to 75% efficient - that’s a 30-35%
increase over permanent-split capacitor (PSC) motors. With all of
this added efficiency, you can count on more energy savings and lower
operational costs while taking a step in the right direction toward
conserving our planet’s resources.
To learn more about EC motors, visit www.interlinkparts.com/ec.
