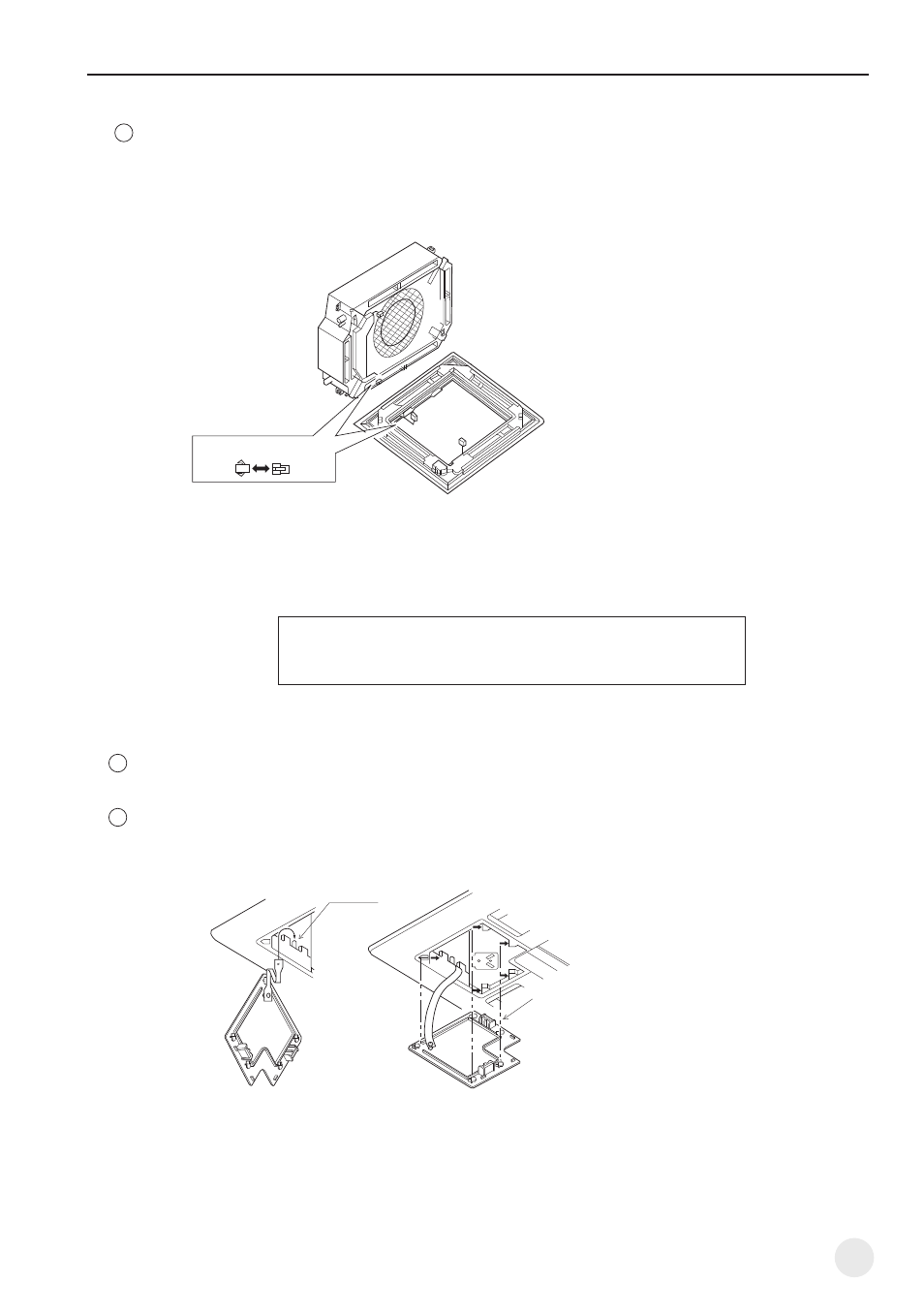

(3)The circuit of the decorative panel
Connect the wire end of the louver motor installed on the decorative panel
(referring to Figure 7).
When installing the air inlet grille, be careful not
to wrap the wire of the louver motor.
3.Installation of air inlet grille and corner cover
*
(1)Install the air inlet grille
* The reversed procedure to the “the preparation of decorative panel” part. *****
(2)Install the corner cover on the corner
**As Figure 8 shown, tie the rope of the corner cover on the cleat of the decorative
panel.
* Install the corner cover on the decorative panel (referring to Figure 9).
(different from the actual condition)
Figure 7
Side of indoor unit
33
Installation procedure
Install the decorative panel
6
2
1
Cleat
Slide the 5 buckles to install the
corner cover and make it meet with
the holes in the decorative panel
Figure 9 Figure 8
