Heath Zenith Hardwired Mechanical Chime 598-1112-05 - Manual (Page 3)

-- 598-1112-05
FR
ON
T
RE
AR
TR
AN
S
R
T
F
8. Route wires through wire entrance hole in new chime base.
9. Mount chime base to wall using screws provided.
10. Connect wire “F” to screw terminal marked “FRONT”. Connect
wire “T” to screw terminal marked “TRANS”. Connect wire
“R” to screw terminal marked “REAR”* (See Figure 2).
11. Install chime cover (see page 4).
* Note: Some installations may not include rear door push button.

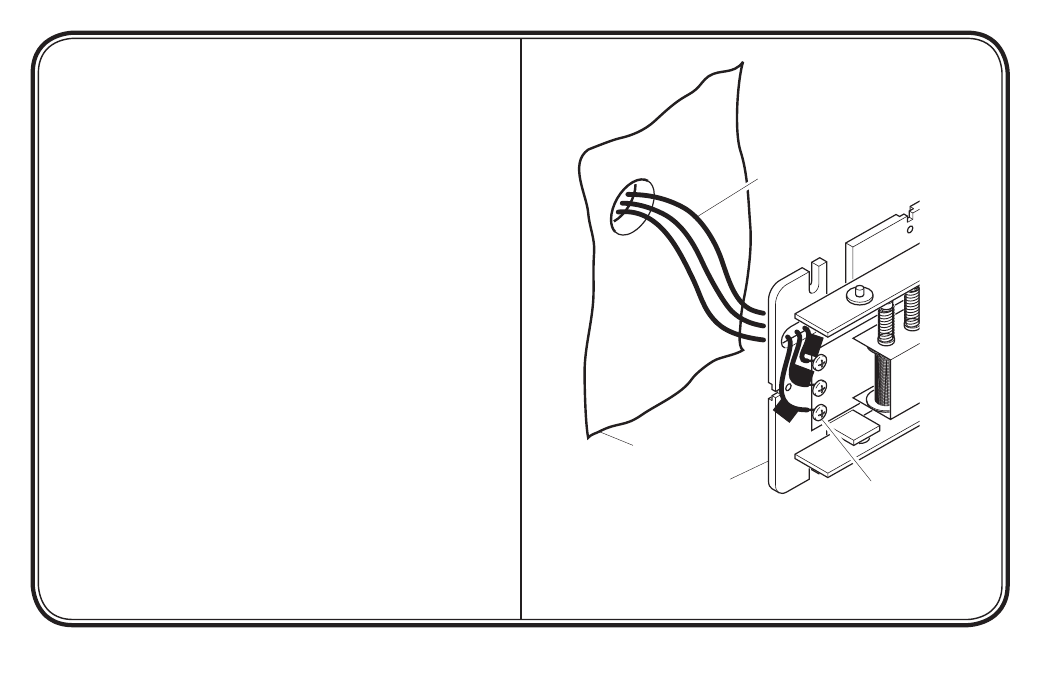

Figure 2 - Mechanical Chime Wiring
(Model 35 Base Shown)
Existing Chime Wires
Wall
Replacement Chime Base
Rear Door Push Button
(if Applicable)
