8
UNPACKING INSTRUCTIONS
Remove all parts and packing materials from •
carton.
Check carton contents against list. Be sure all
•
parts are there.
TOOLS REQUIRED
½" Wrench (2) •
9 • /
16
" Wrench
9 • /
16
" Socket wrench
Drill and • 5 /
16
" bit
NOTE: When right hand (RH) and left hand (LH.) are mentioned in this manual, it means when seated
on the mower in the operator’s position.
CONTAINER CONTENTS
3 - Soft Bag Containers 1 - Upper Chute
1 - Lower Chute
1 - Catcher Hitch
1 - Cover Assembly 1 - Cast Weight
1 - Catcher mount Hardware

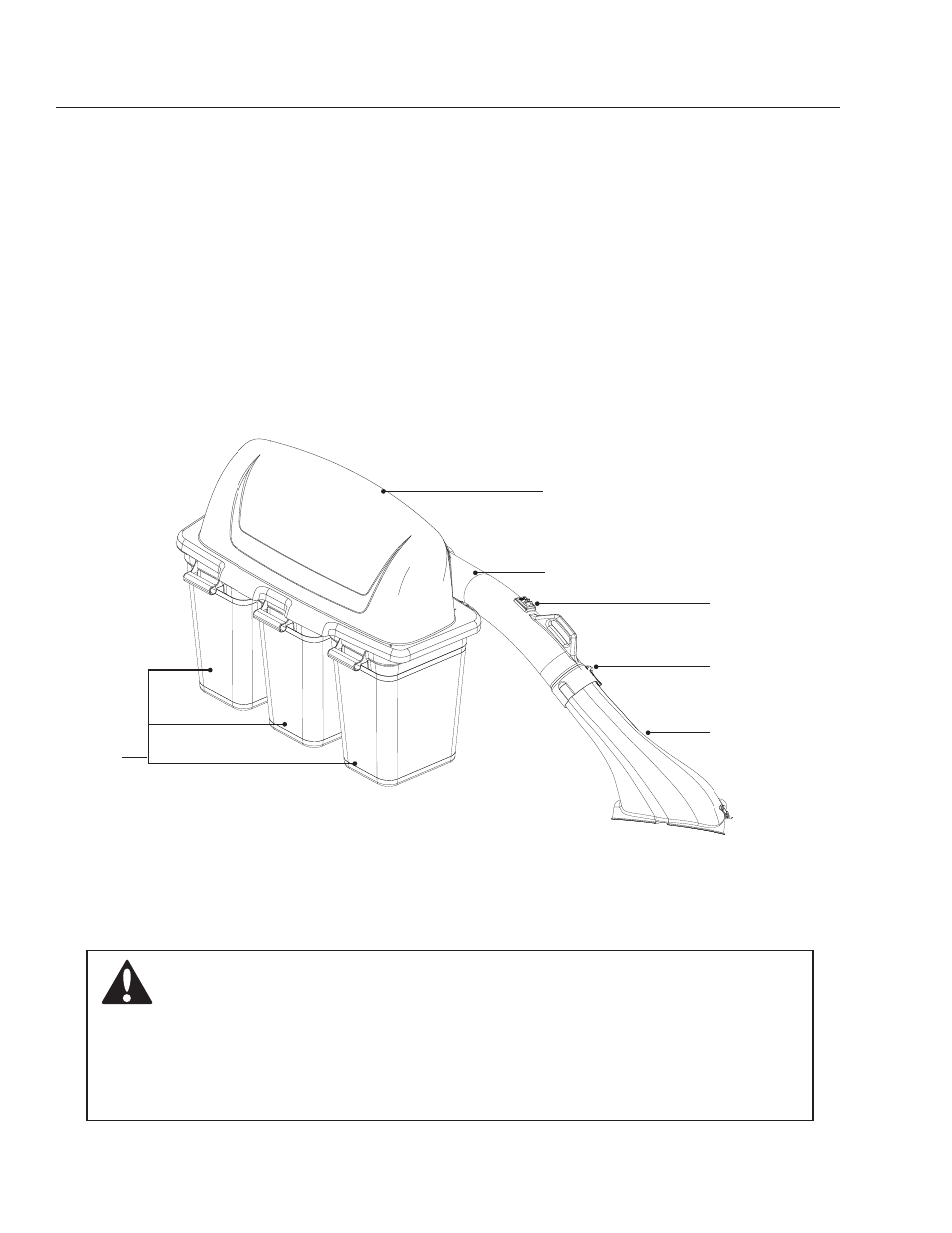

COVER ASSEMBLY
BAG
CONTAINERS
UPPER CHUTE
DUMP BAG
INDICATOR
CHUTE LATCH
LOWER CHUTE
PARTS IDENTIFICATION
CAUTION
BEFORE ASSEMBLING GRASS CATCHER TO MOWER:
Place motion control levers in “NEUTRAL” position. •
Set parking brake. •
Turn ignition key “OFF” and remove key. •
Make sure the blades and all moving parts have completely stopped. •
Disconnect spark plug and place wire where it cannot come in contact with plug. •
