10
ASSEMBLY

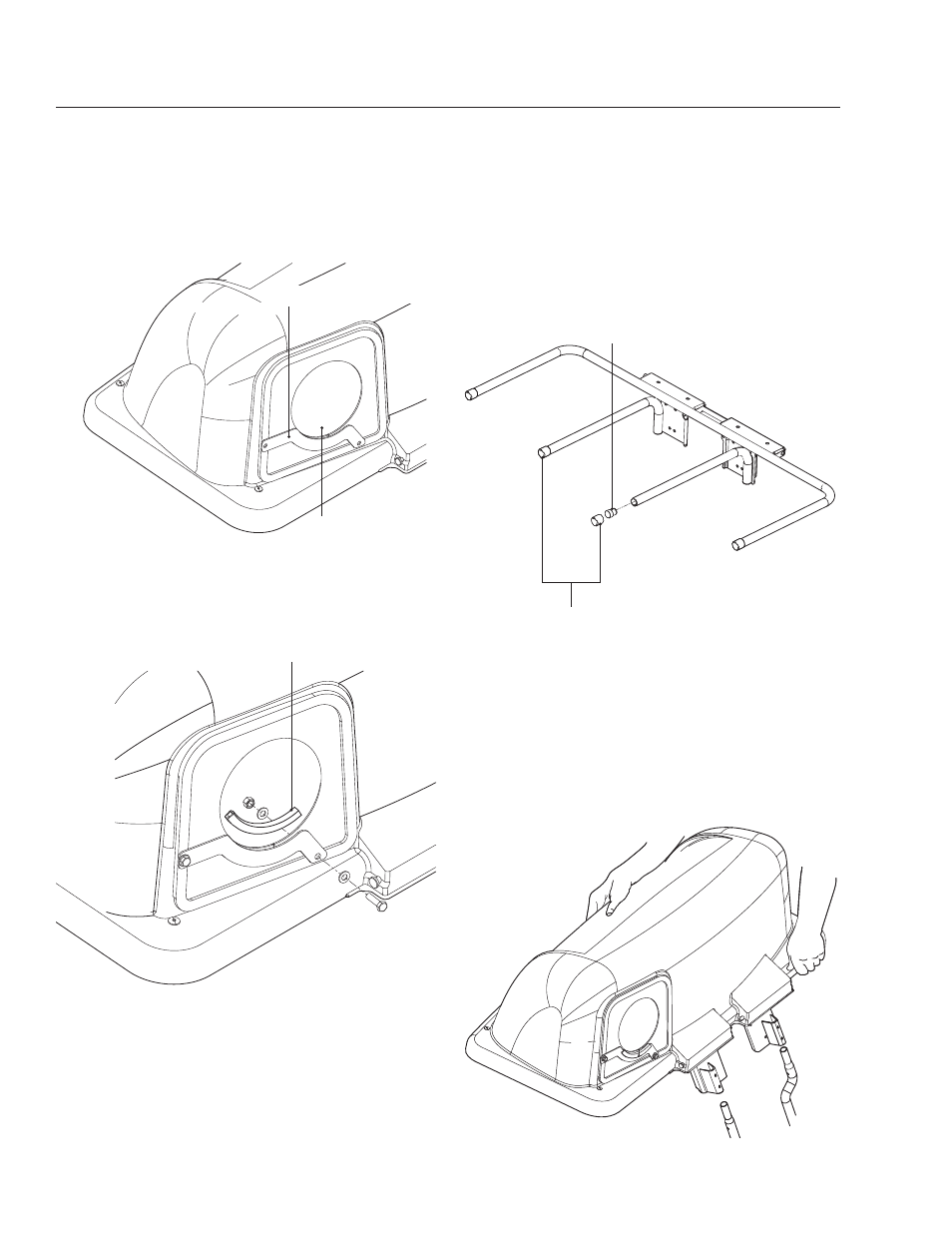

Position upper chute support against bagger inlet, 1.
flush at outer edges. See Illustration.
Using support as a template, drill two
2. 3 /
8
holes into
bagger hood.
Upper Chute Support
Bagger Inlet
Flex Trim
Secure upper chute support to hood with hex 3.
bolts, washers and nyloc nuts.
2
INSTALLING CHUTE SUPPORT
4
MOUNTING COVER ASSEMBLY
NOTE: Assistance from another person may
ease mounting the cover assembly to mower.
Lift and rotate cover to align the cover brackets
1.
with support assembly tubes.
Slide the cover down over the support tubes until
2.
secure.
Remove plastic end caps from the center two bag
support arms. fully insert spacer plugs into the ends
of the support tubes. It may be necessary to tap the
spacers into place with a hammer or mallet. Replace
the plastic end cap back over the spacer. The
additional extension will hold the hood more securely
when latched.
Remove center
end caps
Insert spacers and
replace caps
3
CONTAINER MOUNTING
8063-047
8063-048
8063-049
8063-050
