Permanent Connection
In the case of a permanent connection, it is necessary that you install a double pole
switch between the hob and the electricity supply (mains), with a minimum gap of 3 mm.
between the switch contacts and of a type suitable for the required load in compliance with
the current electric regulations.
The switch must not break the yellow and green earth cable at any point.
Ensure that the hob supply cord does not come into contact with surfaces with
temperatures higher than 50 deg. C.

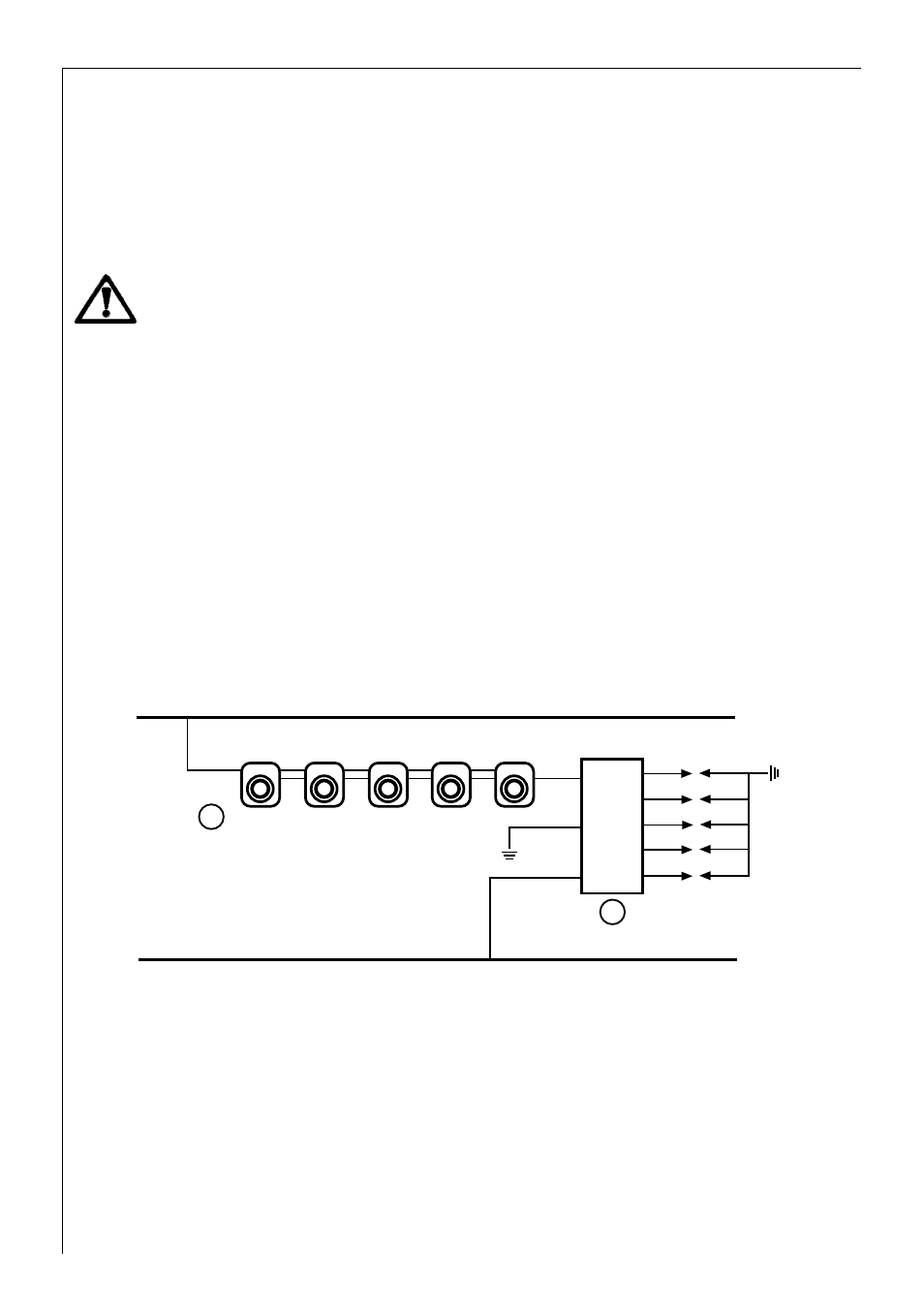

Wiring diagram
1. IGNITOR SWITCHES
2. IGNITOR UNIT
2
1
L
N
0
220
240 1
2
3
4
5
N
Replacement of the cable
The connection of the voltage cable to the appliance's terminal block is of type "Y". This
means that its replacement requires the specific equipment of a technician.
In this case, only cable types H05RR-F, H05 V2V2-F (T90) or H05 BB-F must be used.
The cable section must be suitable to the voltage and the working temperature.
The yellow/green earth wire must be approximately 2 cm. longer than the phase wires.
