Cut Out Size

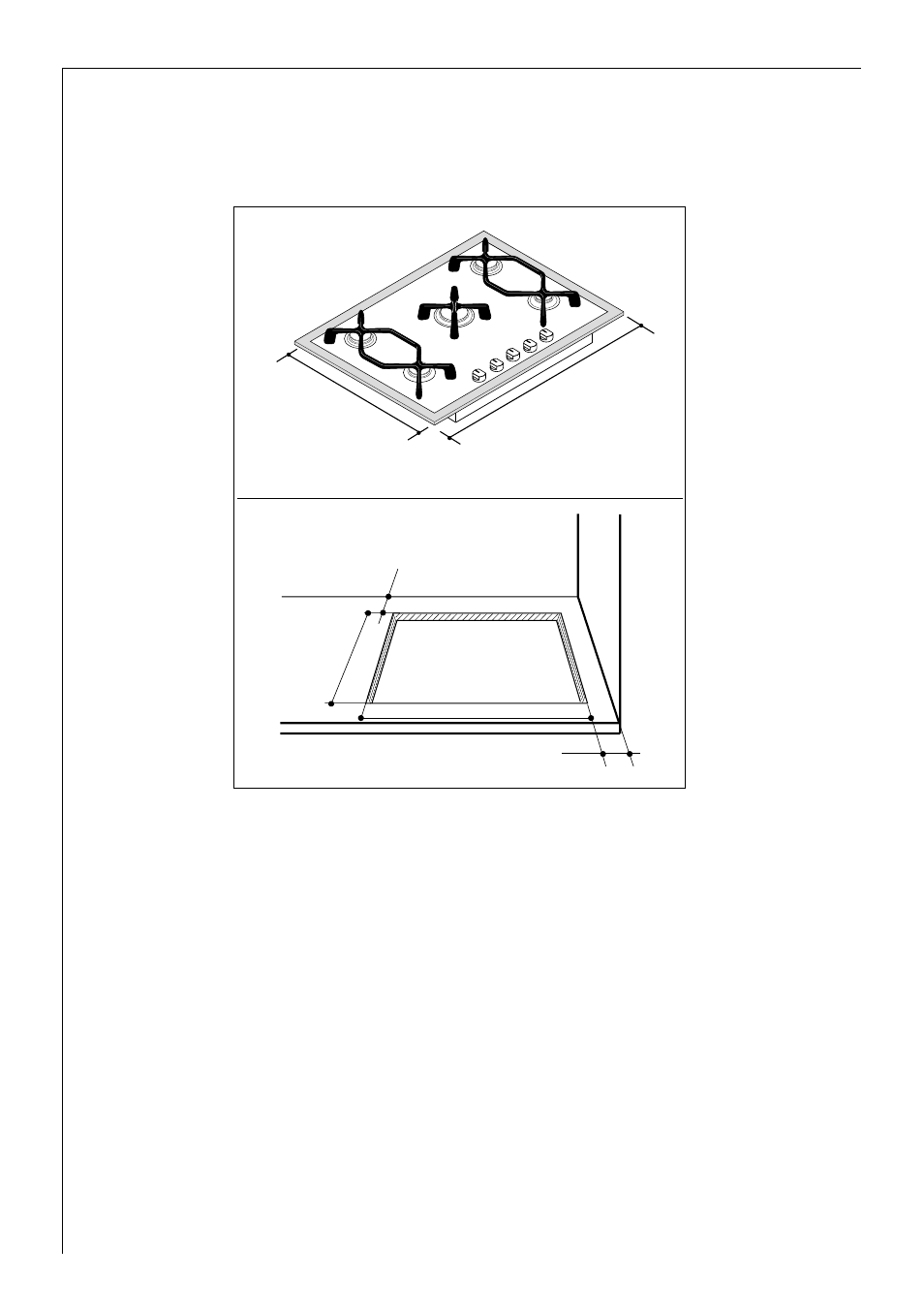

The dimensions of the cut-out are given in the diagram.
Building In
Building over a cupboard or drawer
If the hob is to be installed above a cupboard or drawer it will be necessary to fit a heat
resistant board below the base of the hob on the underside of the work surface.
It is also recommended to carry out the electrical connection to the hob as shown in
diagrams 1 and 2 (See next page).
560
150 min
480
55 min.
FO 2038
740
520
