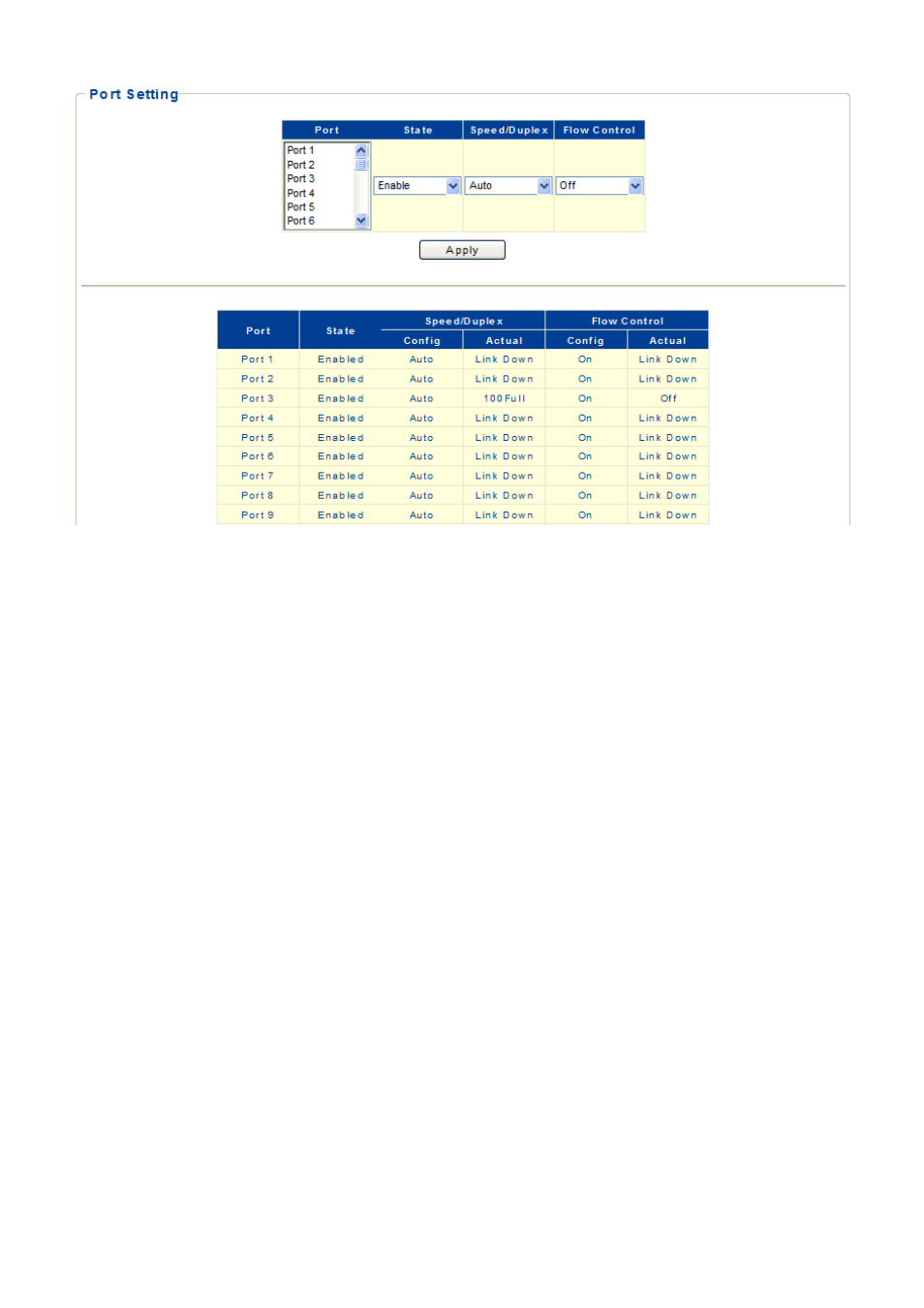

Figure 8: Port Setting
Hint§
The following parameters are displayed on the Port Setting configuration:
■
Port—Set up one or more ports. Hold down the CTRL key and click port numbers to select multiple ports.
Hold down the SHIFT key to select a range of ports.
■
State—Set the link state of port interfaces. (Default: Enabled)
■
Speed/Duplex—Configure the port speed and duplex mode using auto-negotiation or manual selection.
(Default: Auto-negotiation enabled)
■
Auto - Enable auto-negotiation. When using auto-negotiation, the optimal settings will be negotiated between
the link partners based on their advertised capabilities. Auto must be enabled for all 1 Gbps connections.
■
100M/Full - Support 100 Mbps full-duplex operation
■
100M/Half - Support 100 Mbps half-duplex operation
■
10M/Full - Support 10 Mbps full-duplex operation
■
10M/Half - Support 10 Mbps half-duplex operation
■
Flow Control—Display the following:
■
Config – The configured flow control mode of the port.
■
Actual – Indicate the link status of the port. When a link is up, indicates the operating flow control mode.
