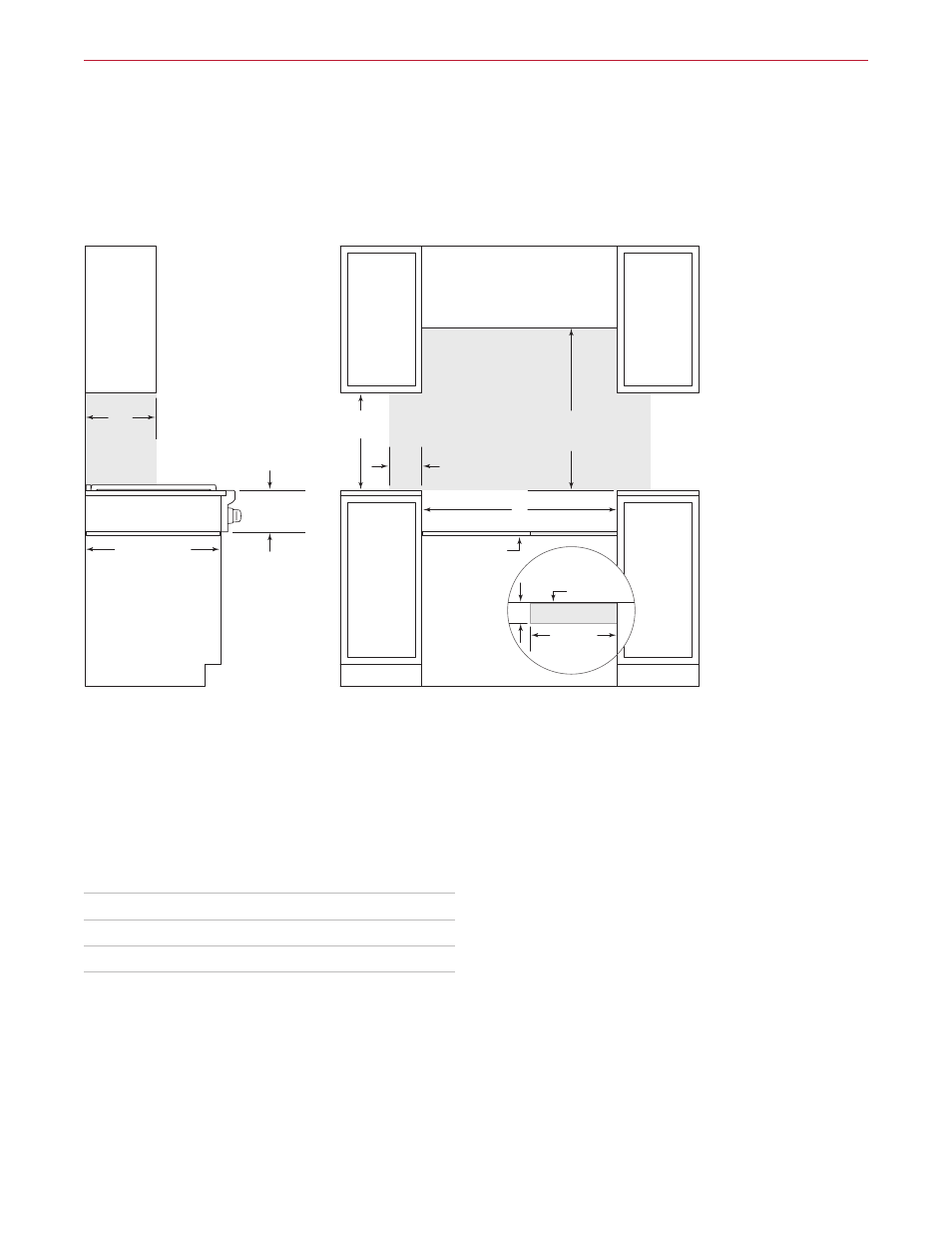

FRONT VIEW
SIDE VIEW
*Without ventilation hood, 36"
(914)
minimum clearance countertop to combustible materials, 44"
(1118)
for charbroiler.
NOTE: Shaded area above countertop indicates minimum clearance to combustible surfaces,
combustible materials cannot be located within this area.
Electrical and gas supply located through bottom of platform.
For island installation, 12"
(305)
minimum clearance back of rangetop to combustible rear wall above countertop.
13"
(330)
18"
(457)
6"
(152)
W
OPENING WIDTH
24"
(610) MAX
PLATFORM
30"
(762) TO
36"
(914)
TO BOTTOM OF
VENTILATION HOOD
*
7
1
/
2
"
(191)
OPENING
HEIGHT
PLATFORM
PLATFORM
TOP VIEW
16"
(406)
ELECTRICAL
AND GAS
4"
(102)
E G
BACK WALL
Sealed Burner Rangetop
INSTALLATION
OPENING WIDTH
W
30" Model
30"
(762)
36" Model
36"
(914)
48" Model
48"
(1219)
Specifications
