Elektra Beckum PK 300 K User Manual
Page 17
17
Install feet into tapped bushes M 10 lo-
cated on each corner.
Put a hex. nut M 10 on the threaded bolt
of all 4 adjustable feet.
Now tighten all screw joints fully, then
stand machine on its feet. Place side
panels lids into the panel openings.
2
Standard Delivery
Saw blade TCT 300x2.6/1.8x30 mm 28 alternate bevel teeth
Riving knife 2.5 mm
Saw blade guard
Rip fence
Mitre fence
Dust extraction port with hoses
Push stick
Tool set
Operating instructions
Install suction port to chip case.
Use 3 each
hex. head screw M 6x16
serrated lock washer Ø 6.4
hex. nut M 6
Place spiral hose Ø 100 mm onto suction
port and secure with hose clamp Ø 100
mm. Install both side panels, using 4 each
hex. head screw M 6x16
serrated lock washer Ø 6.4
hex. nut M 6
Install rear panel (with hole) between the
side panels.
Use 6 each
hex. head screw M 6x16
serrated lock washer Ø 6.4
hex. nut M 6
3

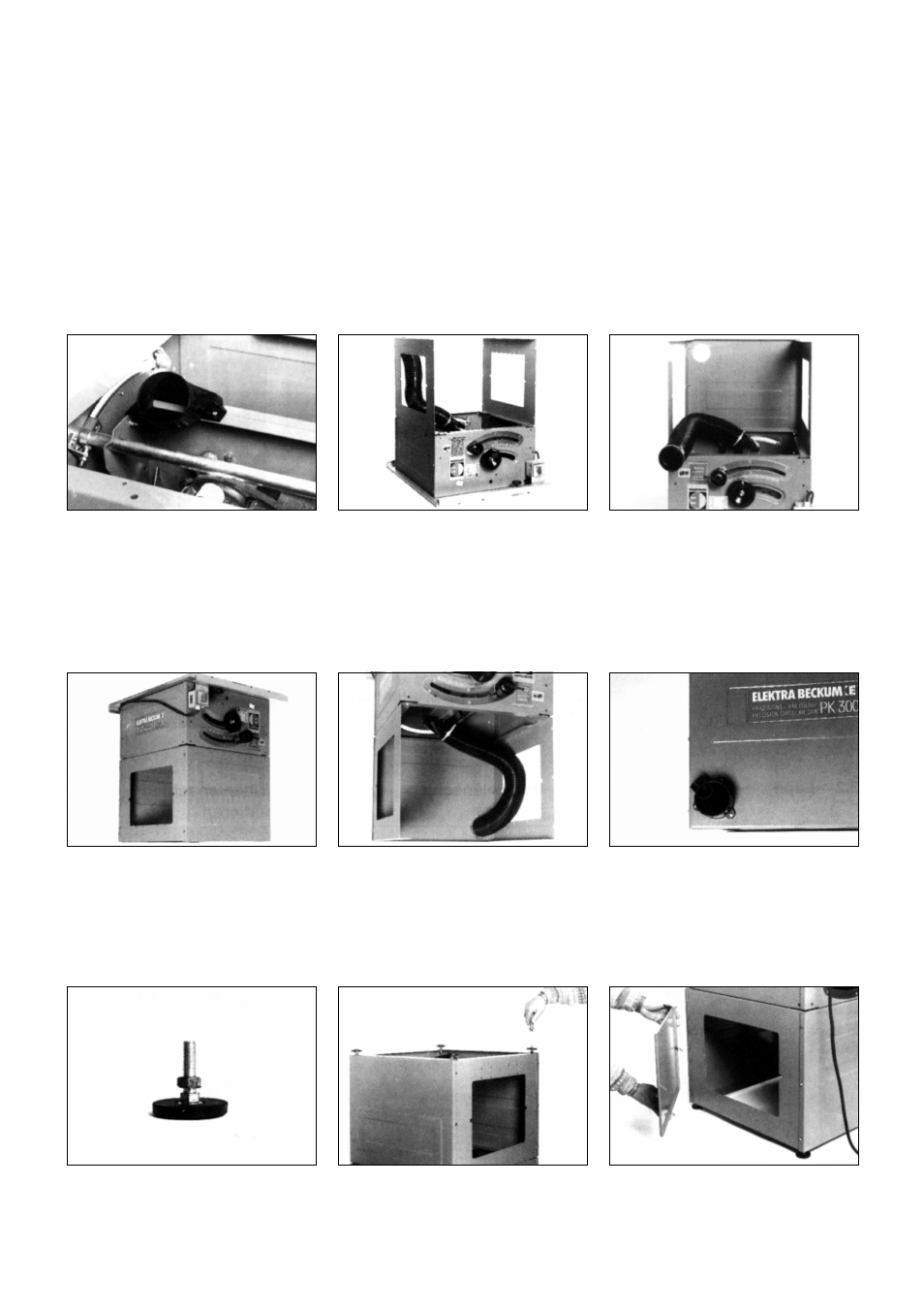

Installation
Place machine upside down on two battens to install the workstand. Do not tighten screws fully before all parts have been
installed.
Install dust collection port into hole of the
rear panel with 3 each
hex. head screw M 6x16
serrated lock washer Ø 6.4
hex. nut M 6
Place the spiral hose on the dust collec-
tion port and secure in place with the
second hose clamp Ø 100 mm.
Install the workstand's front panel.
Use 6 each
hex. head screw M 6x16
serrated lock washer Ø 6.4
hex. nut M 6
