GAS CONVERSION (GAS GAS MODELS ONLY)

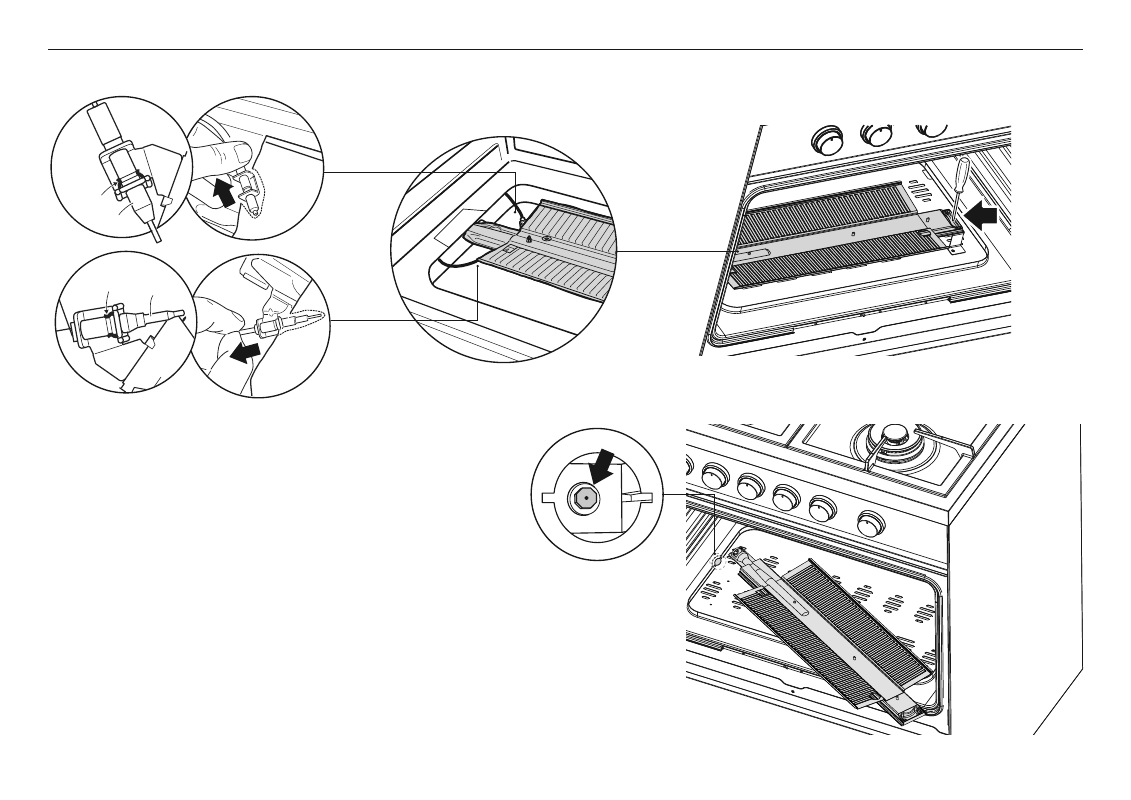

Replacing the lower oven burner injector
1
Lift and remove the lower panel inside the oven.
2
Gently unlock, the safety valve probe (
V
) and the ignition electrode
(
E
) from the burner. Take care not to damage the probe and the
ignition electrode.
3
Unscrew and remove the burner securing screws (
A
).
4
Withdraw the burner as shown.
5
Using a 9/32" (7mm) box spanner, unscrew the injector and replace it
with a new one selected in accordance with the ‘Injectors table’.
6
Replace the burner and other components.
IMPORTANT!
z
Ensure the safety valve probe (
V
) and the ignition electrode (
E
)
are replaced correctly.
z
Check the correct operation of the safety valve and the
ignition electrode.
Injector
E
E
Anchorage
clip
V
Anchorage
clip
V
Ignition
electrode
Safety
valve
probe
A
