Important, Gas connection – Fisher & Paykel Series 7 Classic Series 36 Inch Freestanding Gas Range Installation Guide User Manual
Page 20
20
4

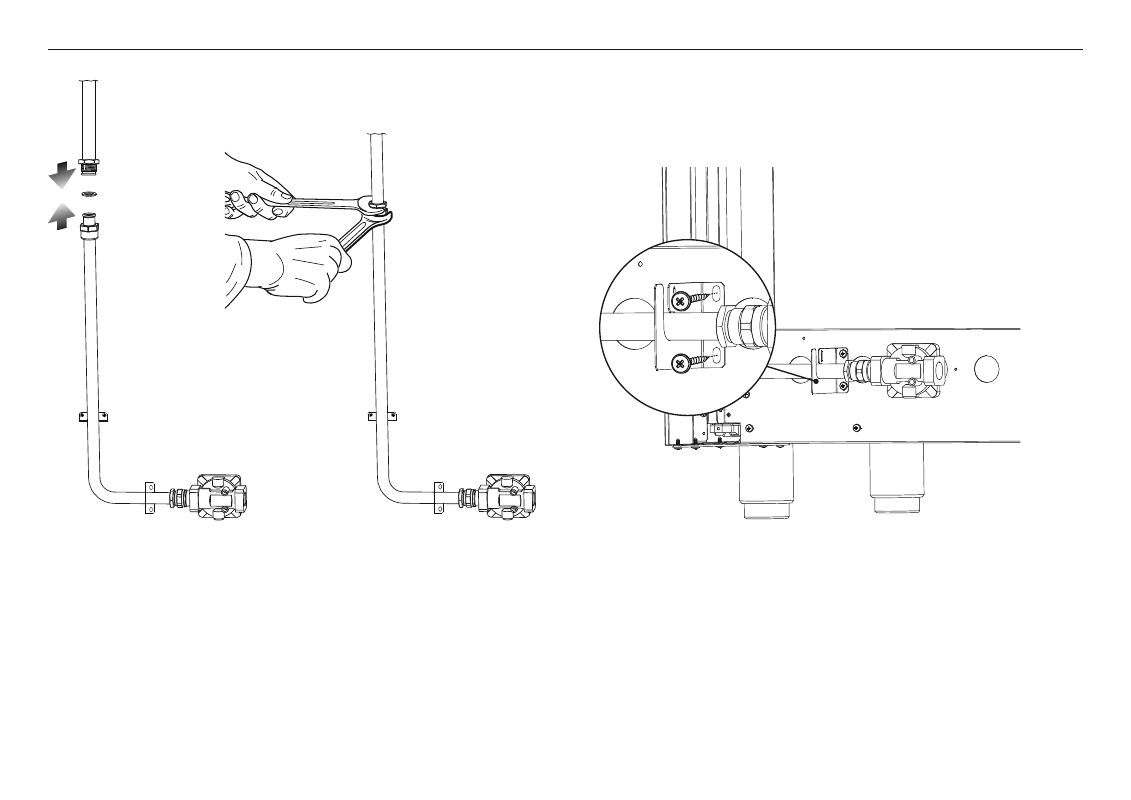

Connect the extension pipe and pressure regulator group to the range gas manifold
ensuring the supplied gasket is positioned between. The regulator cover must be
oriented toward the front side of the range.
IMPORTANT!
Use two wrenches to tighten the connection.
5
Fix the extension pipe support bracket onto the back of the range using the two
supplied screws.
z
Take care to ensure the bracket is fitted the right way up with the opening at the top.
z
The regulator cover must be oriented toward the front side of the range.
GAS CONNECTION
