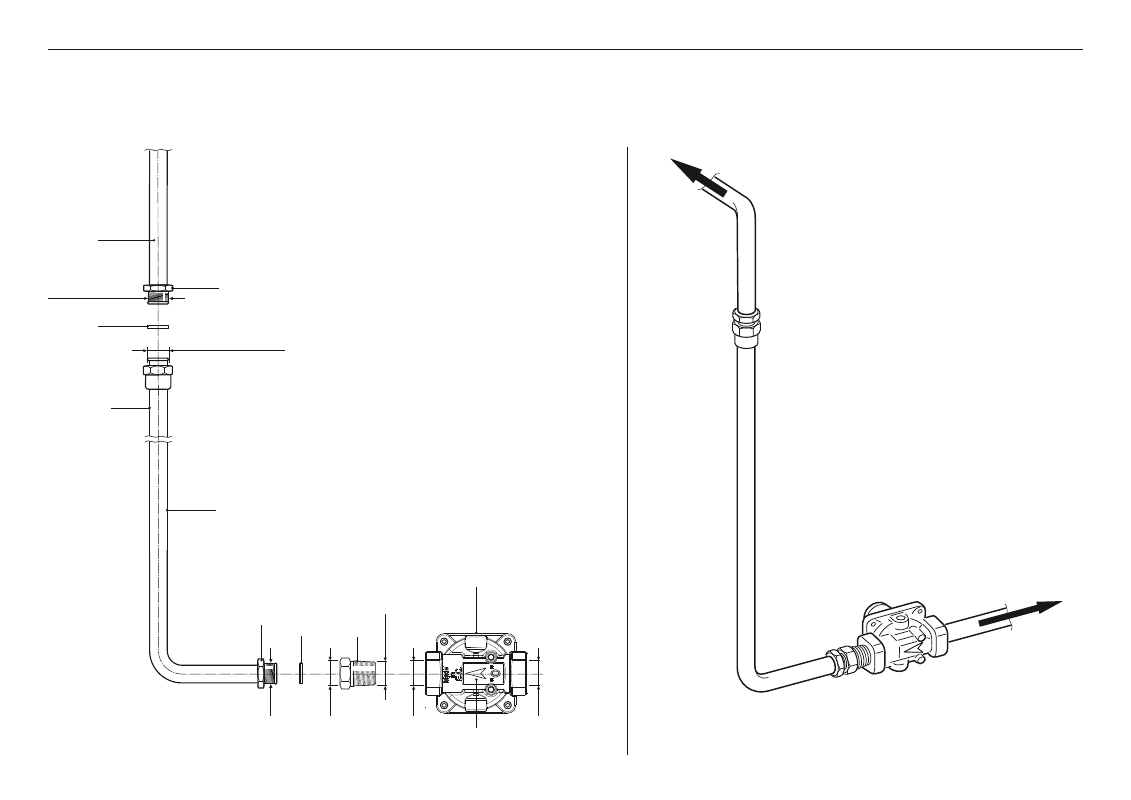

GAS CONNECTION
Gas connection specification
IMPORTANT!
Check the correct positioning of the gas regulator.
The arrow on the back of the gas regulator must be oriented toward the connector.
To mains
connection
To range
Range
manifold
1/2" G cylindrical
(ISO 228-1) male 1/2" G cylindrical
(ISO 228-1) female
1/2" G cylindrical
(ISO 228-1) male
Extension
pipe
male pipe
fitting
1/2" NPT
(conical) male
1/2" NPT
female 1/2" NPT
female
Arrow
Manifold male
pipe fitting
Extension pipe
1/2" G cylindrical
(ISO 228-1) female
Extension
pipe female
pipe fitting
Gasket
Gasket Connector
Pressure
regulator
