Control Panel
• Best results are obtained by using a low speed for normal conditions
and a high speed when odours are more concentrated.
Turn the hood on a few minutes before you start cooking, you will
then get an under pressure in the kitchen. The hood should be left on
after cooking for about 15 minutes or until all the odours have
disappeared. The control switches are located on the unit’s front
panel.
1 - Main switch, hood ON/OFF.
Depress for less than 1½” [seconds] the cooker hood goes to
Stand by position (point “b” is on).
Depress for more than 1½” [seconds] the cooker hood turns off,
ALL the controls (except light push-button) are disabled (display is
off completely).
Depress again for more than 1½” [seconds] to reposition the
cooker hood in Stand by position.
2 - Light ON/OFF
3 - Display
4 - Start and choice of motor speed 1-2-3-1-2.........
5 - Intensive speed on/off. The Intensive speed runs for 5 minutes:
If the hood is on when the Intensive speed is activated, the hood
revert to previous speed after 5 minutes.
If the hood is off when the Intensive speed is activated, the hood
will automaticly be turned off after 5 minutes.
To interrupt the Intensive speed, press button 1 or 4.
The letter P appears on the display and the remaining time (the
point “a” is flashing), upon termination the system emits an audio
sound signal.
6 - Self-Timer: times all the speed levels (the point “b” is flashing),
and then the cooker hood switches off:
The self-timer is sub-divided as follows: 1 st speed level 20 minutes
2 nd speed level 15 minutes
3 rd speed level 10 minutes
The display reveals the remaining operation time, upon termination
the system emits an audio sound signal. Depressing the push-
button again exits the function.
Should the hood or the controls fail to operate: disconnect the power
supply for at least 5 seconds, then turn the hood back on again. Wait
for about 15 seconds prior to checking that the cooker hood is
operating correctly.

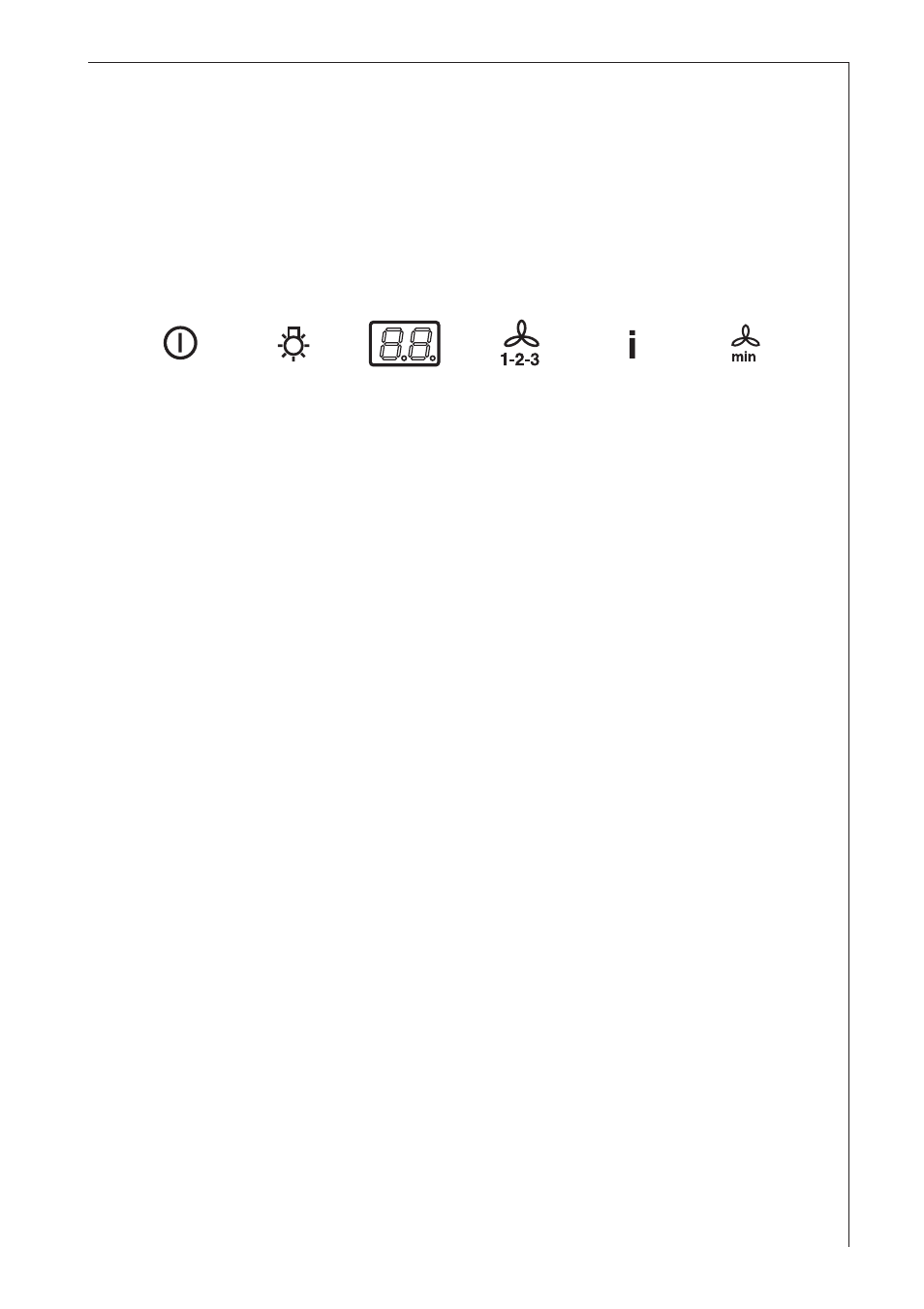

1 2 3 4 5 6
a b
Fig. 2
