8
OUTLET BOX
BLACK SUPPLY WIRE
BLACK/WHITE RECEIVER WIRE
BLACK FAN WIRE
BLUE FAN WIRE
BLUE RECEIVER
WIRE
YELLOW FAN WIRE
YELLOW RECEIVER WIRE
CEILING COVER
WHITE RECEIVER WIRE
WHITE FAN WIRE
WIRE CONNECTOR
RECEIVER
WHITE SUPPLY
WIRE
SUPPLY
GROUND
WIRE (GREEN
OR BARE)
HANGER BALL
GROUND WIRE
(GREEN)
HANGER BRACKET
GROUND WIRE
(GREEN)
HANGER BRACKET
BLACK RECEIVER WIRE
OPEN
PORTION OF
RECEIVER
HERE

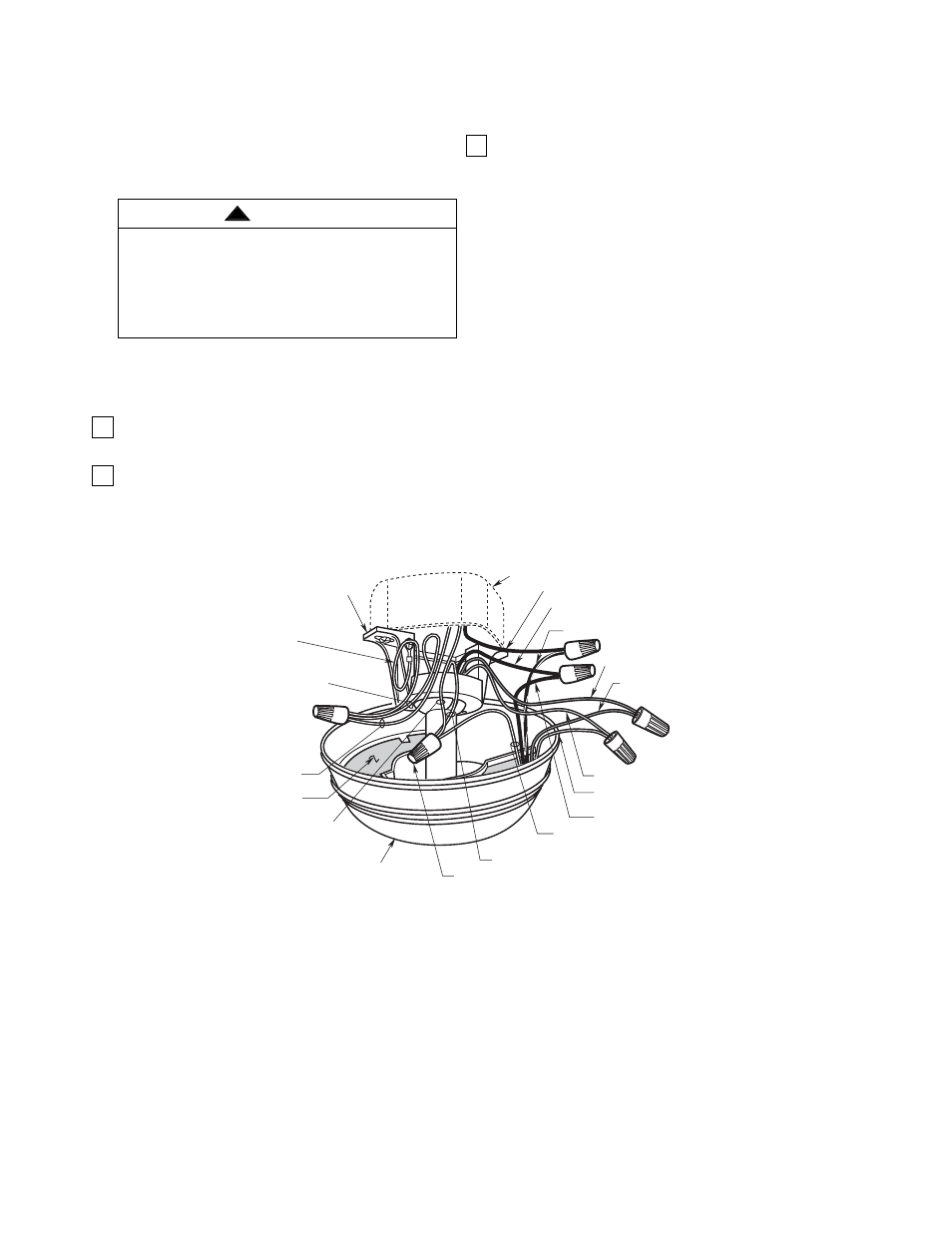

Figure 15
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is
turned off at the main fuse or circuit breaker box
before wiring. All wiring must be in accordance with
National and Local codes and the ceiling fan must be
properly grounded as a precaution against possible
electrical shock.
WARNING !
If you feel that you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
CAUTION: To reduce the risk of electrical shock,
disconnect the electrical supply circuit before
installing the fan and light kit or receiver.
1. Pull the wire leads, coming from the end of the
downrod, and the supply wires through the open
side of the hanger bracket. (Figure 15).
2. Position the SW105 Receiver (supplied) in the
ceiling cover so that the flat side of the receiver
faces up and the open portion of the receiver is to
the right, as shown in Figure 15.
3. Using wire connectors (supplied), make wiring
connections as follows (Figure 15 and 16):
a. Connect the white fan wire and the white supply
wire to the white receiver wire (AC IN/
MOTOR N).
b. Connect the black fan wire to the black receiver
wire (TO MOTOR L).
c. Connect the black supply wire to the black/white
receiver wire (AC IN L).
d. Cut off the ends of the blue and yellow receiver
wires and strip back insulation 1/2-inch from the
ends of the wires (if required, these ends may
already be stripped).
e. Connect the blue fan wire to the blue receiver
wire (BOTTOM LIGHT).
f. Connect the orange fan wire to the yellow
receiver wire (UPPER LIGHT).
g. Connect the green ground wires from the
hanger bracket and the hanger ball to the supply
ground wire (bare or green).
How to Wire Your Ceiling Fan
U.L. Model No.: CF820
