Figure 5 enclosure dimensions-floor mount, Figure 5, Enclosure dimensions—floor mount – Emerson SiteLink-12E User Manual
Page 8
Installing the Liebert SiteLink-E Module
4

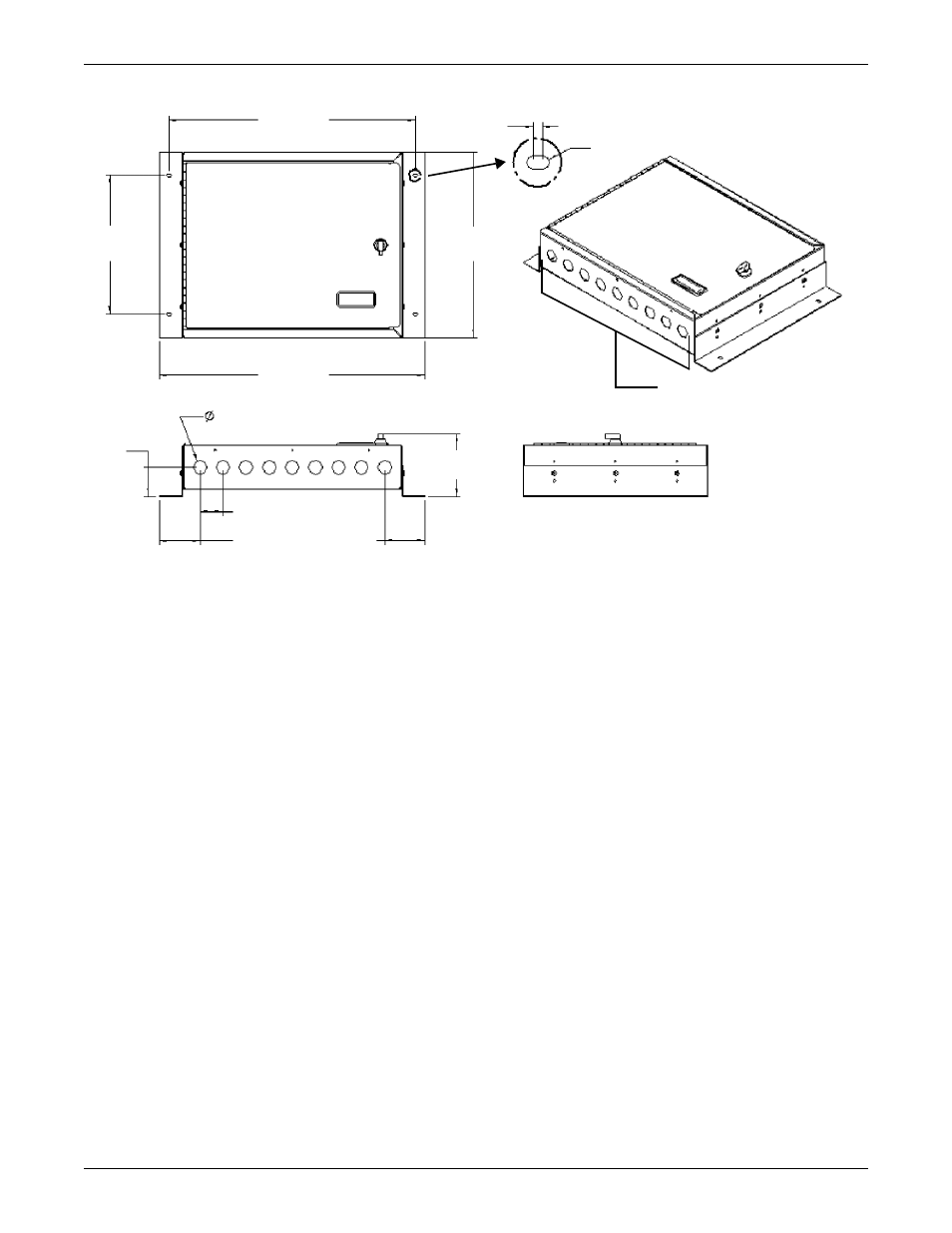

Figure 5
Enclosure dimensions—Floor mount
16"
(406.4mm)
9"
(228.6mm)
0.88"
(22.2mm)
4.05"
(102.8mm)
2.62"
(66.7mm)
1.5"
(38.1mm)
2.62"
(66.7mm)
1.88"
(47.6mm)
9 places each end
17.25"
(438.2mm)
0.11"
(2.8mm)
R
0.16"
(4mm)
DETAIL B
14 places
B
Wiring knockouts
(Top and Bottom)
Dimensions are identical for
Liebert Sitelink-2E
Liebert Sitelink-4E
Liebert Sitelink-12E
