OPERATION AND SERVICE INFORMATION

3-9

Read all of manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notes, Cautions and Warnings

component damage, the vehicle must be completely
stopped before moving the direction selector.

Located on the console between the seats, this lever permits the selec-
tion of either forward or reverse (Ref Fig. 10 on page 3-9). The vehicle
should be left in forward when unattended.

CHOKE

The choke is used to aid cold starting (Ref Fig. 10 on page 3-9).
See ‘Cold Starting’ (Refer to page 3-14) for instructions on using
the choke properly.

FUEL GAUGE

An electric fuel gauge is located to the right side of the key/light switch.
It indicates the amount of fuel in the tank (Ref Fig. 9 on page 3-9).

LOW OIL PRESSURE INDICATOR LIGHT

A low oil pressure indicator light is located on the dash panel (Ref Fig. 9
on page 3-9). If oil pressure drops below 1 - 4 psi (.1 - .2 kg/cm

2

), the oil

pressure switch will activate the light. Check oil level (Refer to page 3-

29). If oil level is between ADD and FULL mark on dipstick, a mechani-
cal problem exists within the engine and the vehicle must not be
driven
. Contact a local Distributor or authorized Branch.

To prevent engine damage, do not
operate engine until oil pressure is

corrected. Do not overfill engine. Too much oil may
cause smoking or allow oil to enter the air filter
enclosure.

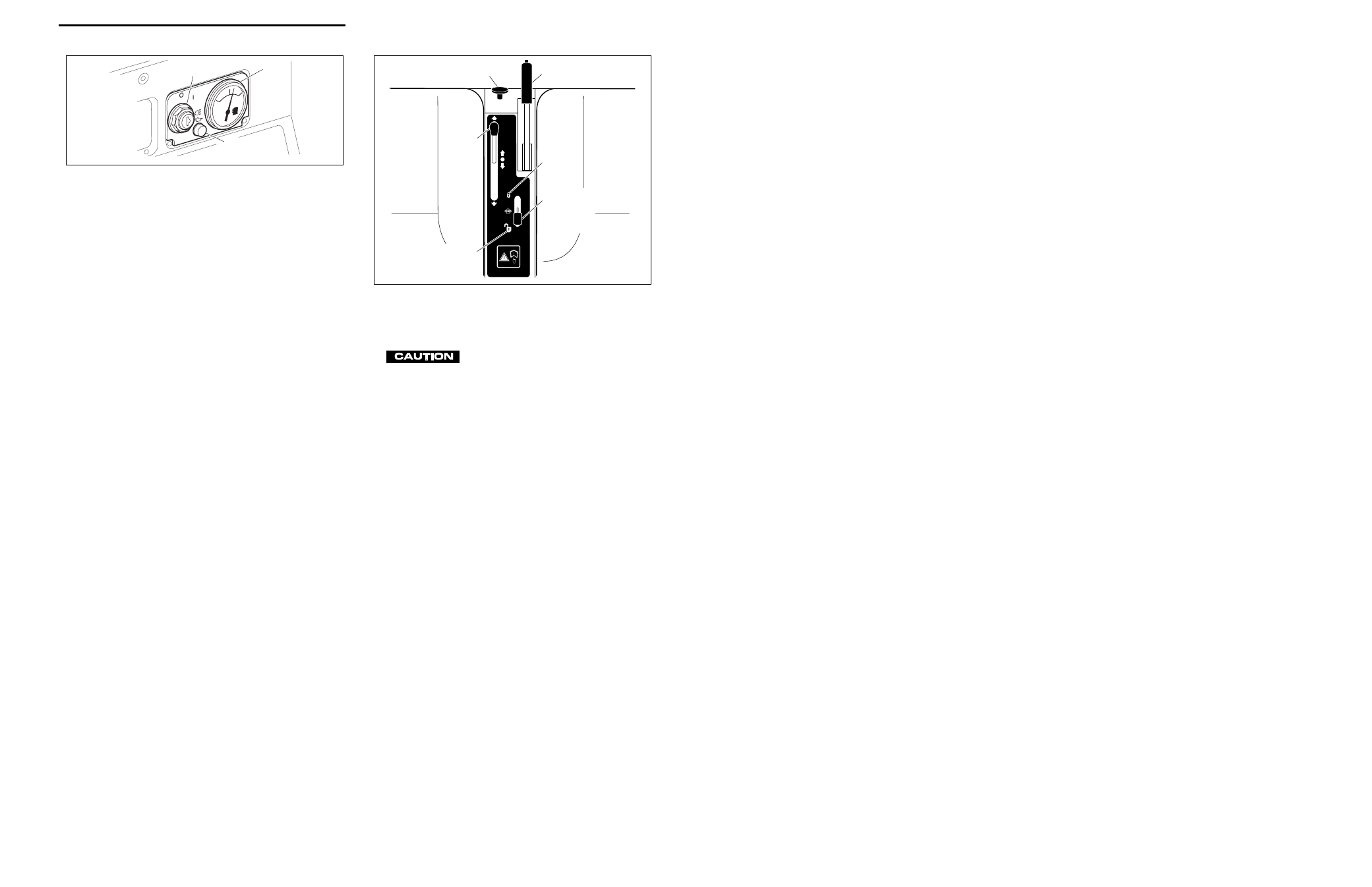

Fig. 9 Key/Light Switch, Low Oil Pressure Light and Fuel Gauge

ON

OFF

FUE

L

F

E

Low Oil Pressure

Indicator Light

Key/Light Switch

Fuel
Gauge

Fig. 10 Console Controls

Parking
Brake

75694G01

Choke

Direction

Selector

Differential
Locked

Differential

Unlocked

Differential
Lock Lever
(Stop Vehicle
Before Moving
Lever)
