- 8 -

2. SPECIFICATIONS

2.1 MODEL NUMBER:

Serial Nos. 160,000 & Higher: LHP4417KA; LHP4818KC
Serial Nos. 190,000 & Higher: LHP4418KC
Serial Nos. 190,000

–219,999: LHP4819KA

Serial Nos. 220,000 & Higher: LHP4419KA; LHP4820KC; LHP4821KA;

LHP5220KC; LHP5223KC; LHP5223KA

2.2 ENGINE:

2.2.1

Engine Specifications: See Your Engine Owner’s Manual

2.2.2

RPM: Full Speed: 3600 RPM (No Load) Idle: 1500 RPM

2.3 FUEL SYSTEM

2.3.1

Capacity: 8 gal. (30 L.)

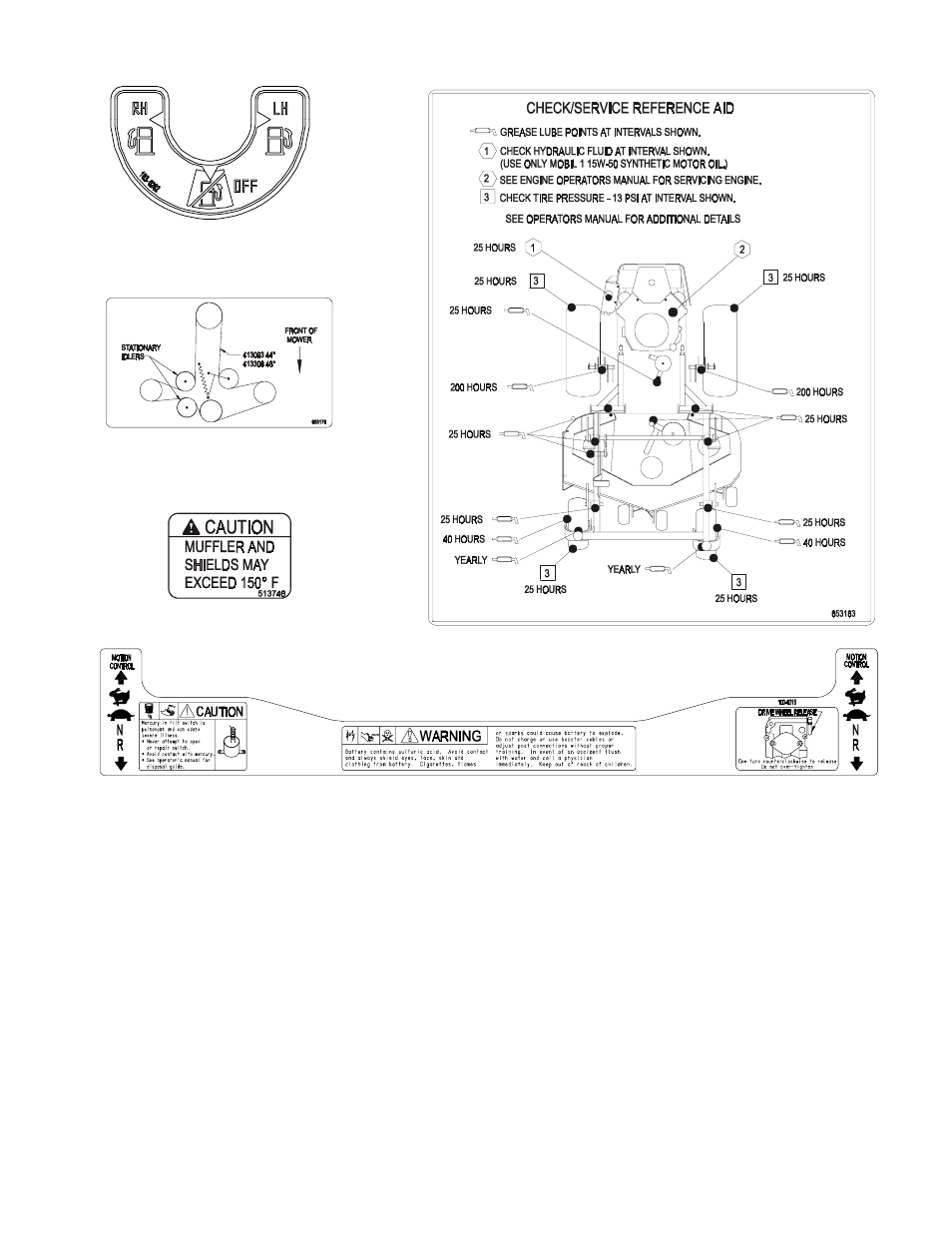

PART NO. 513746
LOCATION: Rear of Engine Deck,

Left and Right Sides

PART NO. 653176
LOCATION: Left of Center on Mower Deck,

Under Floor Pan

PART NO. 653183
LOCATION: Bottom Side of Floor Pan

Serial Nos. 252,000 and Higher
PART NO. 103-0315
LOCATION: Top of Console Under Seat

Serial Nos. 252,000 and Higher
PART NO. 103-0262
LOCATION: Below Center of Console
