Installation

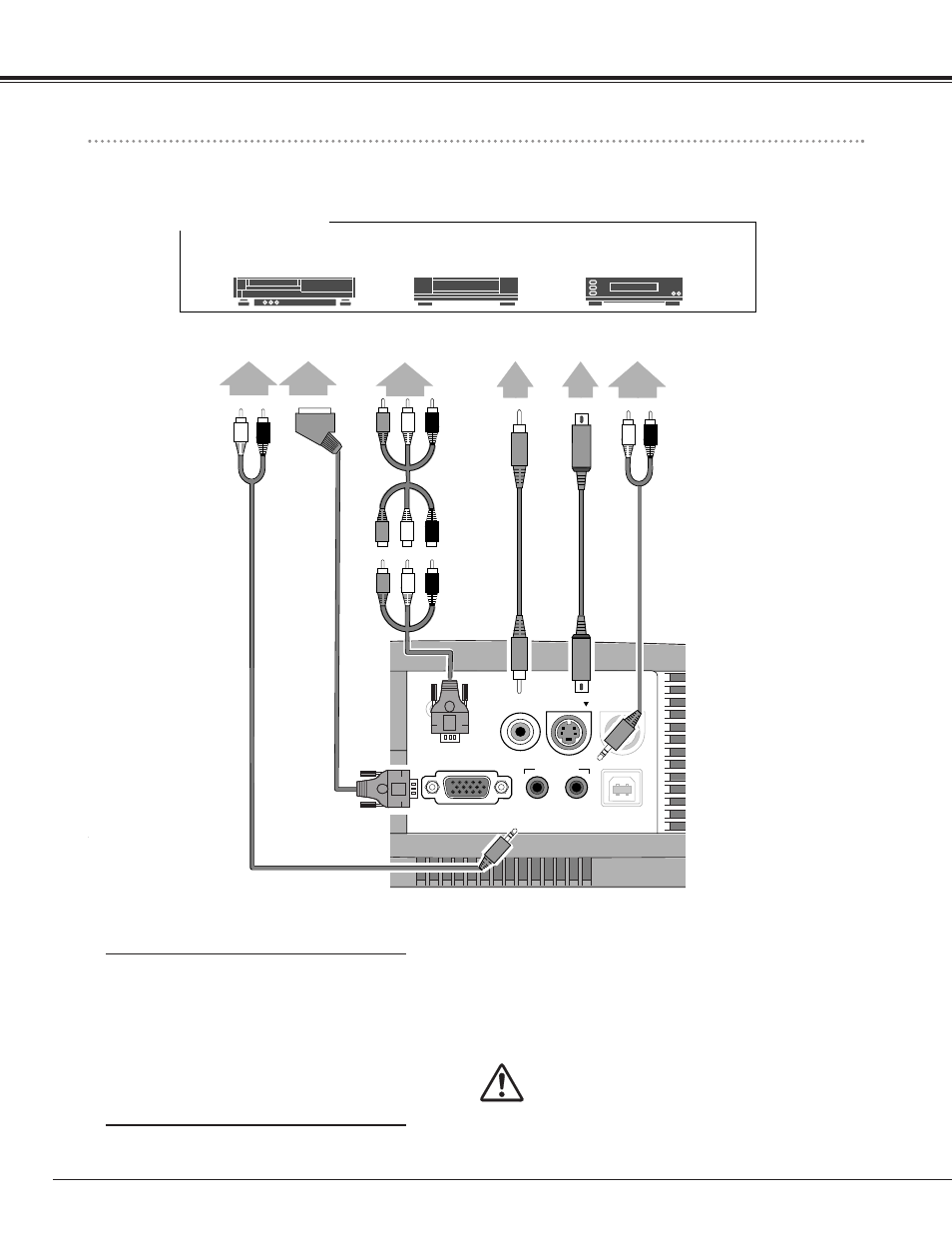

Connecting to Video Equipment
S-VIDEO
COMPUTER IN /
COMPONENT IN /
COMPUTER /
COMPONENT
AV
AUDIO IN
VIDEO
USB
SERVICE PORT
RESET
Video Source (example)
Video Cassette Recorder Video Disc Player
Video
Cable
✽
(RCA x 1)
S-VIDEO
Cable
✽
Note :
– If both the S-VIDEO jack and the VIDEO jack are connected at the
same time when AUTO is selected in the Input Menu, the
S-VIDEO jack will override the signal from the VIDEO jack.
– See page 51 for ordering optional parts.
S-VIDEO
Output
Audio Output
Audio Cable
(stereo)
✽
Component video output
equipment. (such as DVD player or
high-definition TV source.)
Composite
Video Output
Component Video Output
(Y, Pb/Cb, Pr/Cr)
Component-
VGA Cable
(RCA x 3)
✽
Audio Output
Audio Cable
(stereo)
✽
Cables used for connection
• Video Cable (RCA x 1)
✽
• S-VIDEO Cable ✽
• Audio Cables (Mini Plug) ✽
• Scart-VGA Cable ✽
• Component-VGA Cable (RCA x 3) ✽
• Component Cable (RCA x 3) ✽
✽ Not supplied.
RGB Scart
21-pin Output
Scart-VGA
Cable
✽
Component
Cable
(RCA x 3)
✽
When connecting the cable, the power cords of both the
projector and the external equipment should be
disconnected from AC outlet. Turn the projector and
peripheral equipment on before the computer is switched
on.
