Replacing the injectors
1. Remove the pan supports.
2. Remove the burner caps and crowns.

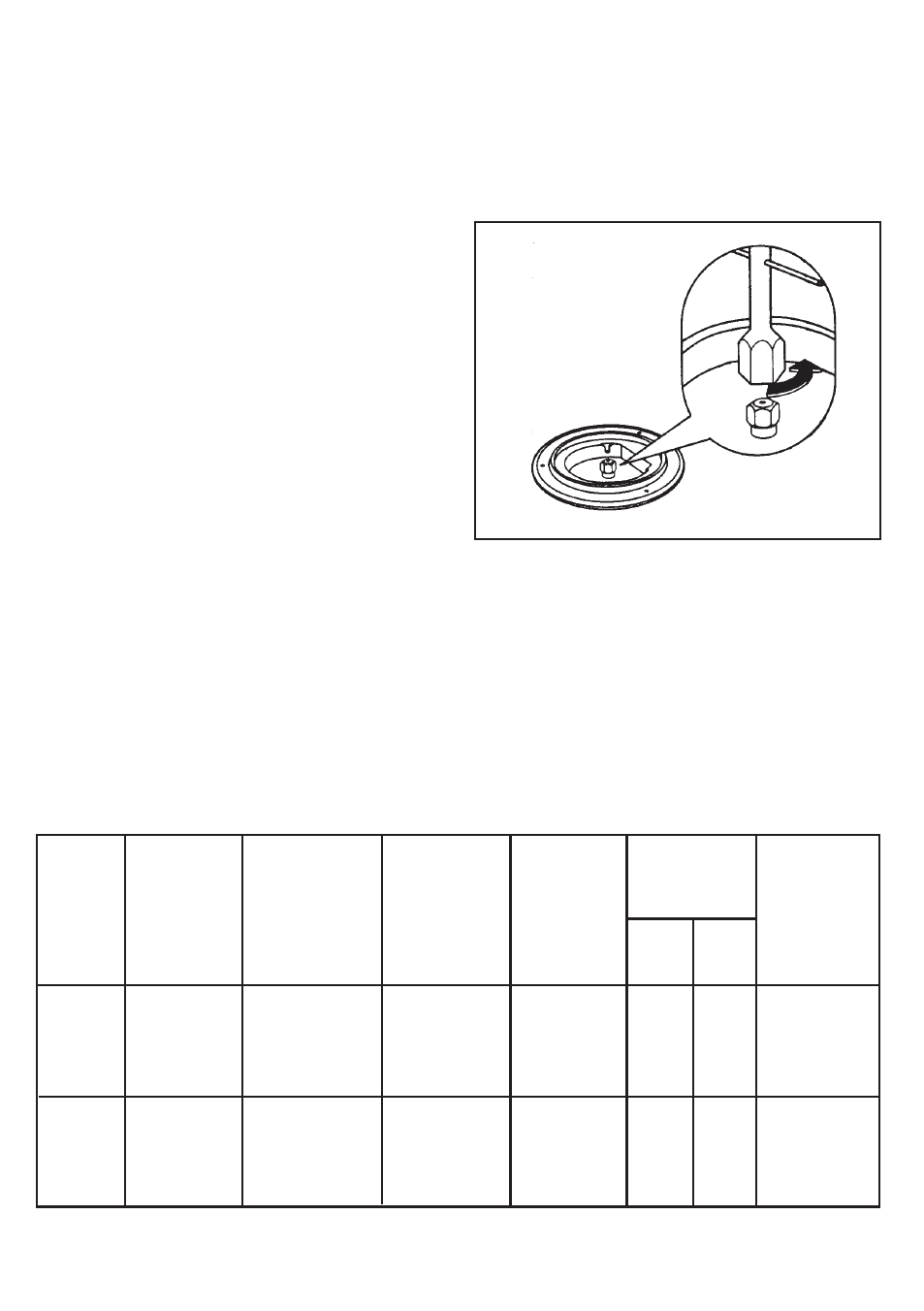

3. Using a 7 mm socket spanner unscrew and
remove the injectors , then replace them
with the ones required for the new type
of gas
(see the table “Burner
characteristics”).
4. Reassemble the parts, following the
same procedure backwards.
5. Replace the Gas Type Label (located near
the gas supply connection) with the one
corresponding to the new type of gas. The
label is supplied in the accessories plastic
bag.
Should the feeding gas pressure be different or
variable compared with the required pressure,
an appropriate pressure regulator must be fitted
on the gas supply pipe, in compliance with the
rules in force.
Conversion to LPG
GAS BURNER INJECTOR NOMINAL REDUCED NOMINAL FEEDING
TYPE TYPE REFERENCE THERMAL THERMAL FLOW RATE PRESSURE
1/100 mm POWER POWER
kW kW m3/h g/h mbar
Rapid 119 2.9 0.65 0.276
Semirapid 96 1.9 0.45 0.181 - 20
Auxiliary 70 1.0 0.33 0.095 -
Rapid 86 2.7 0.65 - 196
Semirapid 71 1.9 0.45 - 138 28-30/37
Auxiliary 50 1.0 0.33 - 73
NATURAL
GAS
( G 2 0 )
LIQUID
GAS
(Butane/
Propane)
Burner characteristics
