2-3 IPL T S Series • Installation and Operation
Mounting options
All units are easily mounted in a rack, under a desk or podium, or on a projector
mount.
Mounting kits and IPL T S Series device compatibility are shown in the table below.
Mounting Type Kit PN S1 S2 S4 S6
Under-furniture mount 70-077-01 •
Under-furniture mount 70-212-01 • • •
Projector mount 70-077-04 •
Projector mount 70-217-01 • • •
Rack mount 1U 9.5” D rack shelf 60-190-01 • • • •
VersaTools ® 1U 3.5” D rack shelf 60-190-20 • • • •
Rack mounting an IPL T S Series interface
The following rack mount kits are available:
• PN 60-190-20 VersaTools 19” 1U Rack Shelf
• PN 60-190-01 Universal 1U Rack Shelf
To rack mount an IPL T S Series unit:
1 . If present, remove the rubber feet from the bottom of the IPL T S unit.
2 . Secure the underside of the unit on the rack shelf with two 4-40 x 3/16”
screws in opposite (diagonal) corners.
3 . Install additional unit(s) or blank panel(s) on the rack shelf as desired.
4. Insert the shelf into the rack at the desired location.
5. Secure the shelf to the rack using the supplied mounting screws.
(2) 4-40 x 3/16" Screws
Use 2 mounting holes on
opposite corners.
1U Rack Shelf
1/4 Rack Width False Front
Face Plate
IP L T S 2
1
R
100
CO M T X
LIN K AC T
2 R X R T S C TS
IP L T S 2
1
R
100
CO M T X
LIN K AC T
2 R X R TS C TS
IP L T S 2
1 R
100
CO M T X
LIN K AC T
2 R X R TS C TS
®
®
®

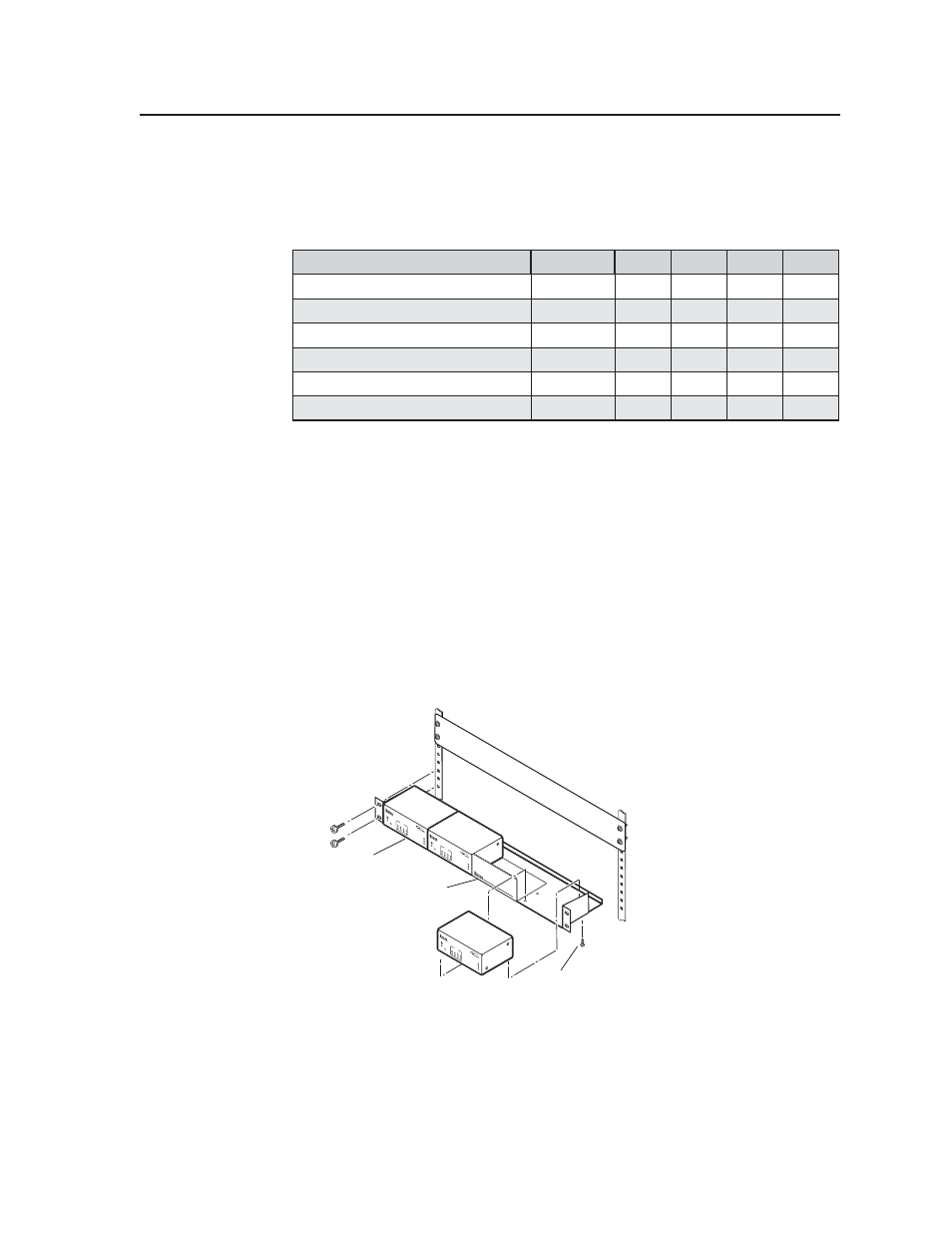

Figure 2-1 — Rack mounting the interface on the VersaTools shelf
N Only IP Link ® or VersaTools products can be mounted to a VersaTools shelf.
Any 1U or 1-inch high rack-mountable Extron product can be mounted on the
Universal 1U Rack Shelf (shown in the following diagram).
