GB

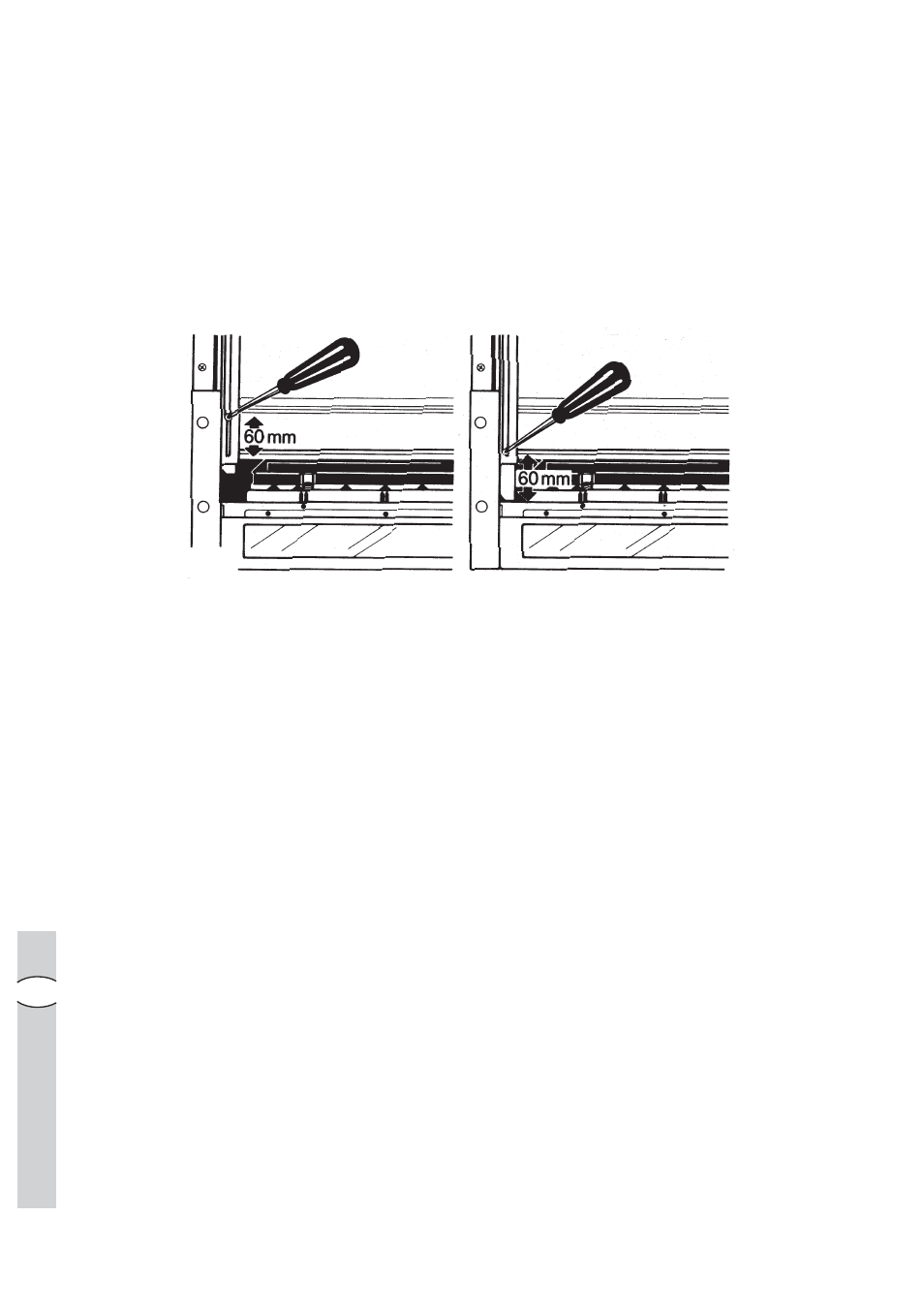

Adjusting the extractor part. Adjusting the extractor part. Adjusting the extractor part. Adjusting the extractor part. Adjusting the extractor part.
On wall units with a body depth of 275 mm to 335 mm, the visor depth can be
adjusted as follows:
• Remove both grease filters.
• Loosen the screws on both end-stop brackets and set the visor depth (min.
275 mm, max. 335 mm).
• Refit the screws.
• Refit the grease filters.
