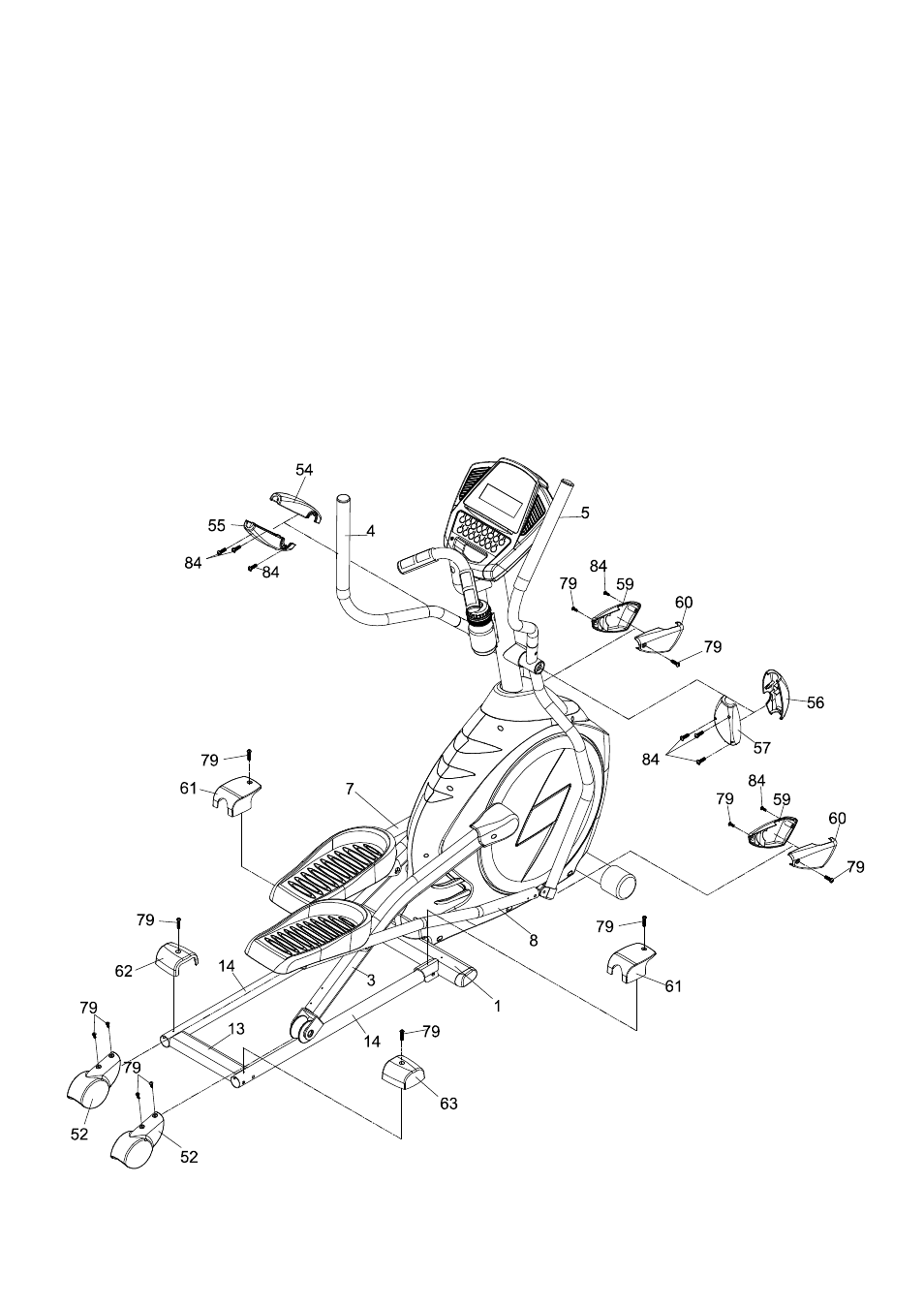

STEP 4: Beauty covers assembly
1. Install the Connecting Arm Covers (59 & 60) over the connection of the rod end and
Swing Arms with four M5 Phillips Head Screws (79) and two 3.5x12mm Self Tapping
Screws (84).
2. Install the two Wheel Covers (52) on the pedal arms above the Wheels with four M5
Phillips Head Screws (79).
3. Install the Front Handle Bar Covers (54 & 56) and Rear Handle Bar Covers (55 & 57)
over the Swing Arm axle connections with six 3.5x12mm Self Tapping Screws (84).
4. Install the two Middle Stabilizer Covers (61) on the joint of the Rail Tubes (14) and the
Stabilizer. Secure the covers with two M5 x 15mm Phillips Head Screws (79).
5. Install the Rear Stabilizer Covers (62 & 63) on the rearward end of the Rail Tubes (14)
and secure them with two M5 x 15mm Phillips Head Screws (79).
