EL355 Elliptical

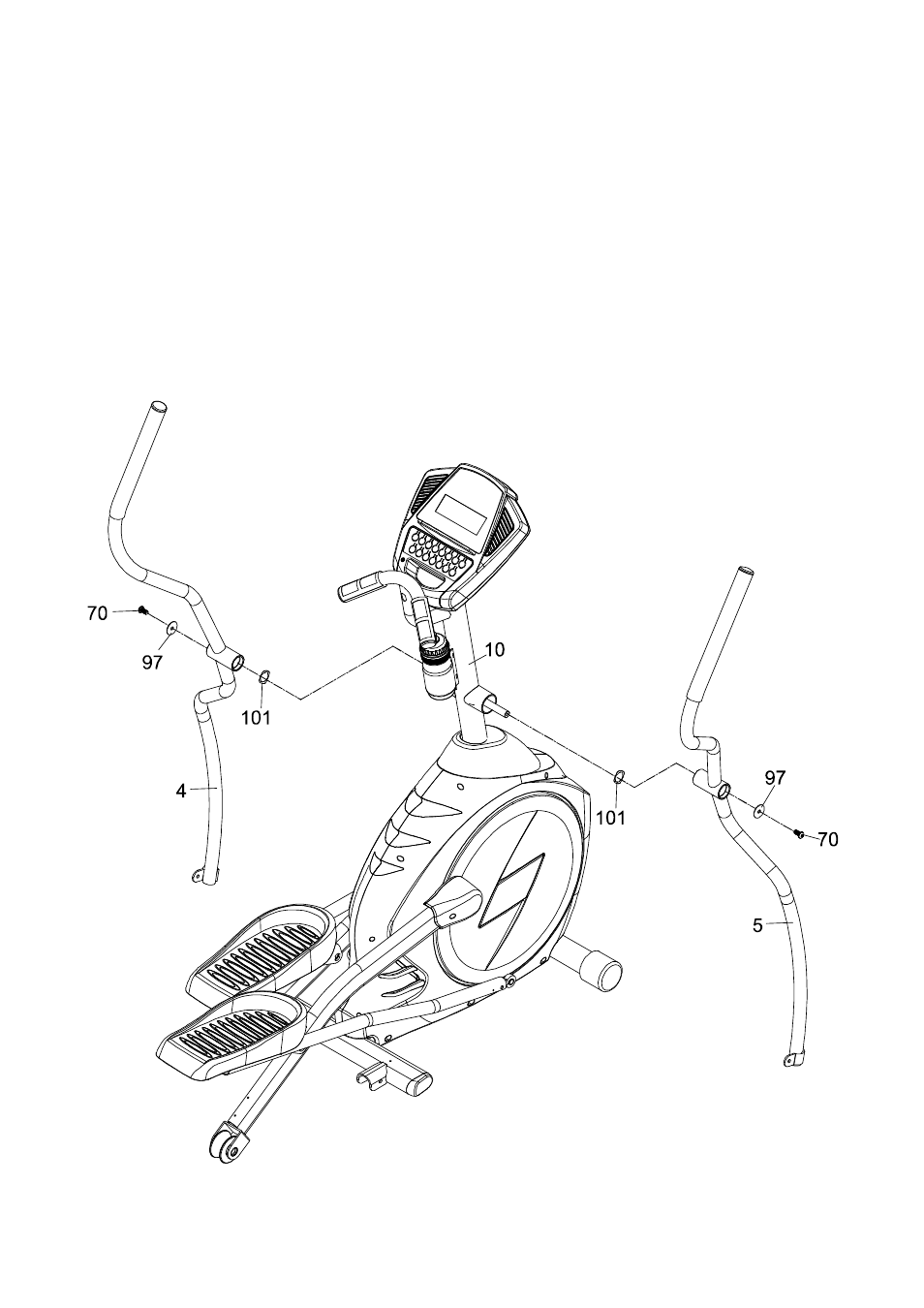

STEP 2: SWING ARM ASSEMBLY

1. Install the two Wave Washers (101) onto the Left and Right sides of the Swing Arm axle.
2. Slide the Left and Right Swing Arms (4&5) onto the appropriate side of the axle. There is

a small sticker on each swing arm that shows L (Left) or R (Right). Do not force the
swing arms onto the axles, they should slip on but may need to be jiggled a little to align
them properly. The swing arms have been installed at the factory during testing so they
should fit properly.

3. Install two 5/16" Flat Washers (97) onto the two 5/16" Hex Head bolts (70) and install and

tighten in the threaded holes in the ends of the axle.
