Edgestar Portable Air Conditioner
6

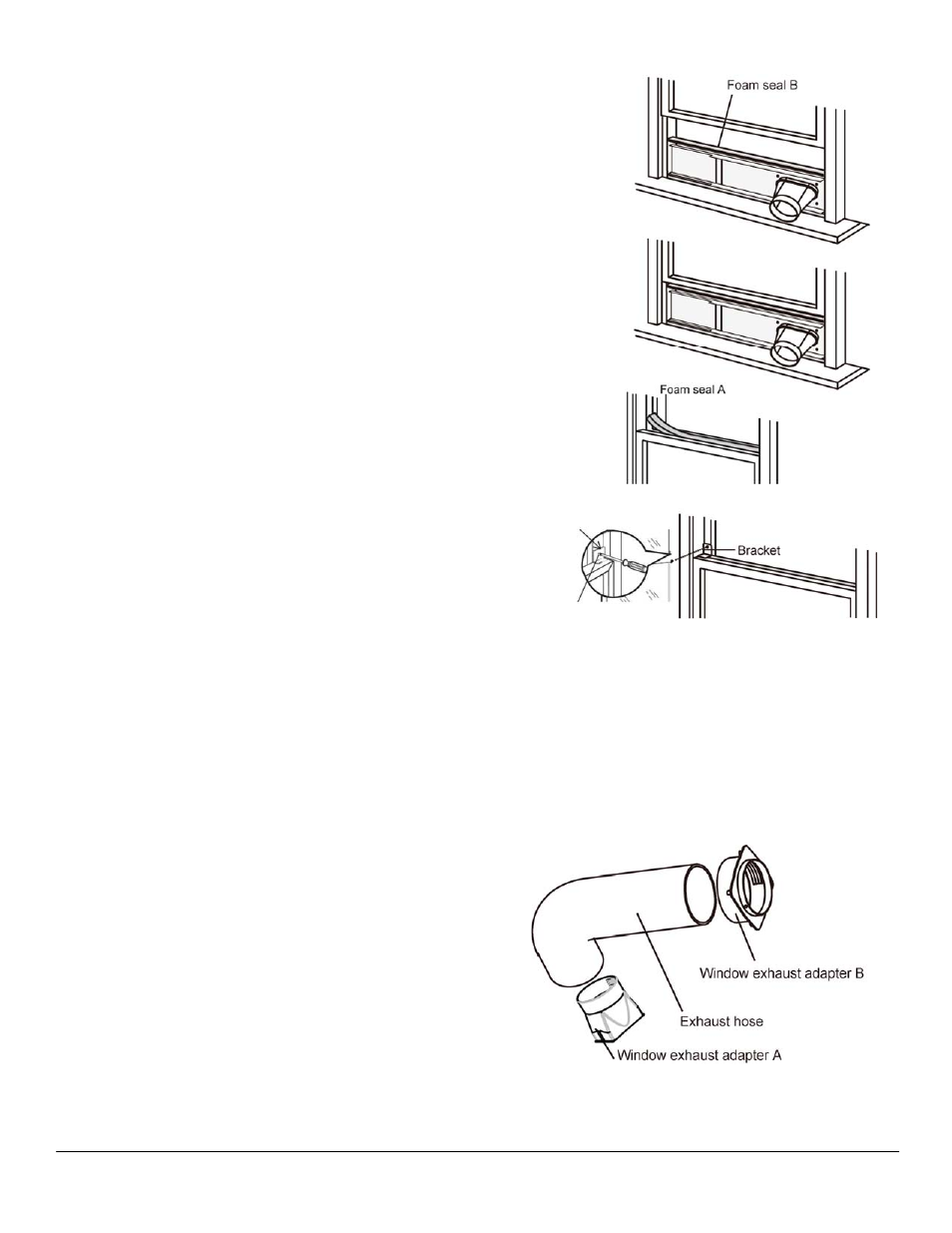

Installation of the Exhaust Hose
4
Cut the foam seal B to the proper
length and attach it to the window
panel.
Close the window sash securely
against the window panel.
Cut the foam seal A to an
appropriate length between the
top of the inner window sash and
outer window sash.
5
6
Attach the bracket with a screw.
7
Attach the window exhaust
adapter B and C to the exhaust
hose. Extend both ends of the
exhaust hose and insert them into
the window exhaust adapter A
and B and turn them until they
stop. Make sure they are securely
attached.
