5

3

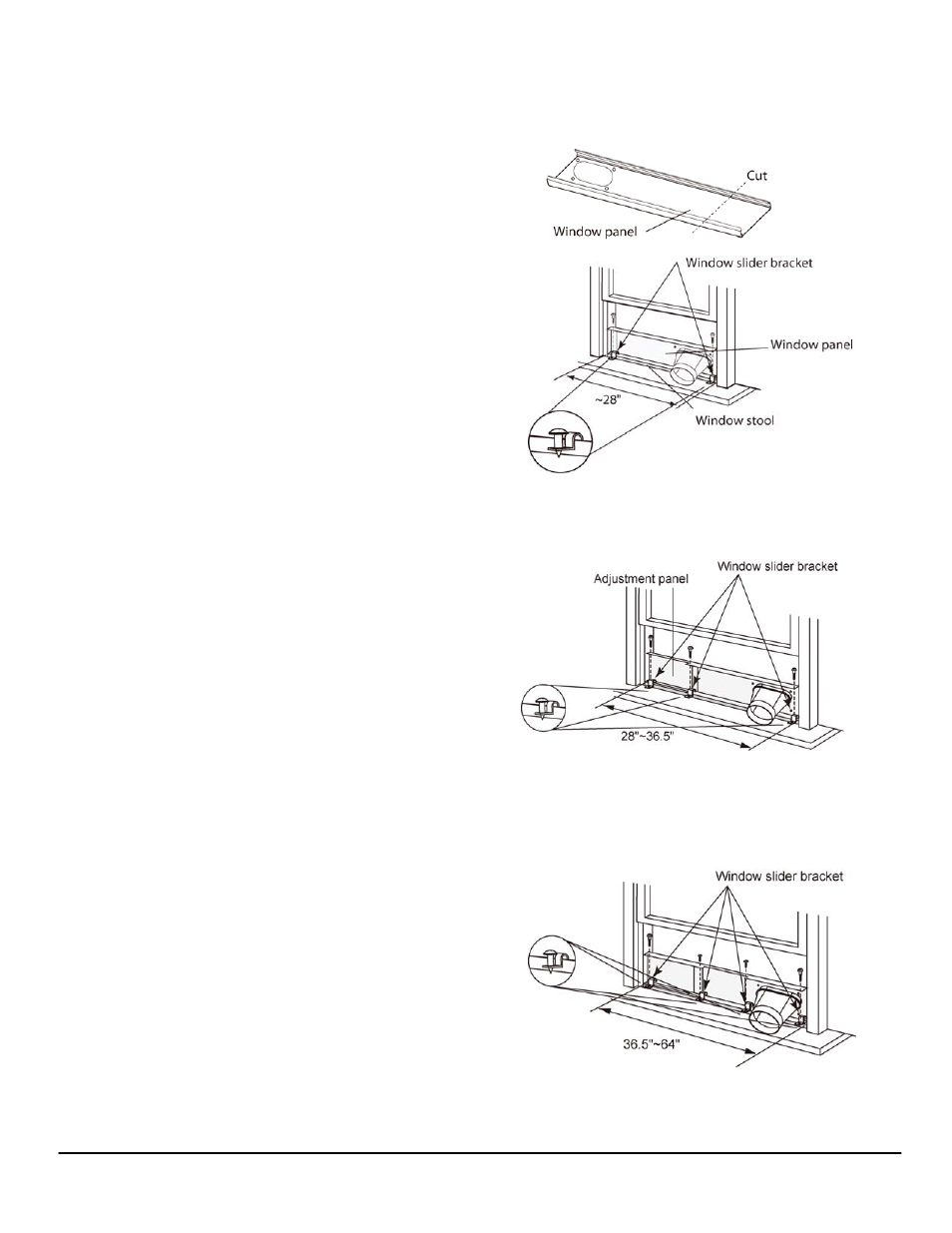

Attach the window panel to the
window panel
If the inner width of the window is
less than 28” (718 mm) wide:
1) Remove the adjustment panel
from the window panel, and cut
the window panel to the same
width as the panel.
2) Open the window sash and
place the window panel on the
windowsill.
3) Secure the window panel to the
windowsill.
If the inner width of the window is
between 28” (718mm) and 36.5”
(927mm) inclusive:
1) Open the window sash and
place the adjustable window panel
on the windowsill.
2) Slide the adjustment panel to fit
the window frame width.
3) Secure the panel to the
windowsill with four large wood
screws and four slider brackets.
If the inner width of the window is
between 36.5” (927mm) and 64”
(1625mm) inclusive:
1) Open the window wash and
place the extra window panel
provided on the windowsill.
2) Slide the adjustment panel to fit
the window frame width.
3) Secure the window panel to the
windowsill with four large wood
screws and four slider brackets.
a)
b)
c)
