Estate E-SC 1102 User Manual
Page 9
T
o
o
ls
N
e
e
d
e
d
•
Power Drill
•
Crescent Wrench
•
5/16” Drill Bit
•
Drill bit appropriate to
the anchoring hardware
used
•
Flat Head Mini Screw-
driver
Other items that may be needed prior to commencing installation.
Bolded items are necessary
to all applications.
•
Start and stop post, bracket or door stop. Although the FAAC Estate swing features soft start/
stop it is still recommended to have a closed stop post because having a start and stop point per-
manently in place may extend the life of the operator by absorbing some of the momentum of
the gate during open and close cycles.
•
16 gauge 2 conductor stranded direct burial low voltage wire will be required to run
power to your operator. Length is determined by distance between transformer power supply
and the control box.
•
8 - 5/16” Redheads, Lag Screws and shields, or other anchoring system will be needed to
fasten the column brackets to the column. Type will be determined by the type of column.
•
4 - 5/16” hex bolts will be needed to attach the gate brackets to the gate leafs.
•
Hardware to attach the control box to a post or fence.
•
Watertight connectors for running wires into the control box.
•
A voltage meter and digital camera may be necessary to run diagnostic checks.
•
If your transformer is going to be plugged into an outdoor outlet you will need to weatherproof
that outlet and transformer. Electrical boxes or plug covers can be obtained from a local hard-
ware store to accommodate both the plug and transformer.

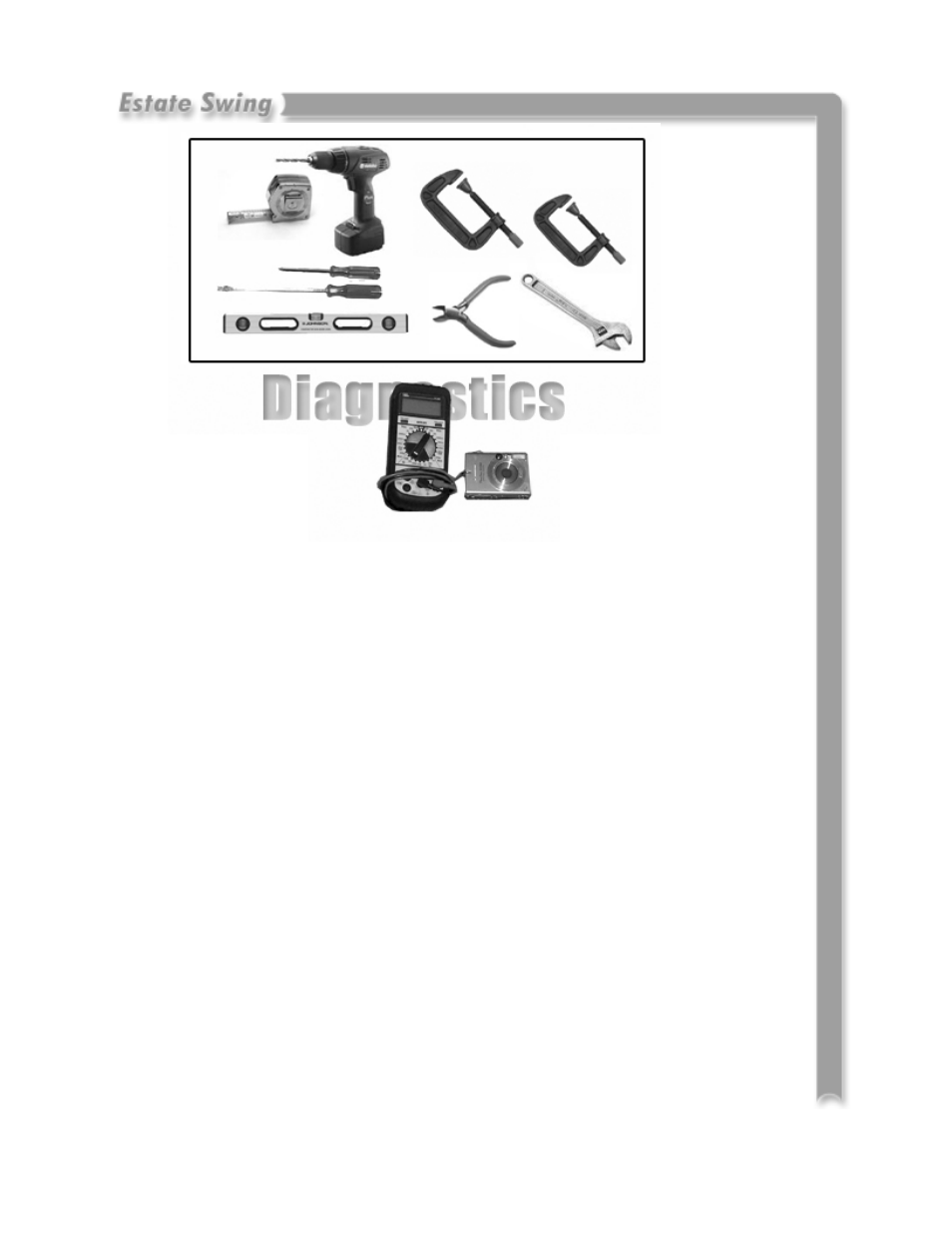

1.4
•
Phillips Head Screwdriver
•
Tape Measure
•
Level
•
Wire Strippers
•
C-clamps
•
Carpenters Clamp
