17

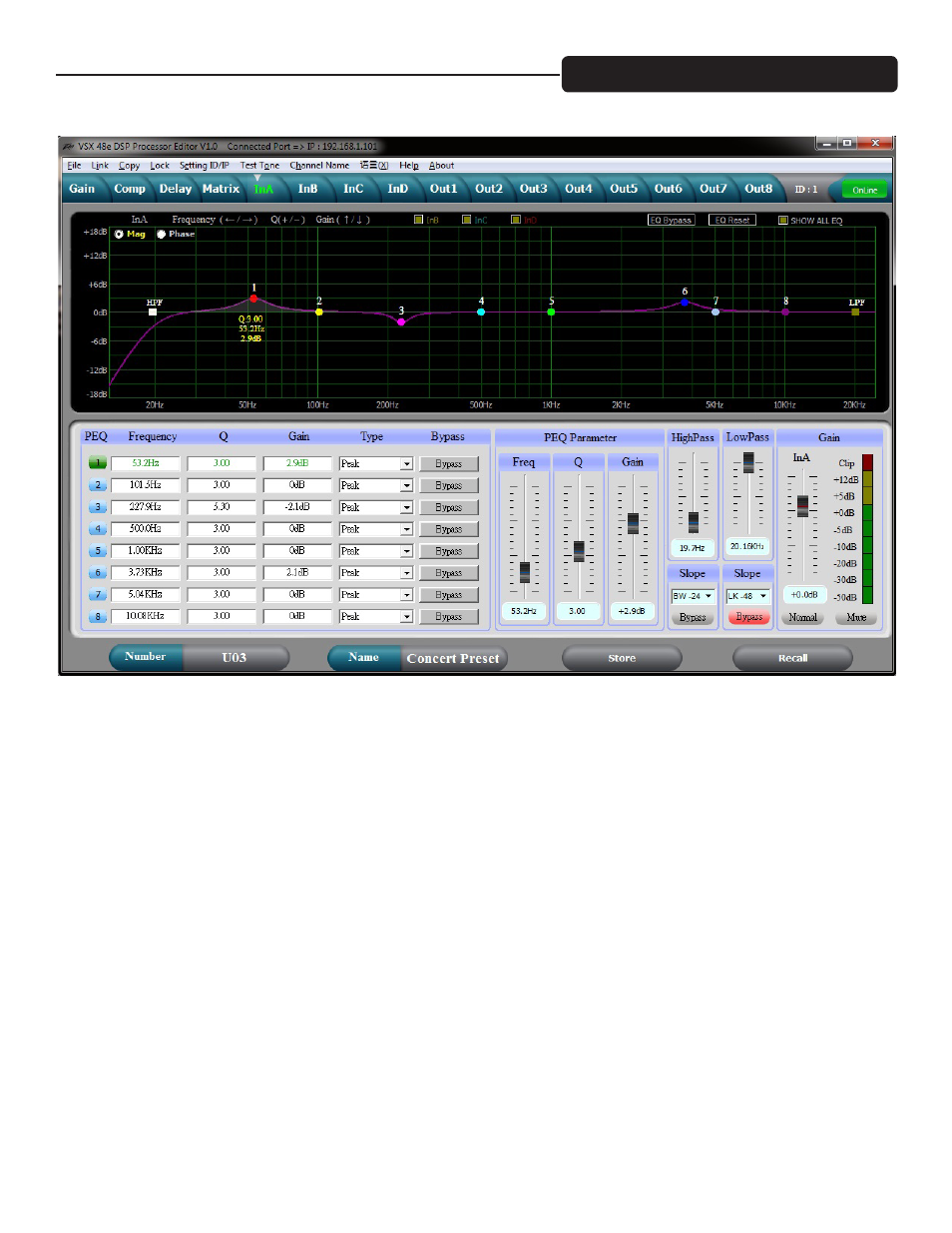

Input Eqaulization Edit Screen
The input equalization can be adjusted using this screen. When you select a PEQ band # at the bottom left of the
screen, the parameters for that band can be adjusted using the PEQ Parameter sliders. A PEQ band can also be
adjusted by selecting the corresponding band on the graph with the mouse and dragging it to set frequency and
amplitude. While holding mouse button down, the Q can be adjusted using the + and - keys. If you double click
on a parameter in the PEQ matrix, you can directly type in a new value. The graph can display either the mag-
nitude of filter responses or the resulting phase response. The graph of other inputs can also be overlaid on the
screen by clicking boxes on top of the graph.
