REASSEMBLY
1. Push down with even pressure on seat rails on both sides.
WARNING: Do not place your hand between seat rail and side
panel.

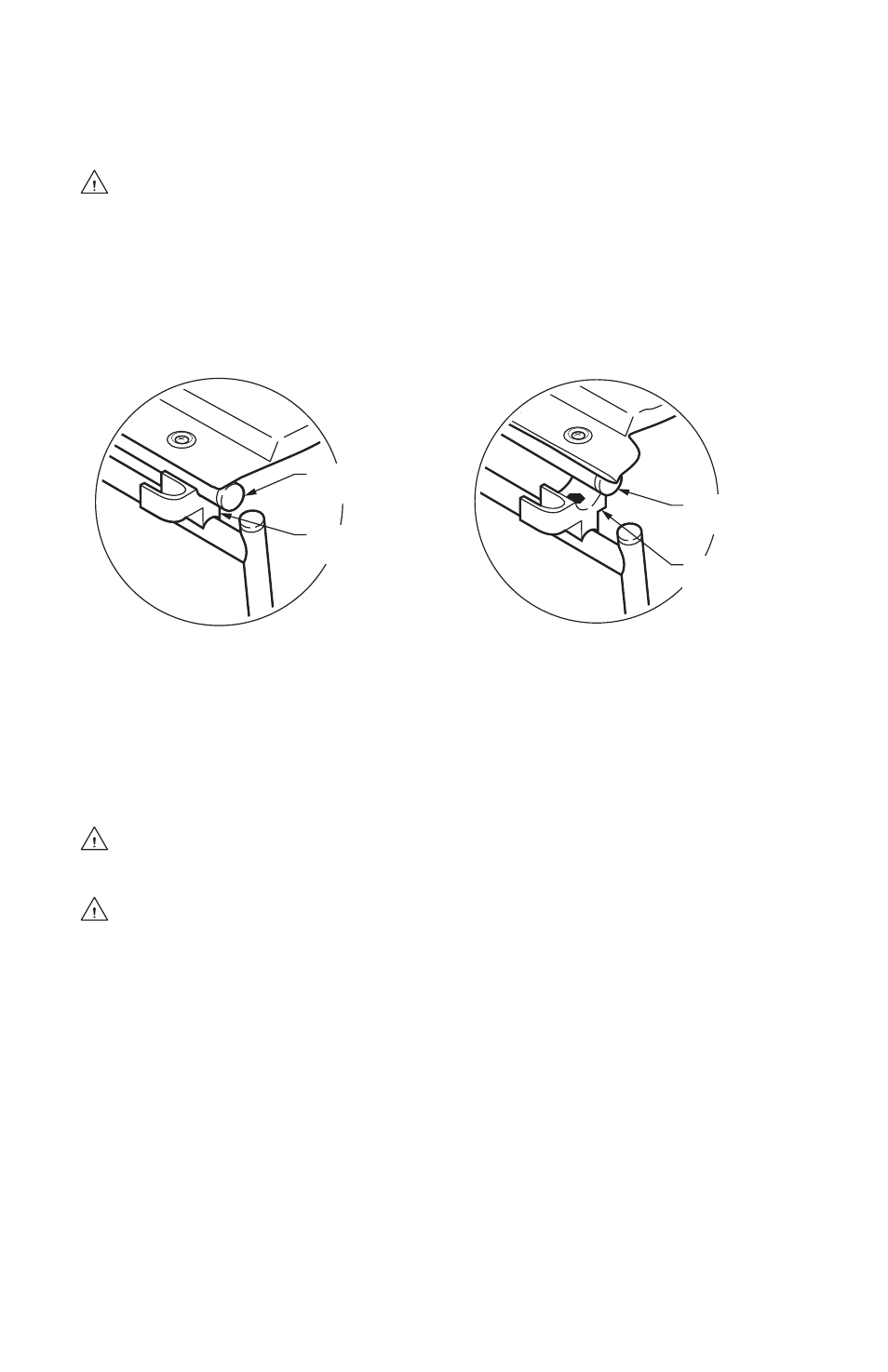

2. Push again if seat tubes are not positioned directly upon front seat
rail / arm cradles as shown below (arm not shown).
locked
correct position
right front
seat rail
seat rail &
arm cradle
not locked
right front
seat rail
seat rail &
arm cradle
3. Attach footrests or legrests to wheelchair.
4. Reinstall the seat cushion, if so equipped.
WARNING: When reassembling the wheelchair, ensure that seat
is completely open. If not, wheelchair is unsafe to occupy.
WARNING: Ensure that footrests or legrests are locked in place
before occupying or operating wheelchair
