3F02-INS-LAB-RevB10, March 2010 • Traveler L4 User Manual 17

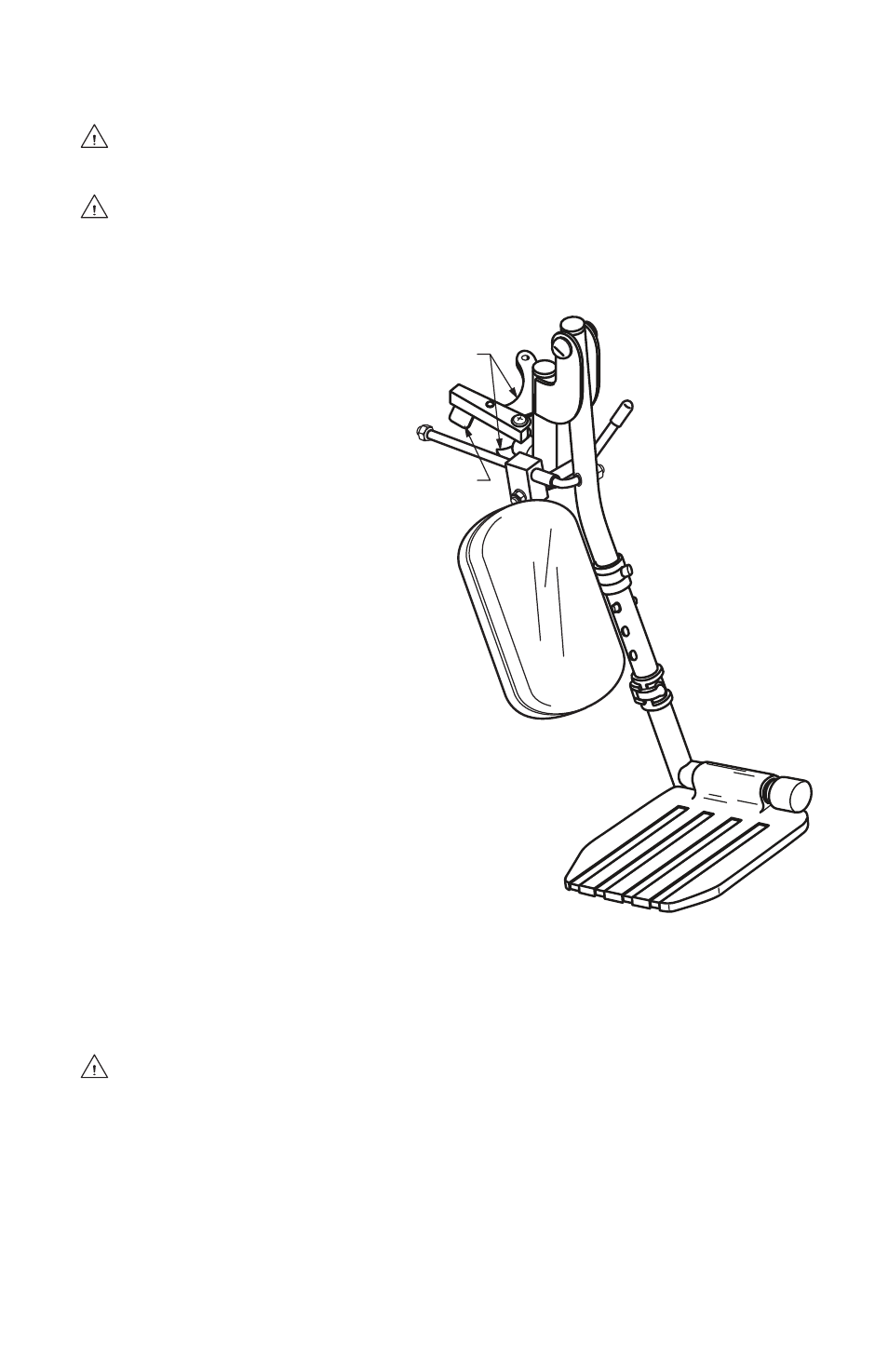

hinge
plate
swingaway
release lever
remove elevating legrest
ELEVATING LEGREST—DETACHABLE, SWINGAWAY
WARNING: The footplates' lowest point should be no closer to
the ground than 2-1/2 inches, to permit proper clearance.
WARNING: Do not stand on the footplates; this could cause the
wheelchair to tip.
Remove elevating legrest
1. To release lock, pull
swingaway release
lever forward, toward
front of wheelchair.
Legrest will swing
outward.
2. To remove, lift
legrest straight up
off wheelchair hinge
pins.
Attach elevating legrest
1. Set legrest on wheel-
chair (so that legrest
hinge plates engage
wheelchair hinge
pins).
2. Swing legrest in-
ward.
3. Ensure that legrest
is locked in place and that swingaway release lever is locked in a
rearward position, toward back of wheelchair.
WARNING: Ensure that legrests are locked in place before oc-
cupying or operating wheelchair.
