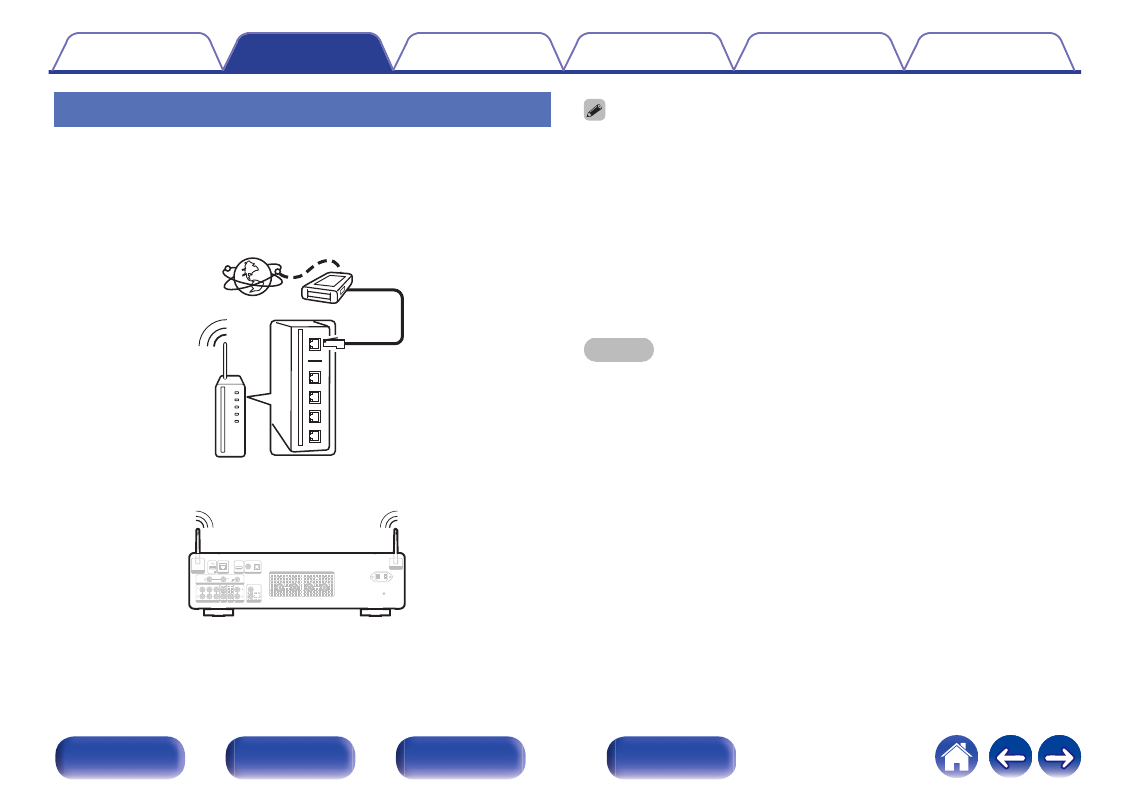

Wireless LAN
When connecting to the network via wireless LAN, connect the external
antennas for Bluetooth/wireless connectivity connection to the rear panel
and stand them upright.
To connect to a wireless LAN router, download the HEOS App to your
smartphone, and set up this unit. ( v p. 42)
Internet
Modem
To WAN side
Router with access point
DIGITAL AUDIO IN DIGITAL AUDIO IN
AUDIO IN AUDIO IN
AUDIO IN AUDIO IN
AUDIO OUT AUDIO OUT PRE OUT PRE OUT POWER AMP IN POWER AMP IN
HDMI ARC HDMI ARC NETWORK NETWORK OPTICAL OPTICAL COAXIAL COAXIAL
CD CD LINE LINE
PHONO PHONO SIGNAL GND SIGNAL GND
RECORDER RECORDER RECORDER RECORDER SUBWOOFER SUBWOOFER
5V/1A 5V/1A
IN IN
REMOTE CONTROL REMOTE CONTROL
OUT OUT
SPEAKERS SPEAKERS
AC IN AC IN Bluetooth / Wi-Fi Bluetooth / Wi-Fi ANTENNA ANTENNA
Bluetooth / Wi-Fi Bluetooth / Wi-Fi ANTENNA ANTENNA
0
When using this unit, we recommend you use a router equipped with the following
functions:
0
Built-in DHCP server
This function automatically assigns IP addresses on the LAN.
0 Built-in 100BASE-TX switch
When connecting multiple devices, we recommend a switching hub with a
speed of 100 Mbps or greater.
0
Only use a shielded STP or ScTP LAN cable (readily available at electronics
stores). (CAT-5 or greater recommended)
0
The normal shielded-type LAN cable is recommended. If a flat-type cable or
unshielded-type cable is used, other devices could be affected by noise.
NOTE
0
The types of routers that can be used depend on the ISP. Contact your ISP or a
computer shop for details.
0
This unit is not compatible with PPPoE. A PPPoE compatible router is required if
your contracted line is not set using PPPoE.
0
Do not connect a NETWORK connector directly to the LAN port/ Ethernet
connector on your computer.
0
Various online services may be discontinued without prior notice.
