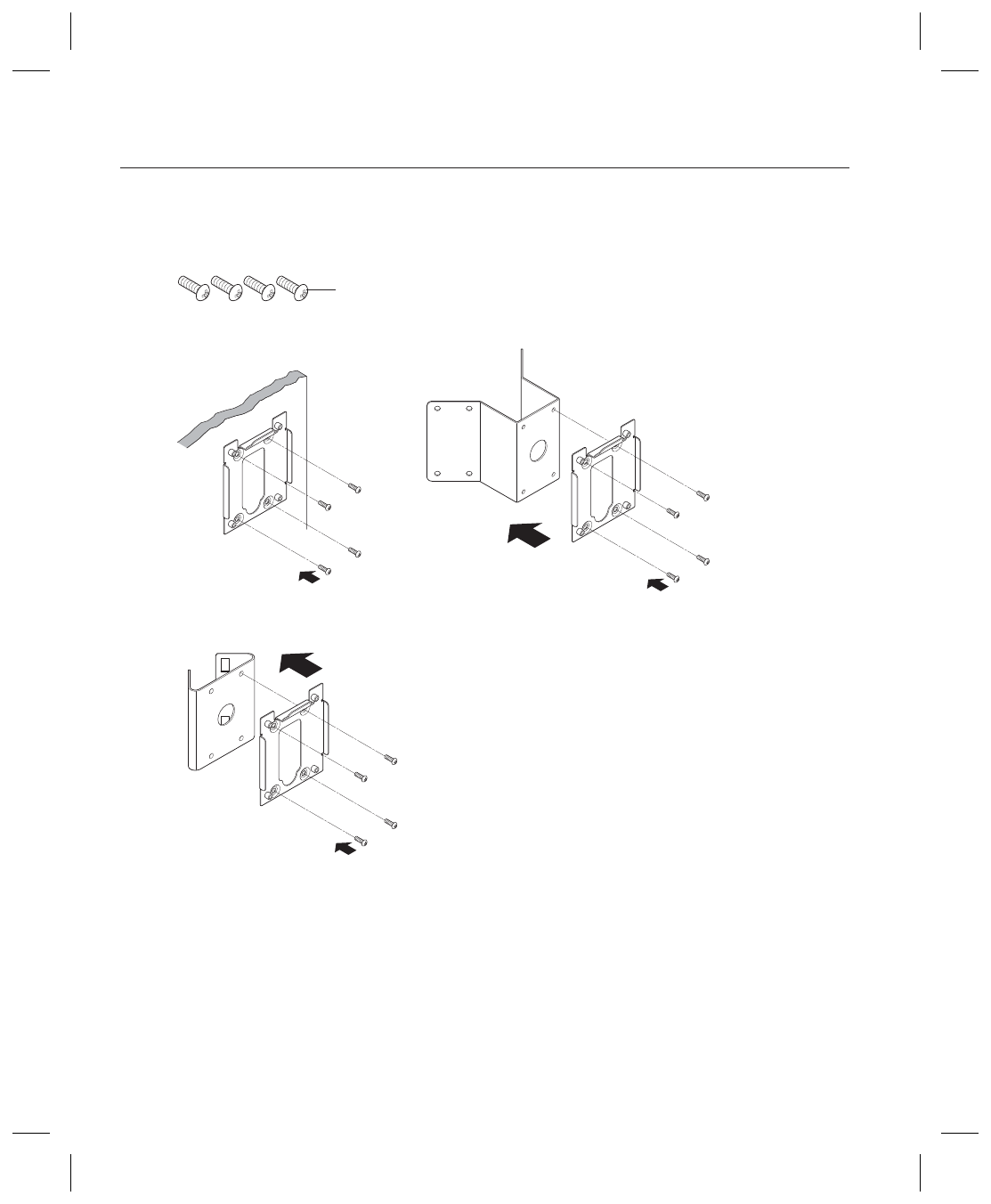

4. Attach the install bracket to the wall, corner mount (SBP-300KM/SBP-300KMW) or pole mount
(SBP-300PM/SBP-300PMW) using the M10 screws.
Only use the 4 screws included in the accessories as shown in the image below.
Screw (circular head, with M10 x L22 screw)
• Installation on the wall
• Pole Mount
• Corner Mount
5. Place the housing on the install bracket as shown in the image.
` To install it on the wall, attach the rubber housing as shown in the figure.
The rubber is not waterproof. It is decorative only, serving to hide a gap.
Therefore, if the cable is inserted into the main body separately and not through the duct on the wall, the insertion
point of the cable must be completely waterproof.
If this is not done, any water leaks may cause problems.
6. Secure the housing to the install bracket using 4 M8 screws in the same ways as "No. 4" in the
installation procedure.
