6_ installation & connection
installation & connection
INSTALLATION

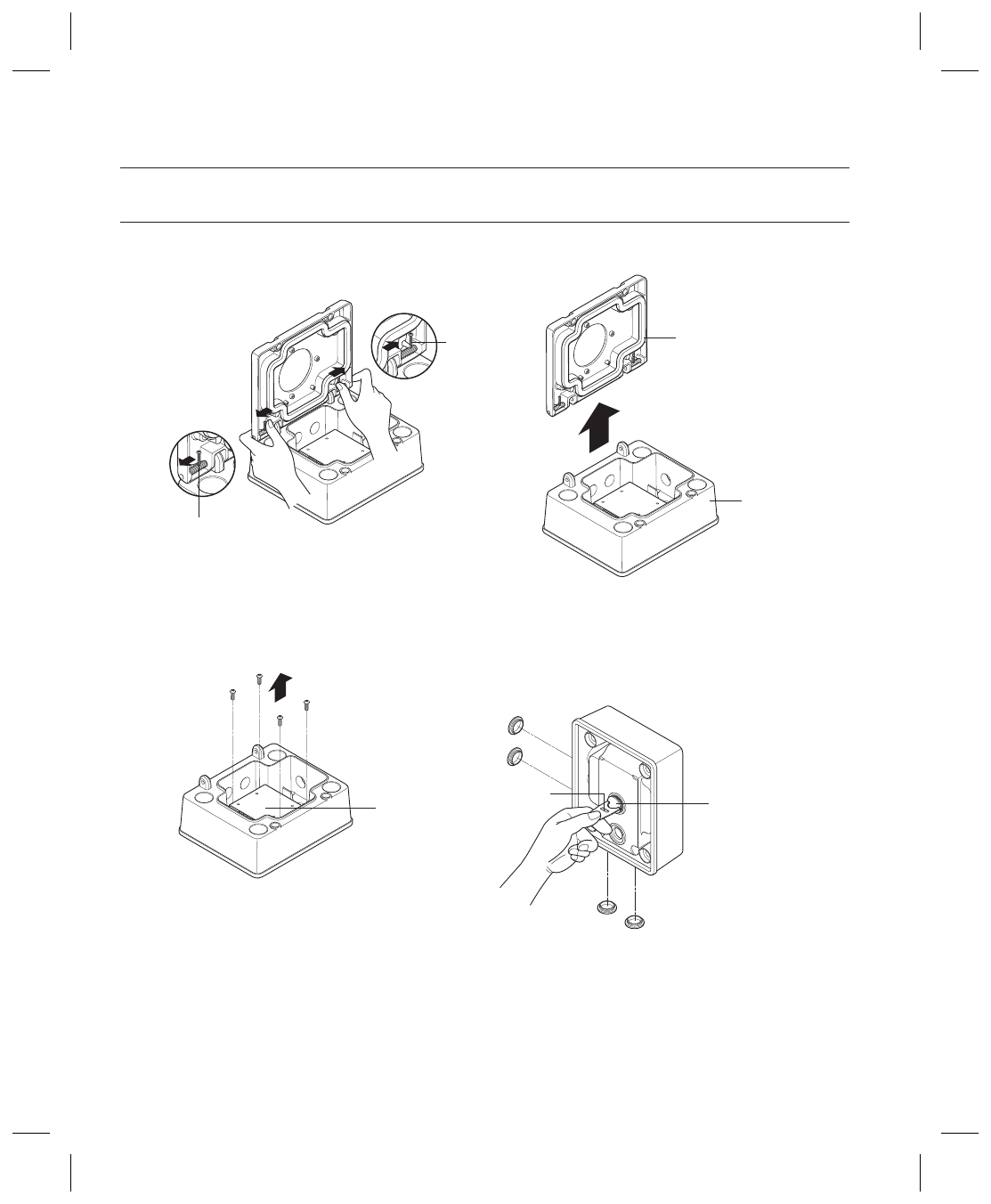

1. Push the locking lever on the door to separate the housing and door.
2. Undo the four screws to separate the bracket adaptor.
Lock the unused piping hole with the attached mount cap.
Use a mount cap fastener to attach the mount cap.
BRACKET
ADAPTOR
Mount cap
fastener
Mount cap
3. Remove the double-sided tap on the rear side of the gasket and affix it to the door.
Attach the wall mount to the door using the four M10 screws.
< Tighten each of the four screws a little at a time so that the wall mount is evenly pressed
to the gasket. >
DOOR
HOUSING
LOCKING
LEVER
LOCKING LEVER
