English _7
installation & connection
INSTALLATION
1. Push the locking lever on the door to separate the housing and door.
2. Undo the four screws to separate the bracket adaptor.
Lock the unused piping hole with the attached mount cap.
Use a mount cap fastener to attach the mount cap.

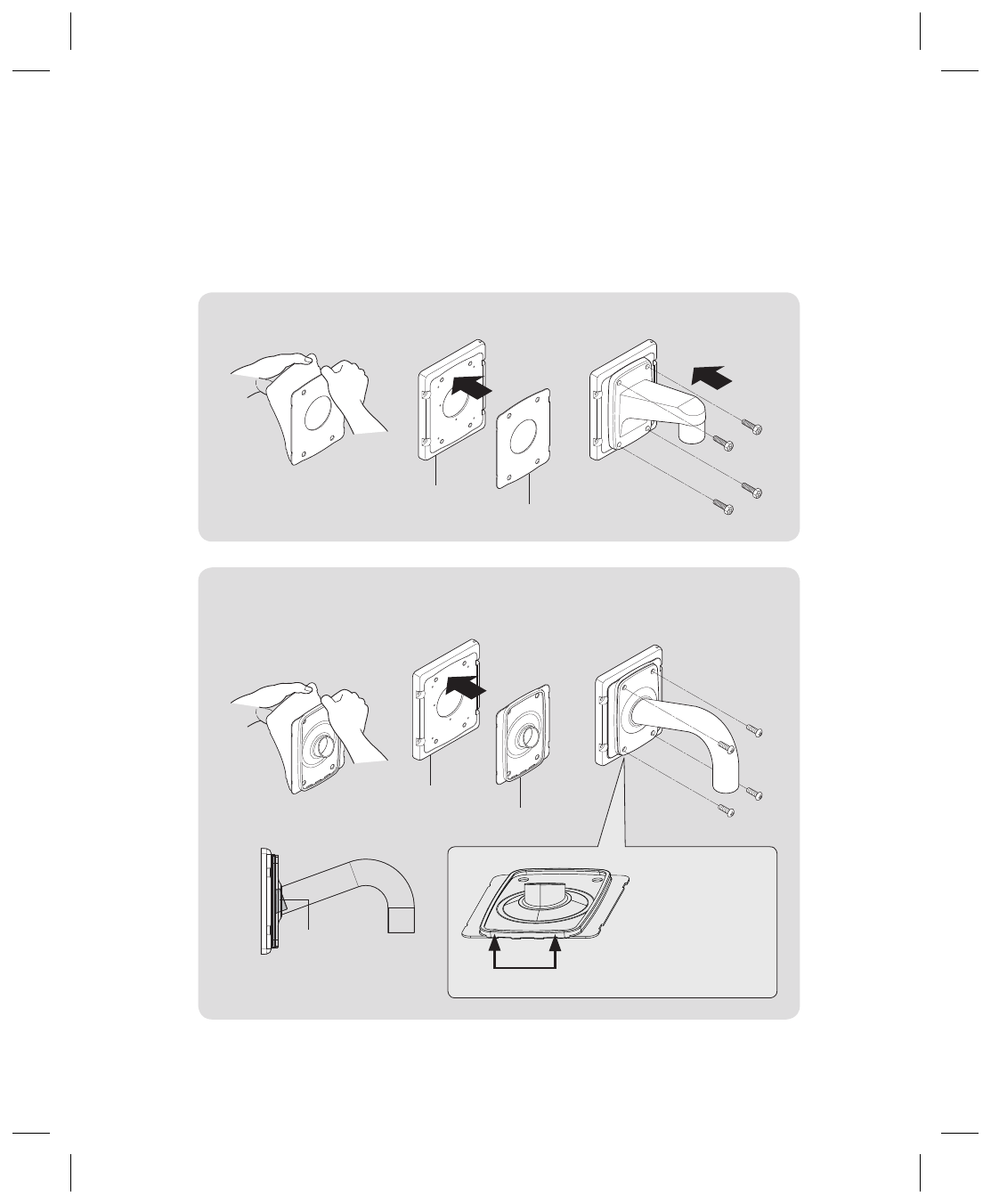

3. Remove the double-sided tap on the rear side of the gasket and affix it to the door.
Attach the wall mount to the door using the four M10 screws.
< Tighten each of the four screws a little at a time so that the wall mount is evenly pressed
to the gasket. >
• Use of SBP-300WM1/SBP-300WMW1 wall mount (with M10 x L20 screws)
DOOR
GASKET
HOUSING
• Use of SBP-300WM/SBP-300WMW wall mount (evenly securing the wall mount
inside the gasket groove as shown in the image below.) (with M10 x L12 screws)
DOOR
GASKET
GASKET
J Please assemble
the set in such a
way that the lock tab
faces down into the
slot in the installation
direction.
