7. Insert the external cable into the main body using a pipe.
Wrap the thread of the pipe screw with Teflon tape to protect against water leakage problems.
(Make sure that water leaks will not cause a problem at the cable insertion point.)
8. Install the power adaptor and media convert using the bracket adaptor, and connect the external
cable.
9. Pull the cable out through the door and wall mount and mount the door on the housing.
(Return the locking lever to its original position and check that the hinge is properly attached to the
housing.)
10. Fasten the door to the housing using a hexagonal wrench. (Tighten the screws while pressing the
door with your hand as shown in the image below. Then tighten each of the screws a little at a
time to make sure that the door is tightly pressed to the housing.)

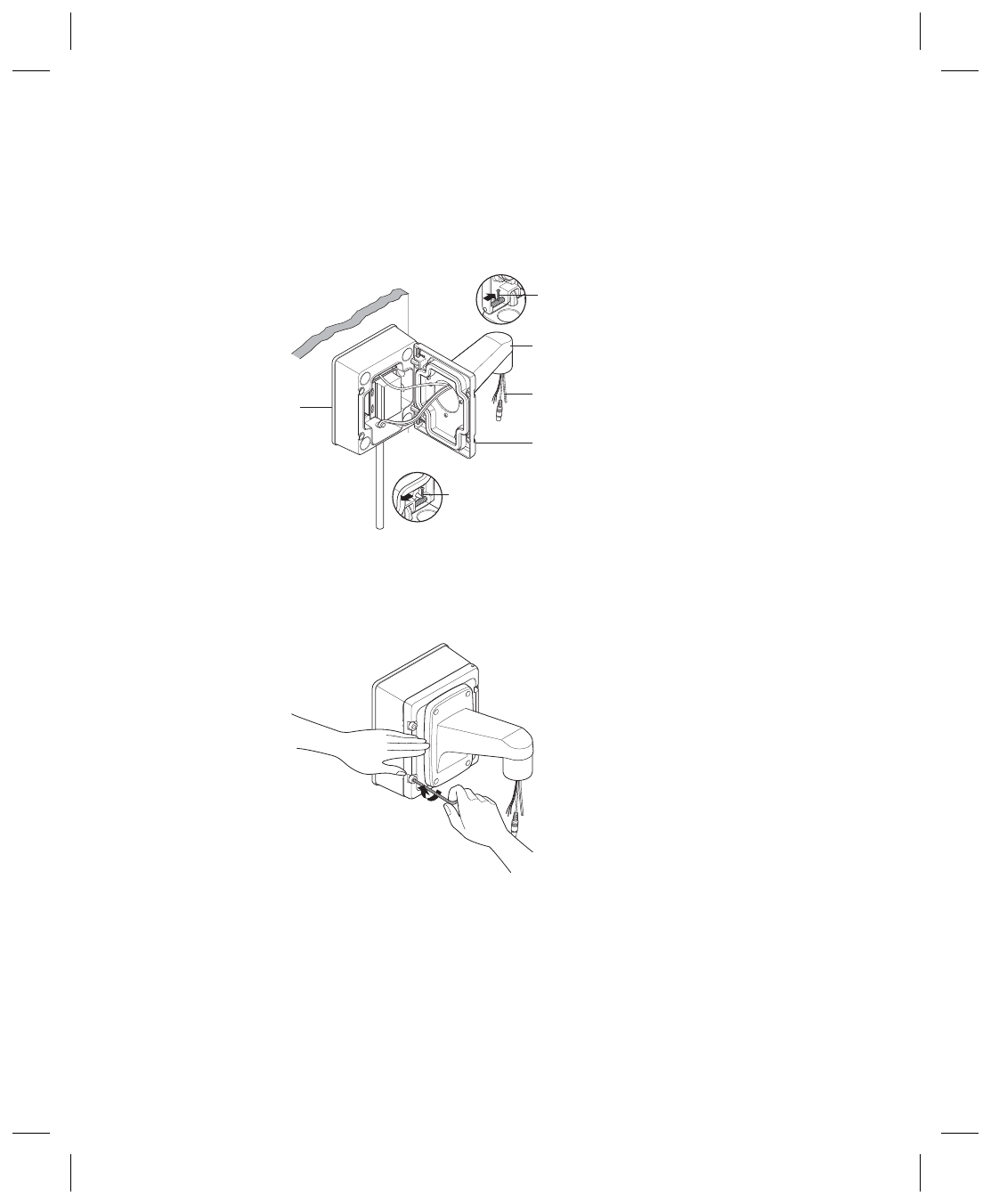

Wall Mount
Cable
DOOR
HOUSING
LOCKING LEVER
LOCKING LEVER
