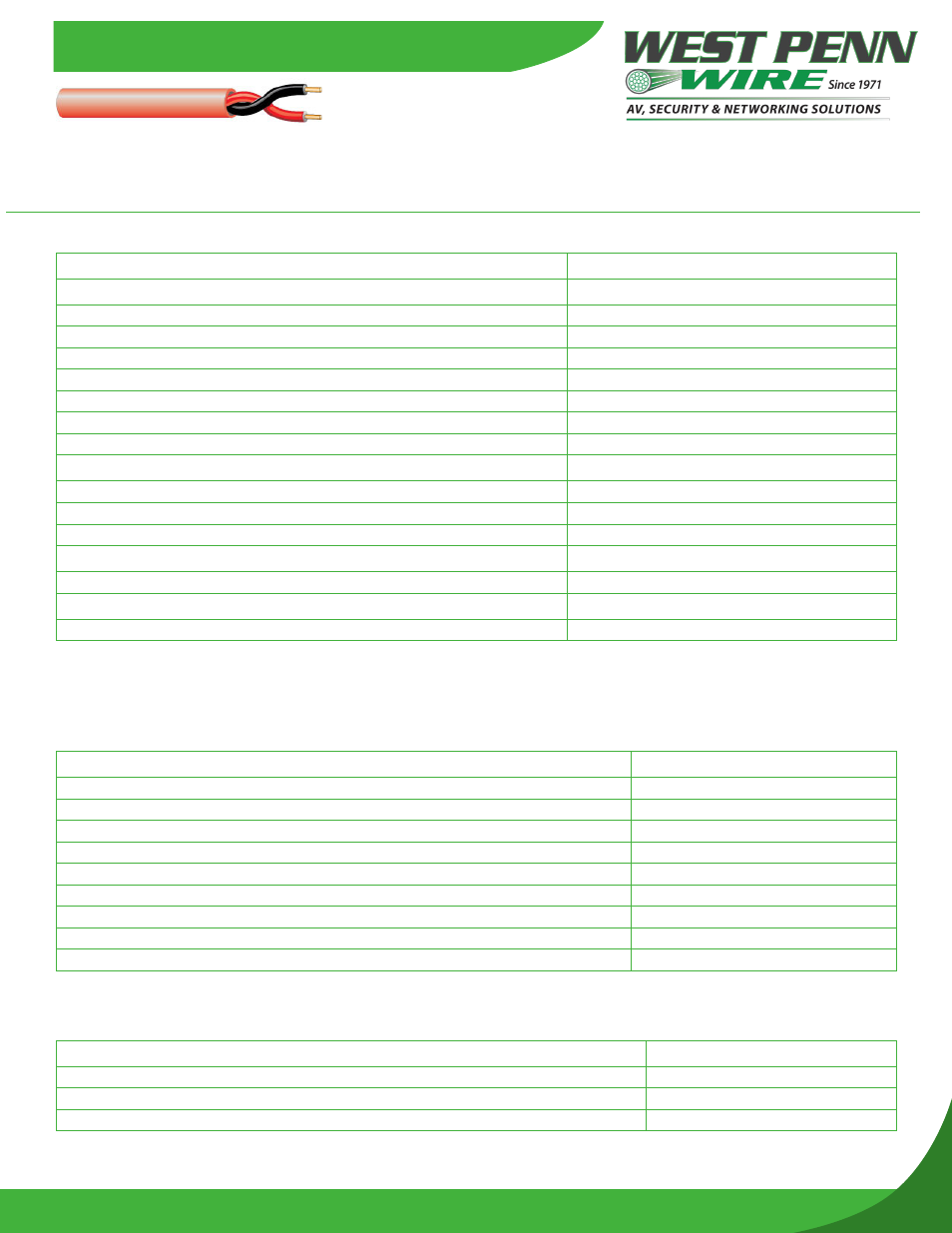

West Penn 990 16 AWG 2-Conductor Unshielded Fire Alarm Cable (1000', Red) - Manual

CONSTRUCTION & DIMENSIONS -
CONDUCTOR PARAMETER -
• Number of Conductors 2
• AWG Size 16
• Conductor Stranding Solid
• Conductor Type Bare Copper
• Nominal DCR 4.1 Ohm/1000ft
• Cabling Lay Length 2.75 in
• Twists/Foot 4.4 twist/ft
INSULATION PARAMETER -
• Insulation Type Thermoplastic
• Insulation Thickness 0.008 in
• Insulation Color Code 1. Black 2.Red
SHIELDING PARAMETER -
• Shield Type None
ELECTRICAL CHARACTERISTICS -
• Nom. Cap. Between Conductors 23 pF/ft
OVERALL CONSTRUCTION PARAMETERS -
Jacket Type PVC
Jacket Thickness 0.022 in
Nominal Cable O.D. 0.168 in
Plenum No
NEC UL Rating FPLR
RoHS Compliant Yes
Pull Tension 62 lbs
Bend Radius 1.512 in
Cable Weight 25 lbs
OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS -
UL Flammability UL1666 Vertical Shaft
Operating Range -20 to 75 Deg C
UL Voltage Rating 300
Construction & Dimensions
Overall Construction
Overall Electrical & Optical Characteristics
Detailed Specification & Technical Data
990
Fire Alarm Signaling
16/2 Solid Unshielded FPLR
