1 Getting to Know the Camera
Getting to Know the Camera
Take a few minutes to familiarize yourself with the names and
functions of camera controls and displays. You may find it
helpful to bookmark this section and refer to it as you read
through the rest of the manual.
Refer to this section for the names and locations of camera
controls and displays.

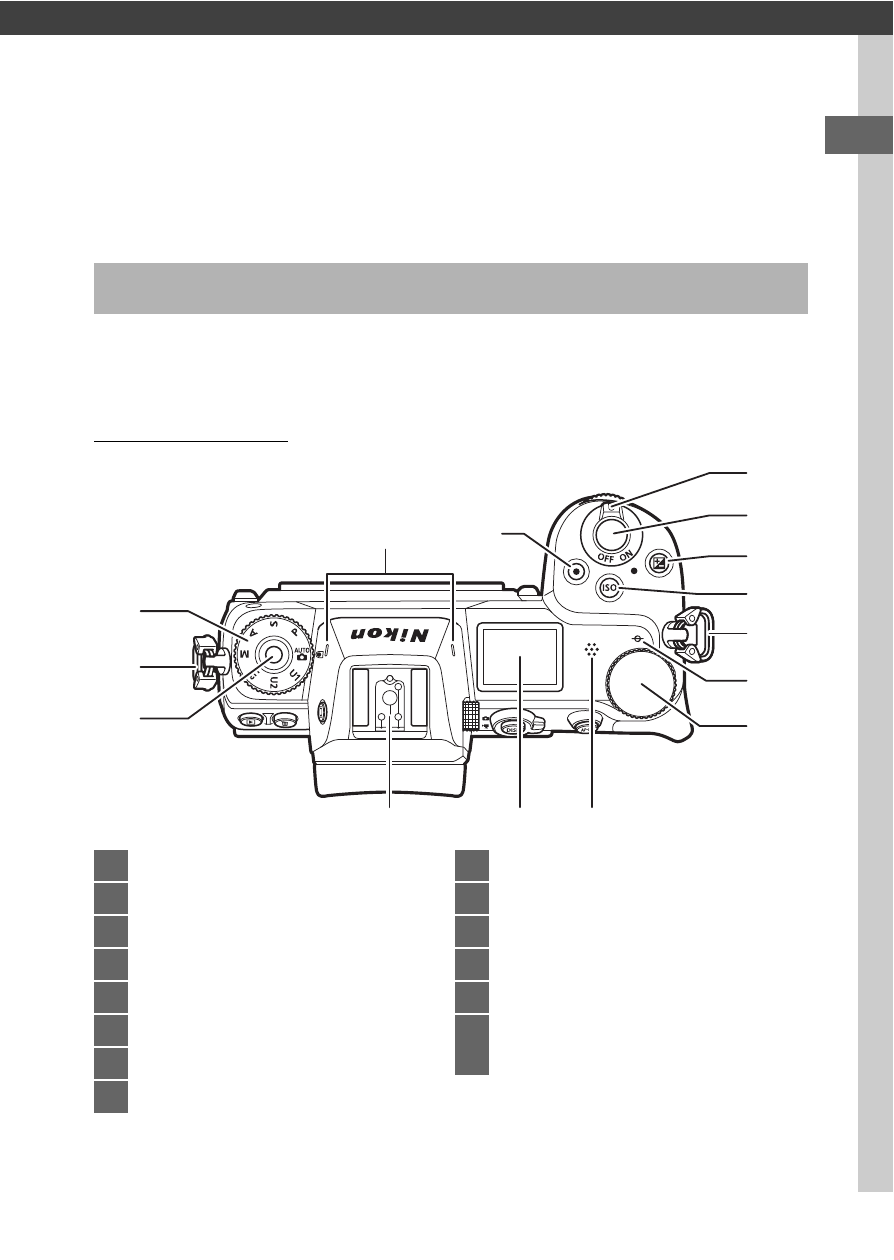

Camera Body
Parts of the Camera
2
1
5
3
10
8
7
6
11
2
9
14 13 12
4
1 Mode dial........................................ 69
2 Eyelet for camera strap................ 27
3 Mode dial lock release ................. 69
4 Stereo microphone.....................118
5 Movie-record button ................... 45
6 Power switch............................38, 41
7 Shutter-release button ................ 41
8 E button......................................... 81
9 S button .................................... 78
10 Focal plane mark ( E ) ................. 61
11 Main command dial..................... 17
12 Speaker
13 Control panel ..................5, 149, 169
14 Accessory shoe (for optional flash
unit)..................................... 179, 187
