Rear – Eizo ColorEdge CS2740 26.9" 16:9 Wide Gamut 4K IPS Monitor User Manual
Page 8
8
Chapter 1
Introduction
●
Rear
5
7
6
3
10
9
14
8
15
4
11
12
13

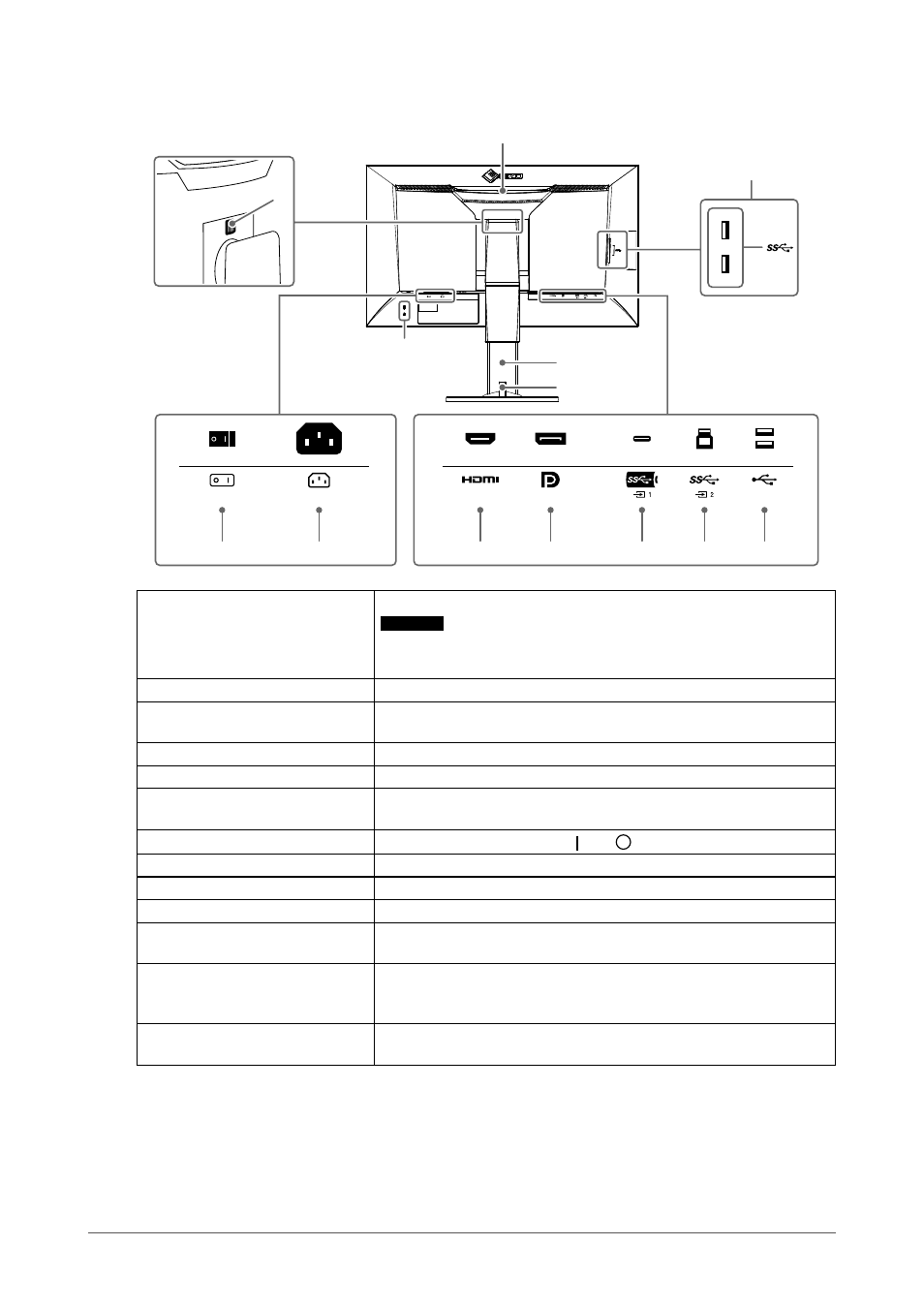

3. Transportation handle
This handle is used for transportation.
Attention
•
Firmly grasp and hold the monitor by the bottom while grabbing the
handle, and carefully convey the monitor so as not to drop it.
4. Lock button
Use this button when removing the stand from the monitor.
5. USB Type-A connector
(USB downstream port)
Connects to a peripheral USB device. Supports USB 3.1 Gen 1. This is
a blue-colored connector.
6. Security lock slot
Complies with Kensington's MicroSaver security system.
7. Stand
*1
Adjusts the height and angle (tilt and swivel) of the monitor.
8. Cable holder
Covers the monitor cables. For details on attaching the cable holder, see
“8-1. Attaching/Detaching the Cable Holder” (page 41)
.
9. Main power switch
Turns the main power on or off. : On, : Off
10. Power connector
Connects the power cord.
11. HDMI connector
Connects to an external device that has HDMI output.
12. DisplayPort connector
Connects to an external device that has DisplayPort output.
13. USB Type-C connector
(USB upstream port)
Connects a device that supports USB Type-C.
14. USB Type-B connector
(USB upstream port)
Connects to the USB cable when using software that requires a USB
connection, or when using the USB Hub function. This is a blue-colored
connector.
15. USB Type-A connector
(USB downstream port)
Connects to a peripheral USB device. Supports USB 2.0.
*1 An optional arm (or an optional stand) can be attached by removing the stand section (refer to
