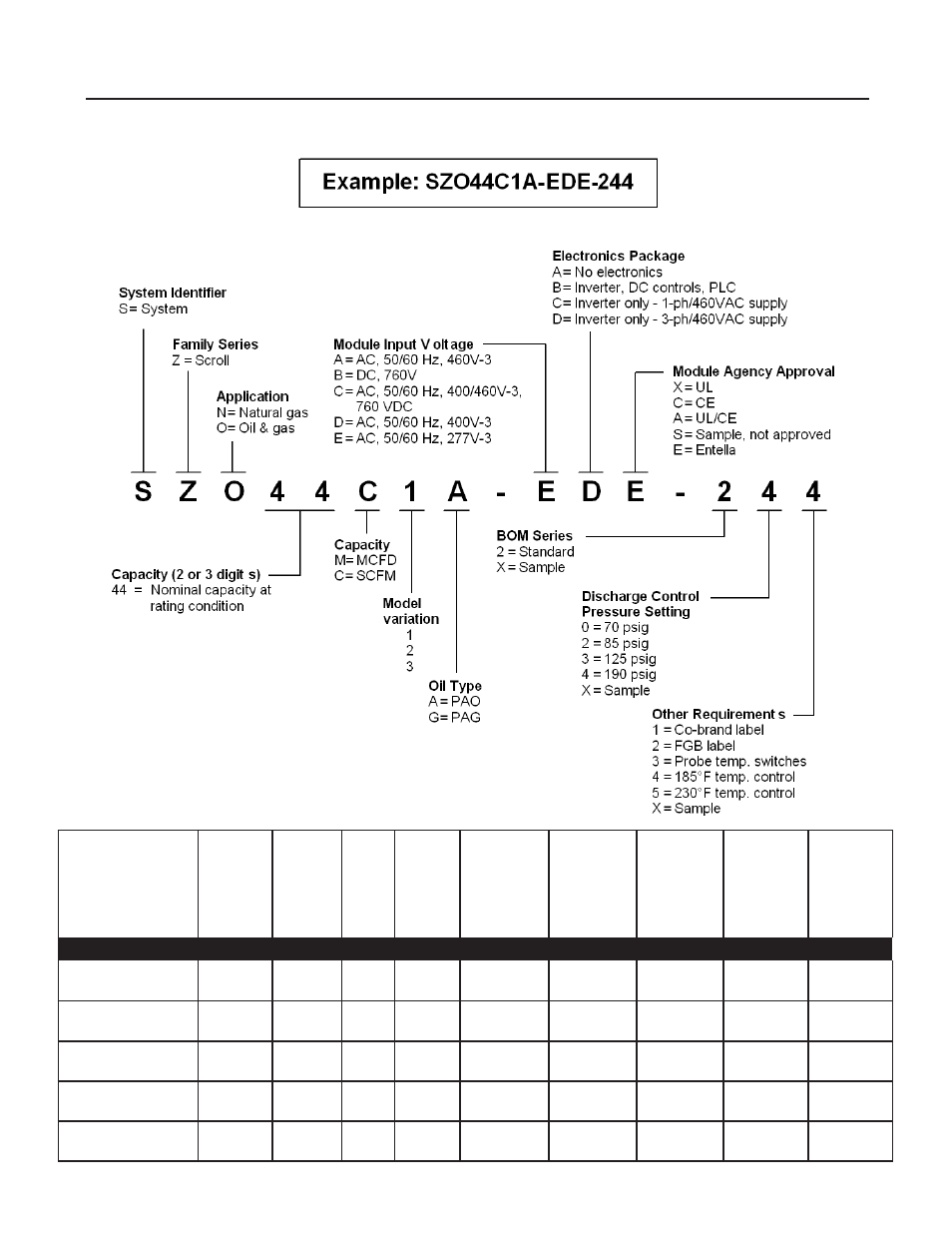

Dual-Compressor Module Compressor Module Nomenclature
iv 2006SSD-75 R4 (10/10)
C
ompressor
m
odule
N
omeNClature
Model
Max
Delivery
Pressure
(PSIG)
Max
Flow
(MCFD)
Drive
HP
High
Press
Switch
Setting
(PSIG)
Low
Press
Switch
Setting
High Temp
Setting
°F (°C)
Oil
Thermal
Bypass
Valve
Setpoint
°F (°C)
Gas Bypass
Valve
Module
Weight
(Lbs.)
Dual Scroll Units
SZO56C1A-EDE-110 150 260 30 215
0.75 PSIG
(52 mbarg)
240 (116) 200 NO 625
SZO44C1A-EDE-140 190 200 30 215
0.75 PSIG
(52 mbarg)
240 (116) 200 NO 625
SZO44C1A-EDE-244 190 200 30 215
0.75 PSIG
(52 mbarg)
240 (116) 200 YES 625
SZV44C1A-EDE-140 190 200 30 215
0.75 PSIG
(52 mbarg)
280 (138) 250 NO 625
SZV32C1A-EDE-150 275 150 30 290
0.75 PSIG
(52 mbarg)
280 (138) 250 NO 625
