Dual-Compressor Module Introduction
1.2 The Compressor
The Compressor refers to the Copeland Scroll ® Compressor. Each Compressor Module has two
Compressors. Figure 2 shows a cross-section of a Compressor and its key components.

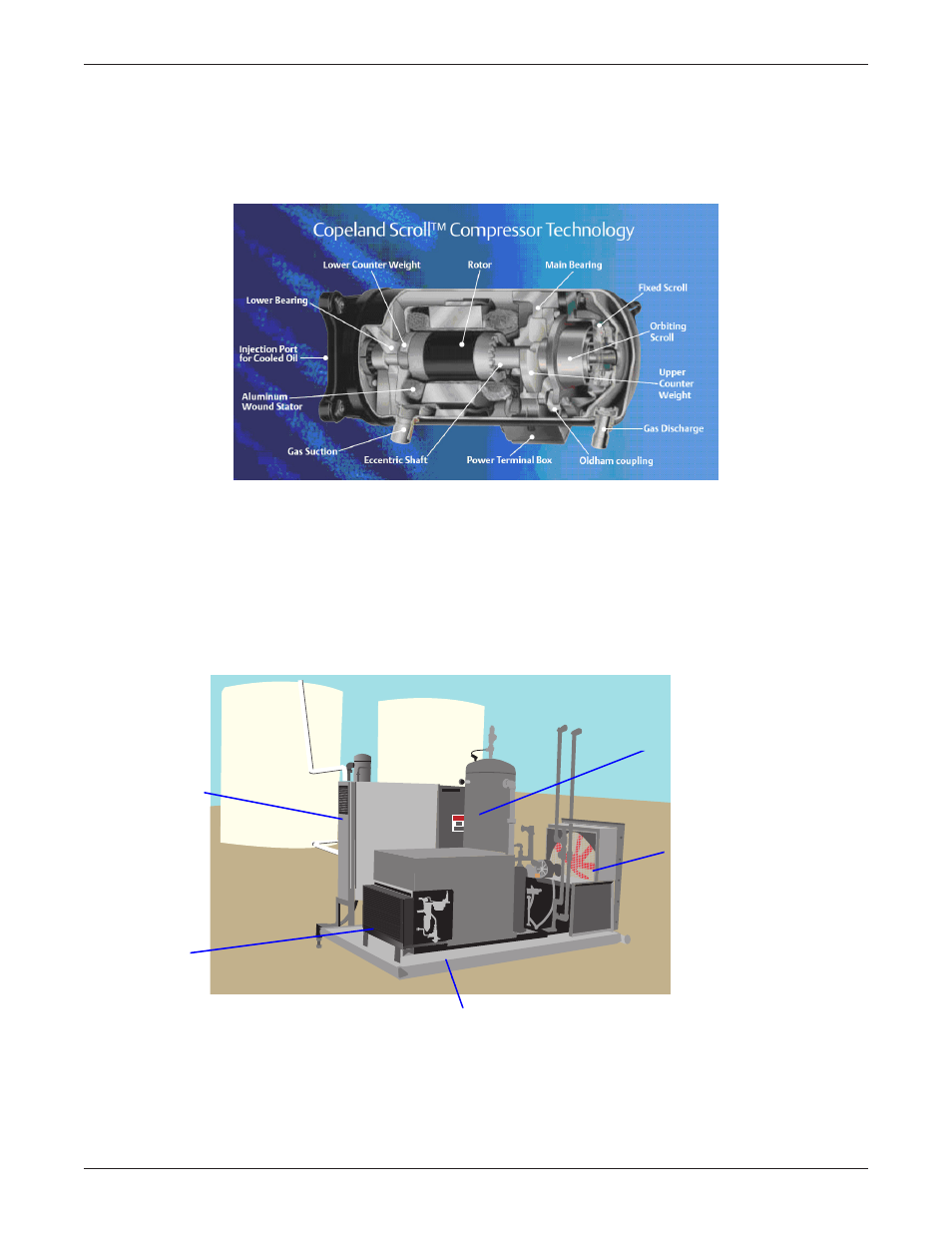

Figure 2 Copeland Scroll ® Compressor Cross Section
1.3 The Compressor Package
The Compressor Package consists of the Compressor Module housed in an assembly ready for service
in the field. Equipment Packagers customize the assembly and complete the fabrication for Compressor
Modules for each application. Figure 3 shows a simplified example of a Compressor Package.
Figure 3 Typical Compressor Package
Oil
cooler
Gas aftercooler
(if applicable)
Control and
power panel
Compressor
Module
Inlet gas scrubber
for liquid removal
