SETP 3:

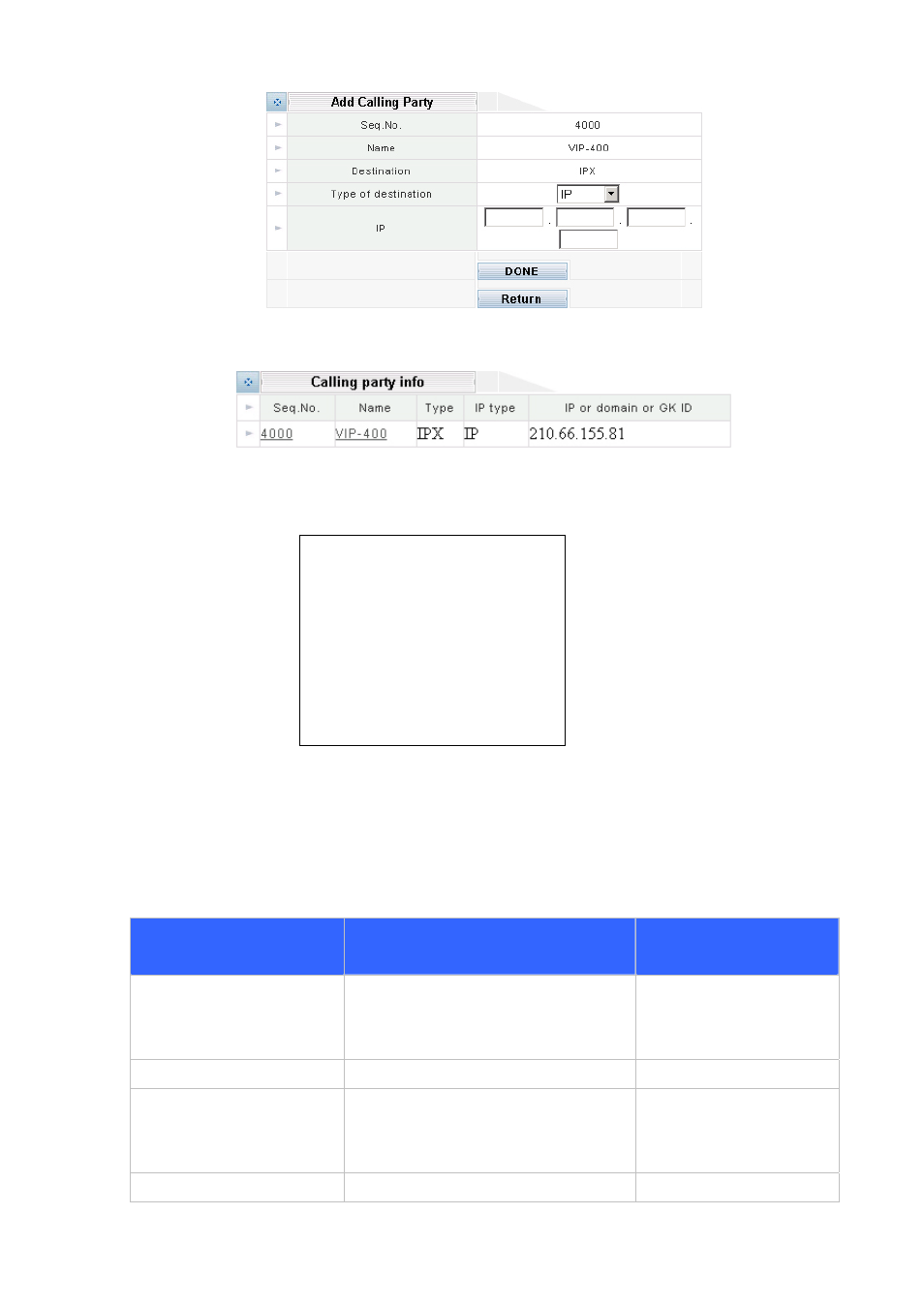

After clicking DONE button, and then the configuration screen appears below.

VIP-400 Procedure:

• Please log on VIP-400 via telnet session or console port connection, and type the following

commands:

After these configurations, please refer to following steps:

VIP-400 Usage:

Please pick up the VIP-400 telephone and dial 121 to connect to IPX-1500.

IPX-100 Usage:

Case 1:

IPX-1500 phone 121 calls to Ext. 801 via VIP-400

Human operation at IPX

Caller side

Equipment operation

Human operation at

VIP Receiver Side

Pick up phone 121

1.IPX-1500 dial tone is heard.

2.the first LED will be at the green color in

Phone 1 of front panel.

Dial *6

1.Hear dial tone

Dial 4000 + 888

1.Du Du is heard

2.The first LED is lighting in LINE 1 of

VIP-400 front panel.

Dial 801

2.PBX communication is going

atpm req

atpm aadd 888 1 3 1 3

atpm aadd 121 1 3 10 0

atpm hadd 10 2 10

atpm dadd 210.66.155.80

atpm done

atpm store
