Installation of EZ 250
Installing EZ 250 with ONE Device
1. Pull the two pieces of Cat 5 cable from the controller location to the data
projector location
2. Place the EZlink interface near the data projector location. This is
recommended because you will already have a 110v power outlet there.
3. Connect the control cable that is coming from the data projector into the
port that it was programmed for, either RS-232-1 or RS-232-2 on the
EZlink interface
4. Connect the power to the EZlink interface (do not plug the power into the
wall outlet yet)

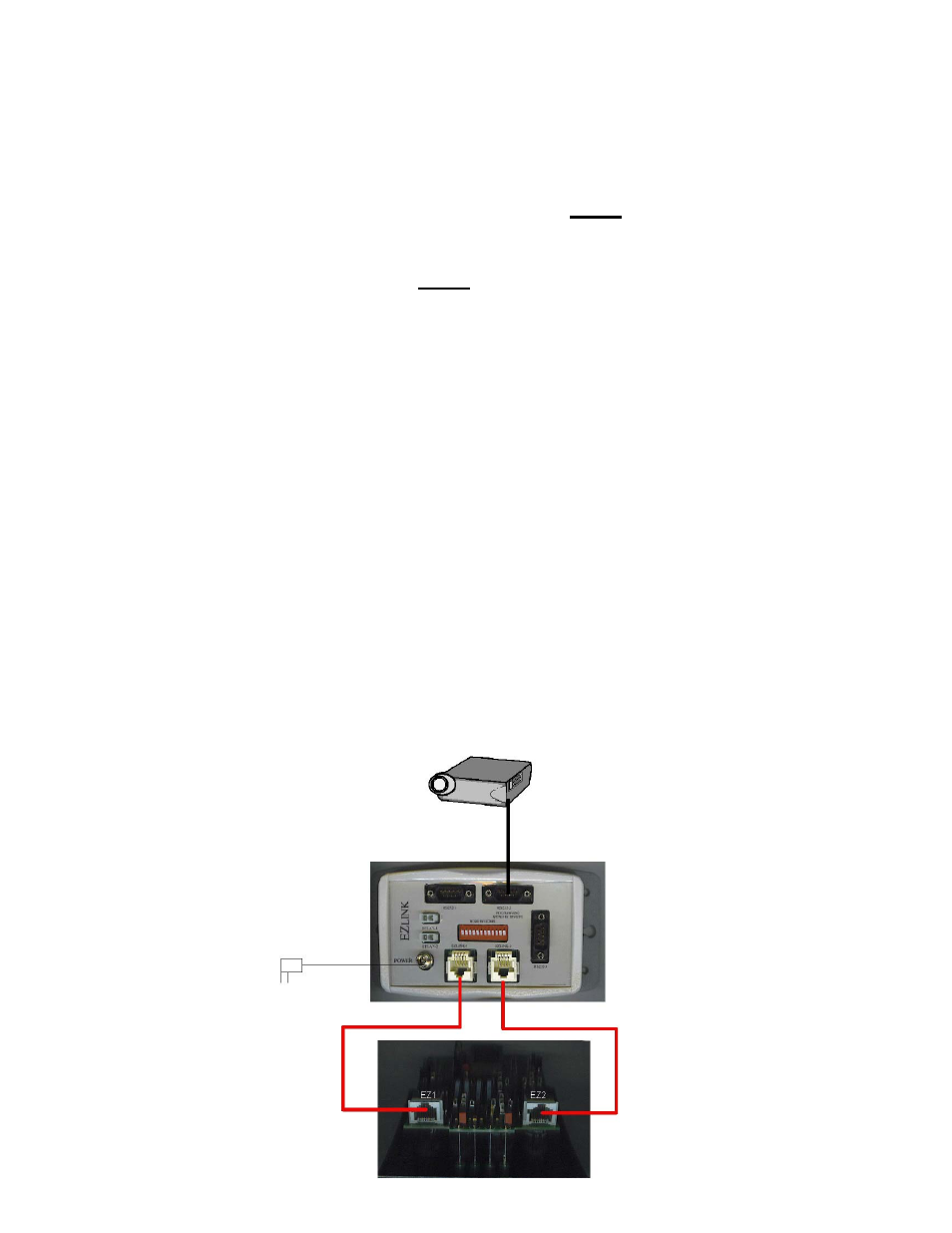

5. Connect the cat5 cables from the interface to the EZ 250 controller. Plug
one cat5 cable into the EZlink 1 port on the interface and then to EZ1 on
the controller. Plug the second cat5 cable into EZlink 2 on the interface
and EZ2 on the controller
6. Set the dip switches on the EZlink interface (see page 25)
7. Plug the power supply into the wall outlet
8. You are ready to control your data projector
