LSI SAS 9300-8e PCI Express to 12Gb/s SAS Host Bus Adapter User Guide 
December 2013
LSI SAS 9300-8e HBA Characteristics
Physical Characteristics
5.4 Physical Characteristics
The LSI 12Gb/s SAS HBA is a 6.6-in. × 2.7-in., low-profile board. The component height on the top and bottom of the
LSI 12Gb/s SAS HBA is in accordance with the PCIe specification. The following figure shows the HBA board layout.

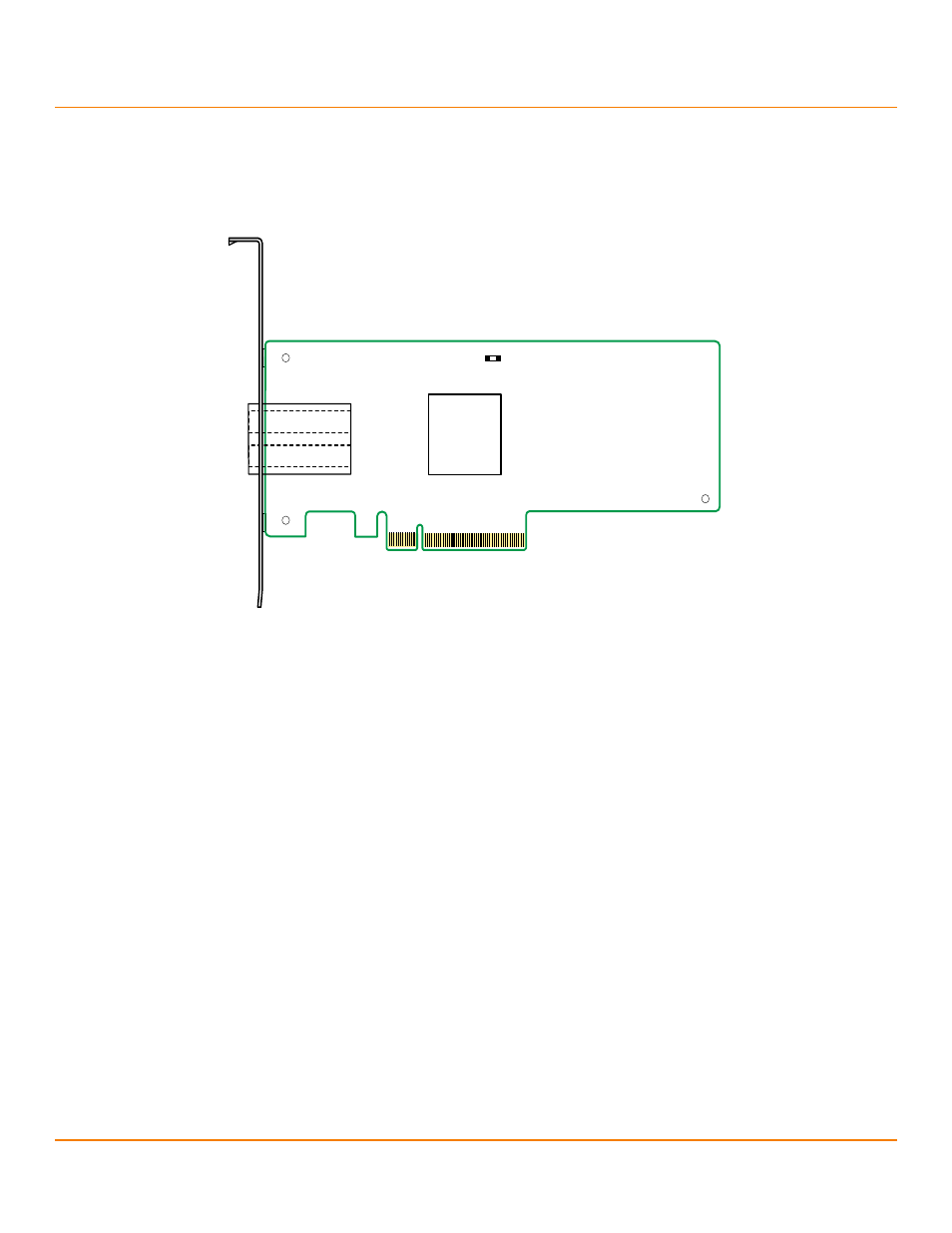

Figure 1 LSI SAS 9300-8e HBA Board Layout
 EC1 – PCIe x8 board edge connector
 CR1 – Heartbeat LED
 J6 – SFF-8644 mini-SAS HD, external, right-angle connectors
5.5 Electrical Characteristics
The maximum power requirements for the LSI SAS 9300-8e HBA under normal operation are as follows:
 PCIe 12.0 V = 1.07 A
 Power values:
— Nominal = 14.5 W
— Worst case = 22.5 W
5.6 Thermal and Atmospheric Limits
The atmospheric limits for the LSI 12Gb/s SAS HBA are as follows:
 Temperature range: 0 °C to 55 °C (32 °F to 131 °F) (dry bulb)
 Relative humidity range: 5% to 90% noncondensing
 Maximum dew point temperature: 32 °C (89.6 °F)
 Minimum airflow: 200 linear feet per minute
The following limits define the storage and transit environment for the LSI 12Gb/s SAS HBA:
 Temperature range: –45 °C to +105 °C (–49 °F to +221 °F) (dry bulb)
 Relative humidity range: 5% to 90% noncondensing
