TECHNICAL SUPPORT
For assistance installing, configuring, or
running the LSI SAS 9212-4i4e HBA, contact
LSI Technical Support:
WARRANTY NOTICE
1.
The warranty does not cover the return
of parts damaged by changing the bracket.
2.
The warranty does not cover ESD
damage to the HBA. HBAs returned without a
bracket mounted on the board will be
returned without return merchandise
authorization (RMA) processing.
E-mail:
Web Site:
www.lsi.com/support/
Avago Technologies, the A logo, LSI, and Storage by LSI are trademarks of Avago Technologies in the United States and/or other countries. All
other brand and product names may be trademarks of their respective companies.
Corporate Headquarters
Website
San Jose, CA
www.lsi.com
Document Number: 42615-01A
Copyright © 2014 Avago Technologies
All Rights Reserved. October 2014.
NOTE:
The shape, size, and locations of the components on your HBA and its bracket might vary
from this illustration. The HBA requires a x8 PCIe slot.
6.
Secure the HBA bracket to the system’s chassis. Install the bracket screw, if applicable, or
engage the system retention mechanism to secure the HBA to the system’s chassis.
7.
Connect internal SAS cables between the HBA and the SAS backplane, any other SATA
or SAS devices in the system chassis, or both. The LSISAS9212-4i4e has four internal 7-pin SATA
connectors. Use a cable with a 7-pin SATA connector on one end (to connect to the HBA) and the
appropriate connector to attach to the SAS or SATA device on the other end.
8.
Replace the cover of the chassis.
9.
Connect external SAS cables between the HBA and the SAS enclosure that contains
SATA or SAS devices. The LSISAS9212-4i4e has one external x4 mini-SAS connector. Use a cable
with an external mini-SAS connector (SFF-8088) on one end (to connect to the HBA) and the
appropriate connector to attach to the SAS or SATA devices on the other end.
10. Reconnect any power cords, and power up the system. Reconnect any power cords and
reconnect any network cables. Turn on the power.
The hardware installation of your LSI 6Gb/s SAS HBA is complete.
DRIVER INSTALLATION
All driver installation instructions are available at
. Select 6Gb/s SAS HBAs >
Product Name > Software Downloads.
3_00131-00

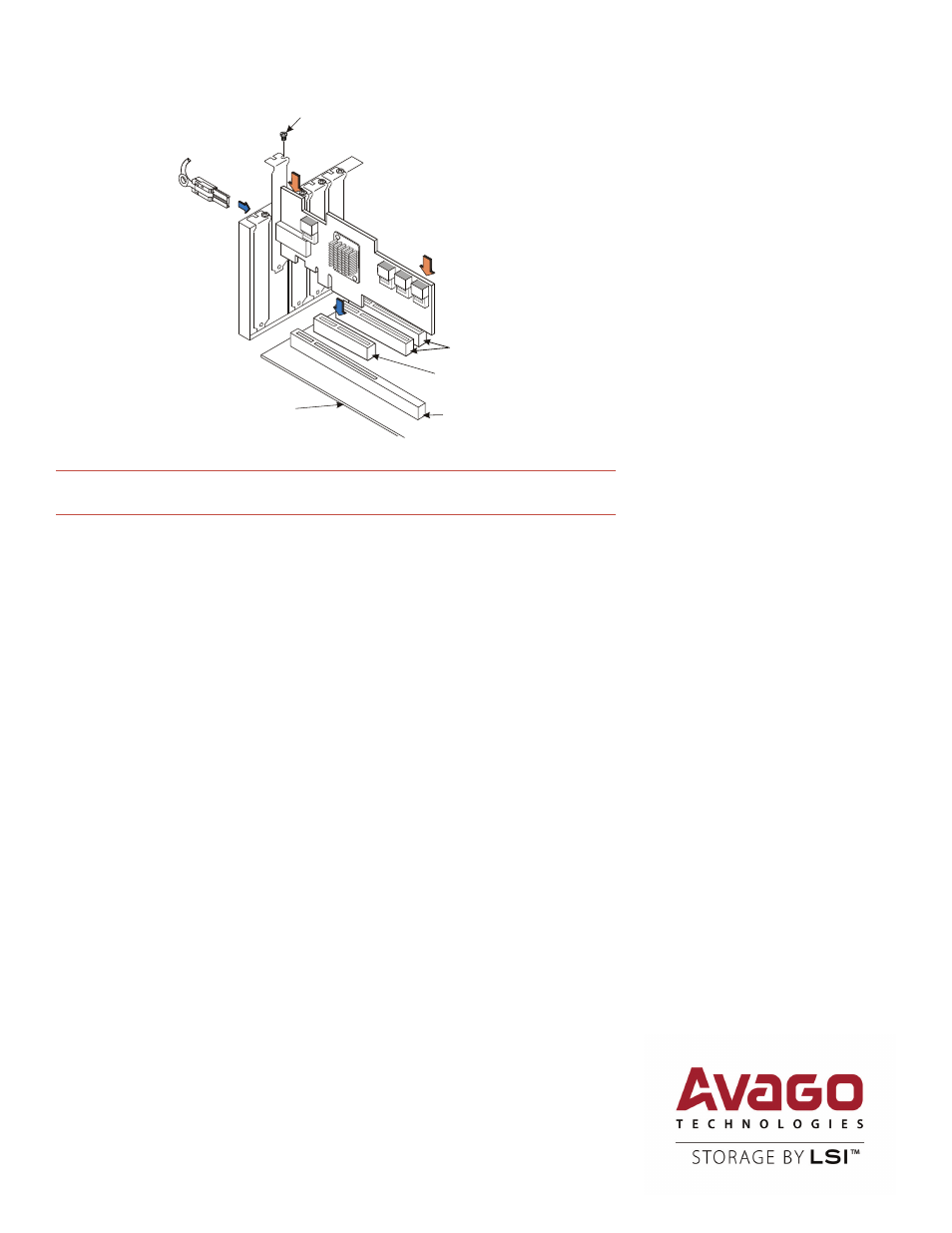

To Drive Enclosure
Mini SAS
External Cable
Connector
Edge of
Mother Board
Bracket Screw
Press
Here
32-bit Slots
(3.3 V Only)
PCI Express
X8 Slot
64-bit Slots
(3.3 V Only)
Press Here
