Part names and functions, Front, Back – Eiki XGA Diamond Series LC-XD25 User Manual
Page 8: Bottom, 8part names and functions, Front bottom
8

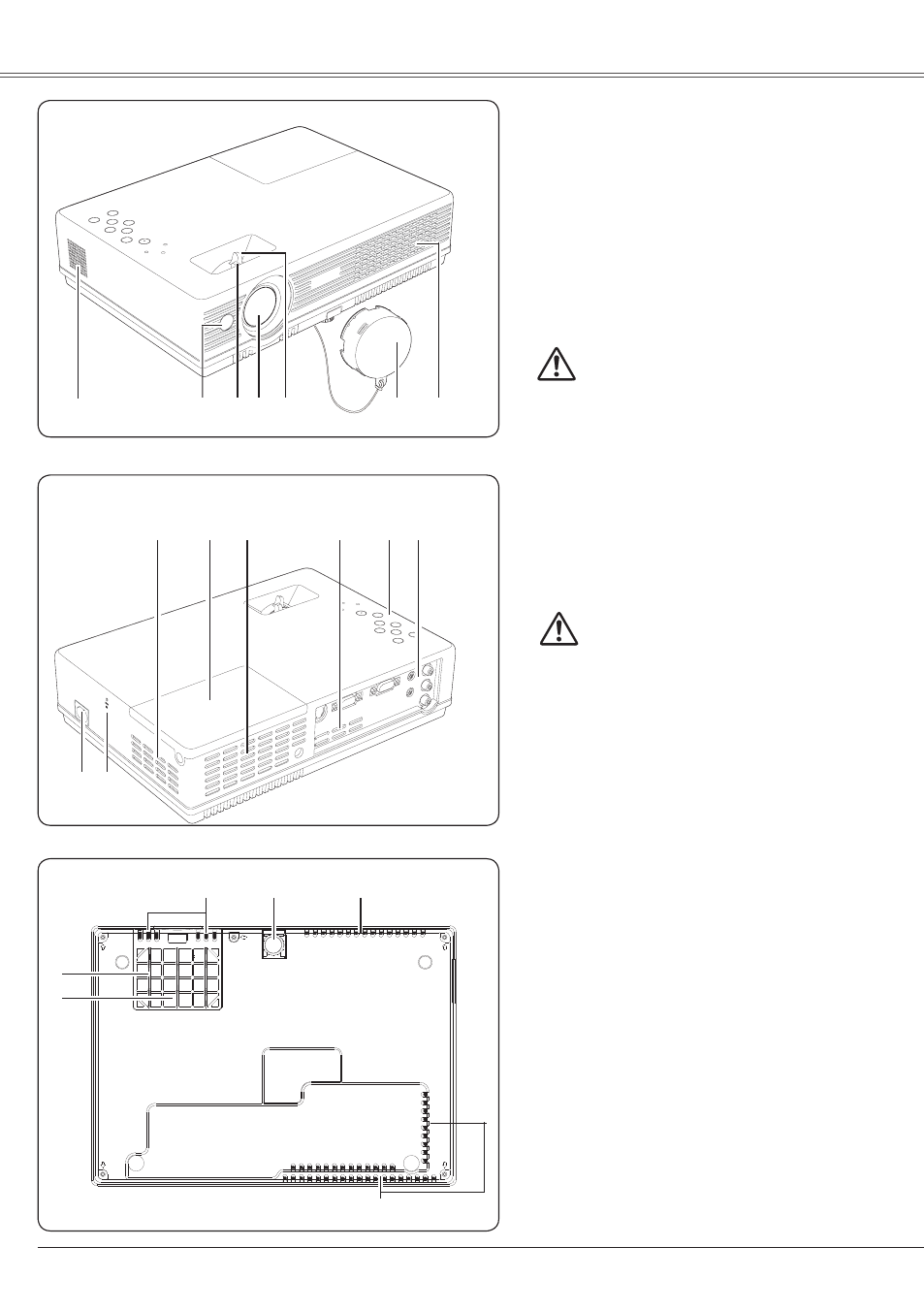

Part Names and Functions
q
t
y
e r
w
Front
Bottom
q
Speaker
w
Infrared Remote Receiver
e
Focus Lever
r
Lens
t
Zoom Lever
y
Lens Cover
(See page 58 for attaching.)
CAUTION
Do not turn on a projector with lens cover
attached. High temperature from light beam
may damage lens cover and result in fire
hazard.
u
Air Intake Vent (front and bottom)
i
Power Cord Connector
o
Exhaust Vent
CAUTION
Hot air is exhausted from the exhaust vent. Do not
put heat-sensitive objects near this side.
!0
Lamp Cover
!1
Top Controls and Indicators
!2
Terminals and Connectors
!3
Adjustable Foot
!4
Air Filter
✽
Kensington Security Slot
This slot is for a Kensington lock used to
deter theft of the projector.
*Kensington is a registered trademark of ACCO
Brands Corporation.
Back
!1
u
!0
o
i ✽
!4
!3
!2
u
o
o
u
o
u
